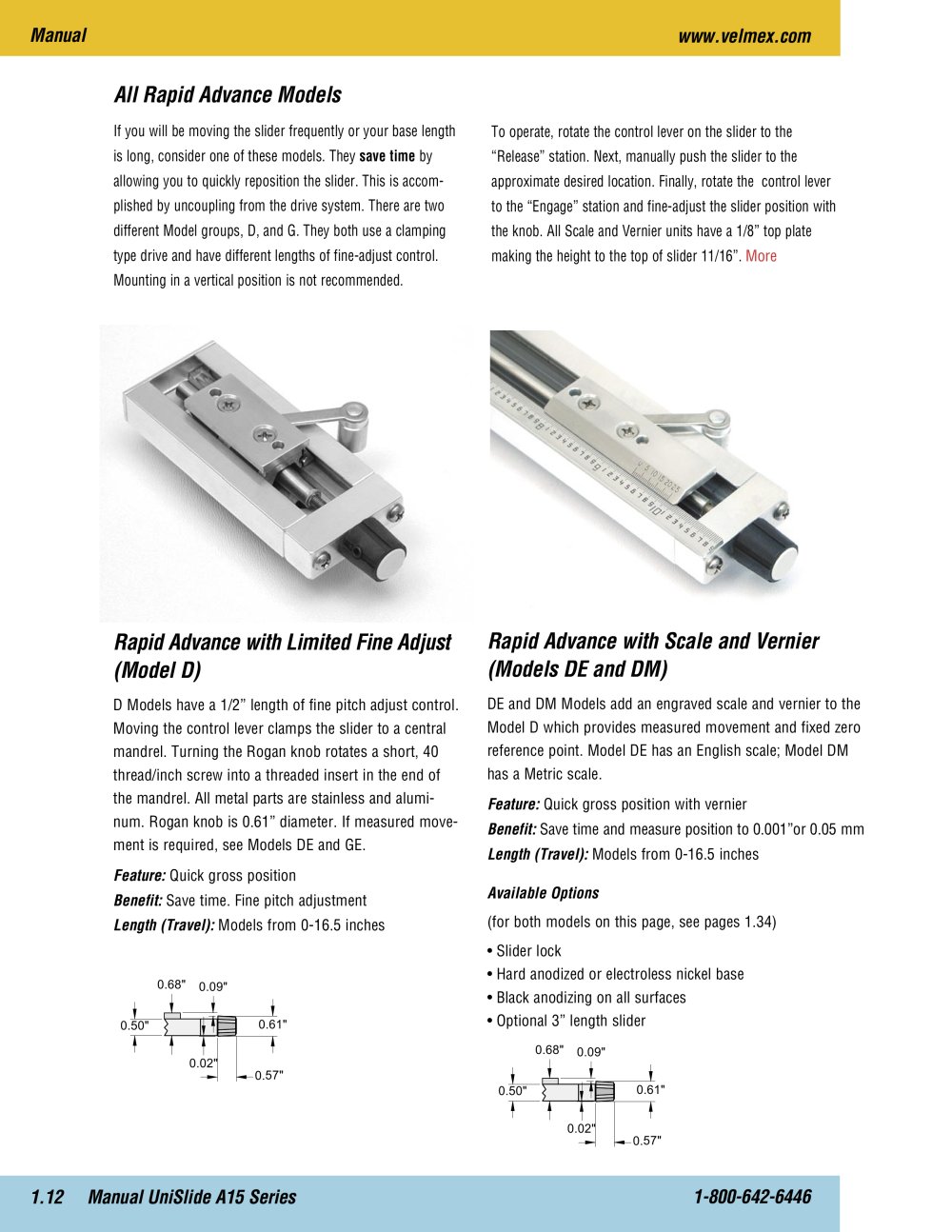

| All Rapid Advance Models If you will be moving the slider frequently or your base length To operate, rotate the control lever on the slider to the Is long, consider one of these models. They save time by "Release" station. Next, manually push the slider to the allowing you to quickly reposition the slider. This Is accom- approximate desired location. Finally, rotate the control lever pllshed by uncoupling from the drive system. There are two to the "Engage" station and fine-adjust the slider position with different Model groups, D, and G. They both use a clamping the knob. All Scale and Vernier units have a 1/8" top plate type drive and have different lengths of fine-adjust control. making the height to the top of slider 11/16". More Mounting In a vertical position Is not recommended. |
