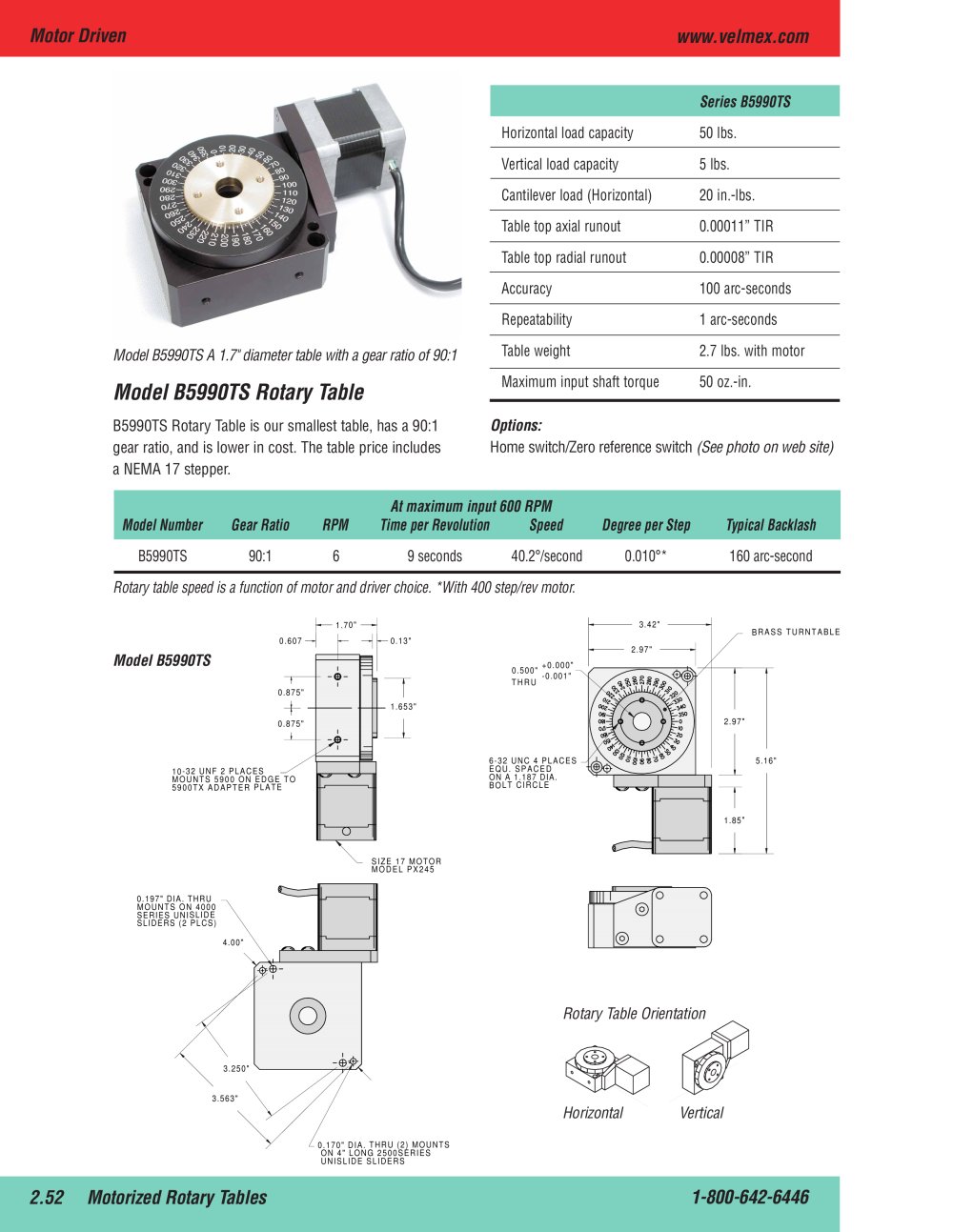

Motor Drivenwww.velmex.com 1-800-642-64462.52 Motorized Rotary Tables

Series B5990TS Horizontal load capacity50 lbs.Vertical load capacity5 lbs. Cantilever load (Horizontal)20 in.-lbs. Table top axial runout0.00011” TIR Table top radial runout0.00008” TIR Accuracy100 arc-seconds Repeatability1 arc-seconds Table weight2.7 lbs. with motor Maximum input shaft torque50 oz.-in. Model B5990TS A 1.7" diameter table with a gear ratio of 90:1

Motor driven worm and gear rotary tables - 9038 Model B5990TS Rotary Table

B5990TS Rotary Table is our smallest table, has a 90:1gear ratio, and is lower in cost. The table price includes a NEMA 17 stepper. Options: Home switch/Zero reference switch (See photo on web site) At maximum input 600 RPM Model Number Gear RatioRPMTime per RevolutionSpeedDegree per StepTypical Backlash B5990TS90:169 seconds40.2°/second0.010°*160 arc-second Rotary table speed is a function of motor and driver choice. *With 400 step/rev motor.

1.70" 3.42" BRASS TURNTABLE 0.607 0.13"

Model B5990TS

+ .13" 17 MOTOR 2.97" THRU THRU 0.875" 1.653" 0.875" .653" 2.97" 6-32 UNC 4 PEQU. SPACE D ON A 1.187 DIBOLT CIRCL 6-32 UNC 4 PLACESEQU. SPACEDON A 1.187 DIA. BOLT CIRCLE 5.16" 10-32 UNF 2 PLACESMOUNTS 5900 ON EDGE TO5900TX ADAPTER PLATE 0.500"- E 1.85" SIZE 17 MOTORMODEL PX245 E L PX245 0.500"-0.001"+0.000" 0.197" DIA. THRU MOUNTS ON 4000 SERIES UNISLIDE SLIDERS (2 PLCS) 4.00" 3.250" 3.563"

HorizontalVerticalRotary Table Orientation

0.170" DIA. THRU (2) MOUNTS ON 4" LONG 2500SERIES UNISLIDE SLIDERS
