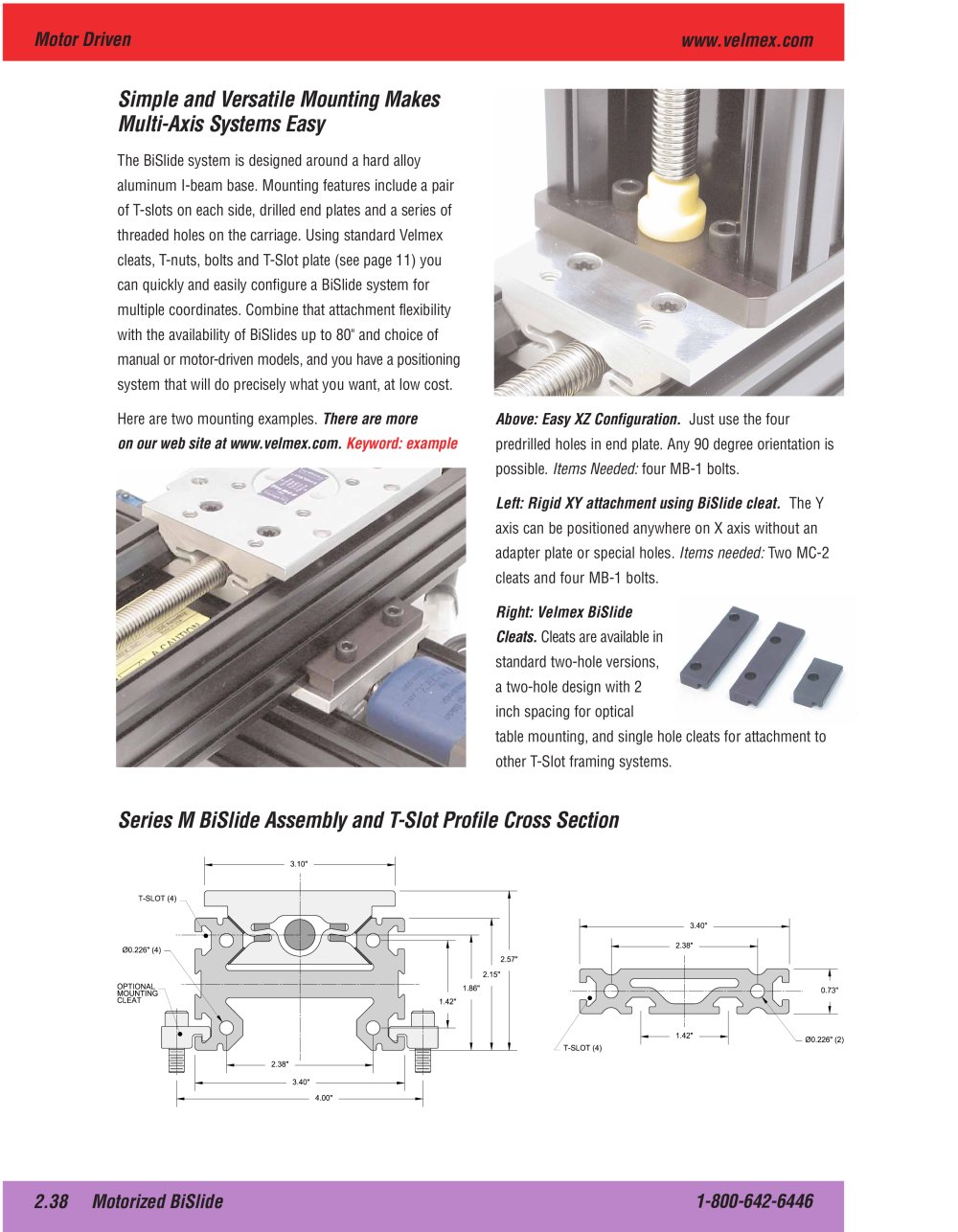

| | | Simple and Versatile Mounting Makes Multi-Axis Systems Easy The BiSlide system is designed around a hard alloy aluminum I-beam base. Mounting features include a pair of T-slots on each side, drilled end plates and a series of threaded holes on the carriage. Using standard Velmex cleats, T-nuts, bolts and T-Slot plate (see page 11) you can quickly and easily configure a BiSlide system for multiple coordinates. Combine that attachment flexibility with the availability of BiSlides up to 80"" and choice of manual or motor-driven models, and you have a positioning system that will do precisely what you want, at low cost. Here are two mounting examples. There are more on our web site at www.velmex.com. Keyword: example | | |
| | | Above: EasyXZConfiguration. Just use the four predrilled holes in end plate. Any 90 degree orientation is possible. Items Needed:four MB-1 bolts. Left: Rigid XY attachment using BiSlide cleat. The Y axis can be positioned anywhere on X axis without an adapter plate or special holes. Items needed: Two MC-2 cleats and four MB-1 bolts. Right: Velmex BiSlide Cleats. Cleats are available in standard two-hole versions, a two-hole design with 2 inch spacing for optical table mounting, and single hole cleats for attachment to other T-Slot framing systems. | | |
