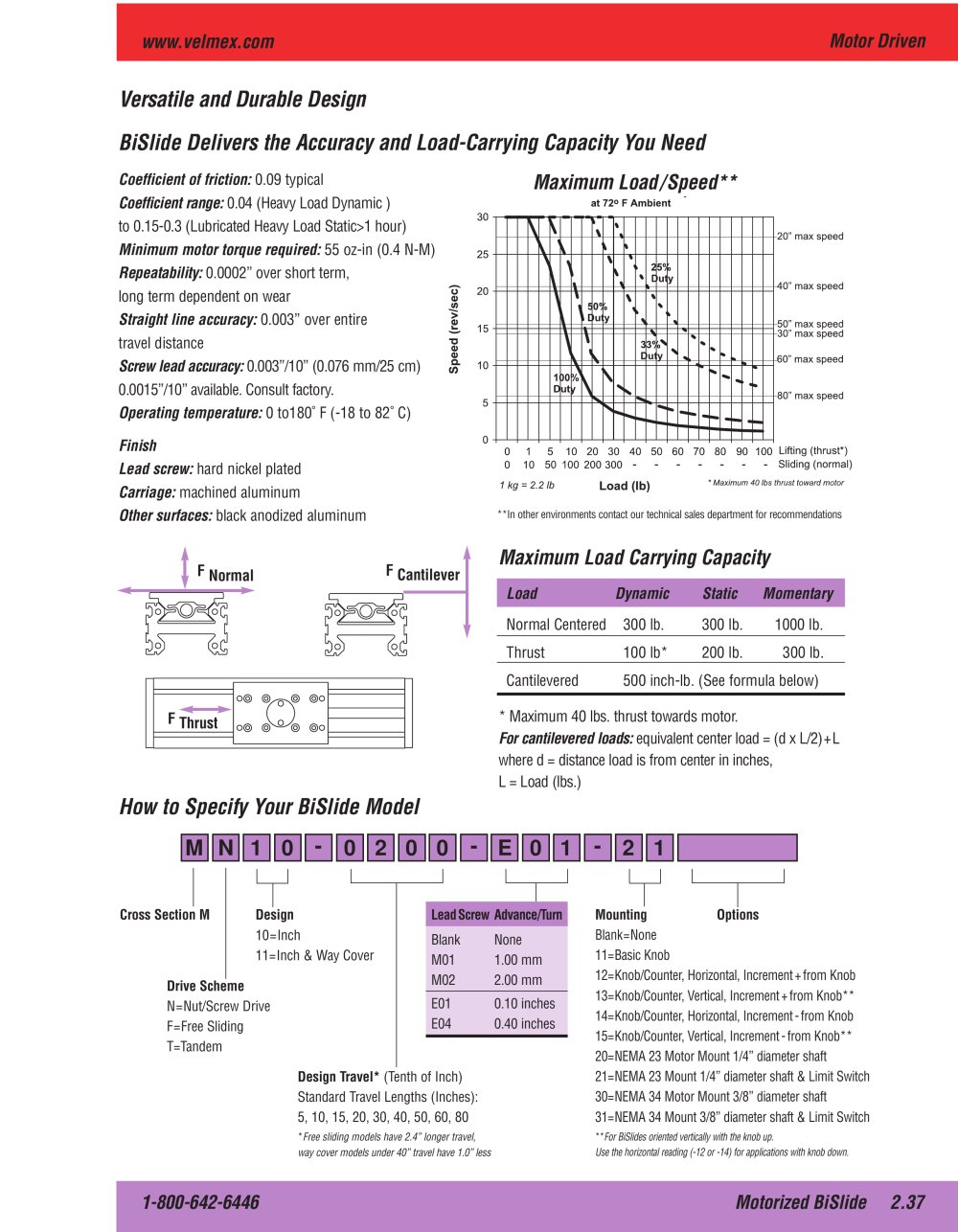

Motor Drivenwww.velmex.com 1-800-642-6446Motorized BiSlide 2.37

Versatile and Durable DesignBiSlide Delivers the Accuracy and Load-Carrying Capacity You Need

Coefficient of friction: 0.09 typical

Maximum Load/Speed**

Coefficient range: 0.04 (Heavy Load Dynamic ) to 0.15-0.3 (Lubricated Heavy Load Static>1 hour) Minimum motor torque required: 55 oz-in (0.4 N-M) Repeatability: 0.0002” over short term, long term dependent on wear Straight line accuracy: 0.003” over entire travel distance Screw lead accuracy: 0.003”/10” (0.076 mm/25 cm) 0.0015”/10” available. Consult factory. Operating temperature: 0 to180Ëš F (-18 to 82Ëš C) FinishLead screw: hard nickel plated Carriage: machined aluminum Other surfaces: black anodized aluminum * Maximum 40 lbs. thrust towards motor.
**In other environments contact our technical sales department for recommendations F NormalF CantileverF Thrust

Maximum Load Carrying Capacity

LoadDynamicStaticMomentary Normal Centered 300 lb.300 lb.1000 lb.Thrust 100 lb* 200 lb.300 lb. Cantilevered 500 inch-lb. (See formula below) For cantilevered loads: equivalent center load = (d x L/2)+Lwhere d = distance load is from center in inches, L = Load (lbs.)

How to Specify Your BiSlide Model M N 1 0 -0 2 0 0 -E 0 1 -2 1

Design 10=Inch11=Inch & Way Cover Cross Section MDrive Scheme LeadScrewAdvance/Turn Mounting Options BlankNoneM011.00 mmM022.00 mmE010.10 inchesE040.40 inches Blank=None11=Basic Knob12=Knob/Counter, Horizontal, Increment+from Knob13=Knob/Counter, Vertical, Increment+from Knob**14=Knob/Counter, Horizontal, Increment-from Knob15=Knob/Counter, Vertical, Increment-from Knob** 20=NEMA 23 Motor Mount 1/4” diameter shaft21=NEMA 23 Mount 1/4” diameter shaft & Limit Switch30=NEMA 34 Motor Mount 3/8” diameter shaft31=NEMA 34 Mount 3/8” diameter shaft & Limit switch N=Nut/Screw Drive F=Free SlidingT=Tandem Design Travel* (Tenth of Inch)Standard Travel Lengths (Inches):5, 10, 15, 20, 30, 40, 50, 60, 80 * Free sliding models have 2.4” longer travel, way cover models under 40” travel have 1.0” less ** For BiSlides oriented vertically with the knob up.Use the horizontal reading (-12 or -14) for applications with knob down.
