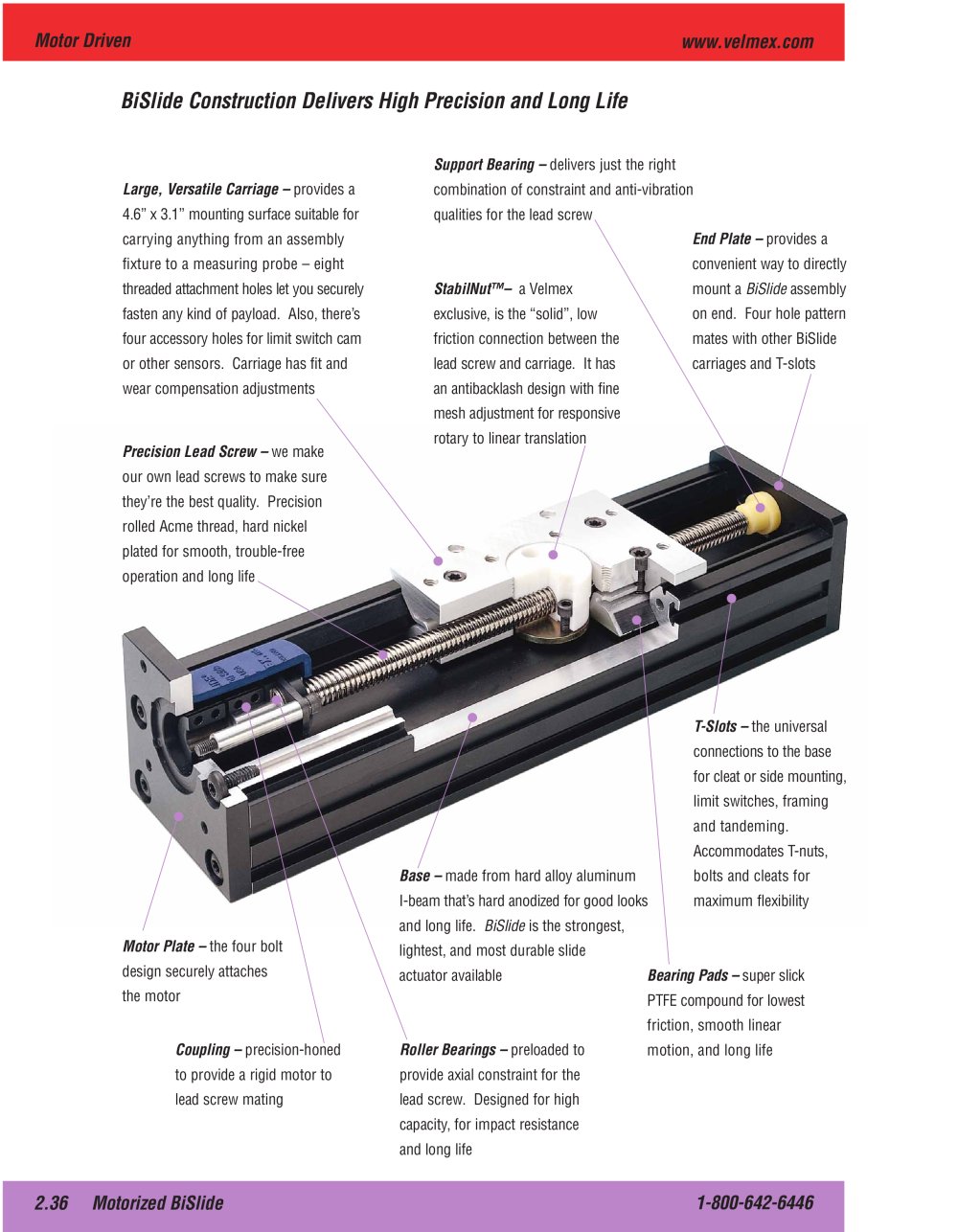

BiSlide Construction Delivers High Precision and Long Life

Support Bearing – delivers just the rightcombination of constraint and anti-vibration qualities for the lead screw Large, Versatile Carriage – provides a4.6” x 3.1” mounting surface suitable for carrying anything from an assembly fixture to a measuring probe – eight threaded attachment holes let you securely fasten any kind of payload. Also, there’s four accessory holes for limit switch cam or other sensors. Carriage has fit and wear compensation adjustments End Plate – provides aconvenient way to directly mount a StabilNut™– a Velmex exclusive, is the “solid”, low friction connection between the lead screw and carriage. It has an antibacklash designwith fine mesh adjustment for responsive rotary to linear translation BiSlide assemblyon end. Four hole pattern mates with other BiSlide carriages and T-slots Precision Lead Screw – we makeour own lead screws to make sure they’re the best quality. Precision rolled Acme thread, hard nickel plated for smooth, trouble-free operation and long life

•??????????

T-Slots – the universalconnections to the base for cleat or side mounting, limit switches, framing and tandeming. Accommodates T-nuts, bolts and cleats for maximum flexibility Base – made from hard alloy aluminum I-beam that’s hard anodized for good looks and long life. BiSlide is the strongest,lightest, and most durable industrial slide actuator available Motor Plate – the four boltdesign securely attaches the motor Bearing Pads – super slickPTFE compound for lowest friction, smooth linear motion, and long life Coupling – precision-honedto provide a rigid motor to lead screw mating Roller bearings – preloaded toprovide axial constraint for the lead screw. Designed for high capacity, for impact resistance and long life
