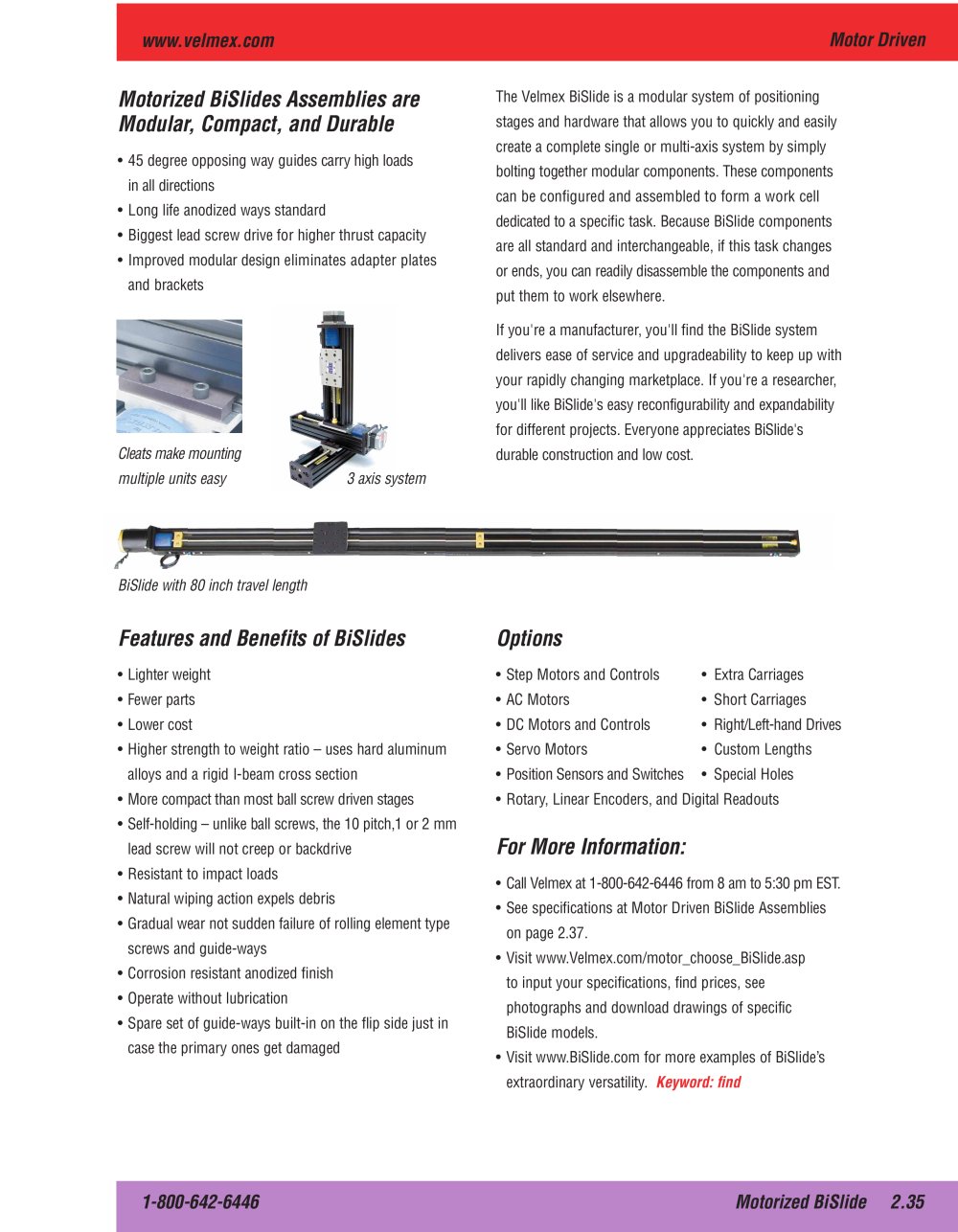

Motor Driven
www.velmex.com
Motorized BiSlides Assemblies are Modular, Compact, and Durable
• 45 degree opposing way industrial guides carry high loads in all directions
• Long life anodized ways standard
• Biggest lead screw drive for higher thrust capacity
• Improved modular design eliminates adapter plates and brackets
The Velmex BiSlide is a modular system of positioning stages and hardware that allows you to quickly and easily create a complete single or multi-axis system by simply bolting together modular components. These components can be configured and assembled to form a work cell dedicated to a specific task. Because BiSlide components are all standard and interchangeable, if this task changes or ends, you can readily disassemble the components and put them to work elsewhere.
If you're a manufacturer, you'll find the BiSlide system delivers ease of service and upgradeability to keep up with your rapidly changing marketplace. If you're a researcher, you'll like BiSlide's easy reconfigurability and expandability for different projects. Everyone appreciates BiSlide's durable construction and low cost.
BiSlide with 80 inch travel length
Features and Benefits of BiSlides
• Lighter weight
• Fewer parts
• Lower cost
• Higher strength to weight ratio - uses hard aluminum alloys and a rigid I-beam cross section
• More compact than most ball screw driven stages
• Self-holding - unlike ball screws, the 10 pitch,1 or 2 mm lead screw will not creep or backdrive
• Resistant to impact loads
• Natural wiping action expels debris
• Gradual wear not sudden failure of rolling element type screws and guide-ways
• Corrosion resistant anodized finish
• Operate without lubrication
• Spare set of guide-ways built-in on the flip side just in case the primary ones get damaged
Options
• Step motors and Controls • Extra Carriages
• Ac motors • Short Carriages
• Industrial dc motors and Controls • Right/Left-hand Drives
• Industrial servo motors • Custom Lengths
• Position sensors and Switches • Special Holes
For More Information:
• Call Velmex at 1-800-642-6446 from 8 am to 5:30 pm EST.
• See specifications at Motor Driven BiSlide Assemblies on page 2.37.
• Visit www.Velmex.com/motor_choose_BiSlide.asp to input your specifications, find prices, see photographs and download drawings of specific BiSlide models.
• Visit www.BiSlide.com for more examples of BiSlide's extraordinary versatility. Keyword: find
1-800-642-6446
Motorized BiSlide 2.35
