Motor Driven
www.velmex.com

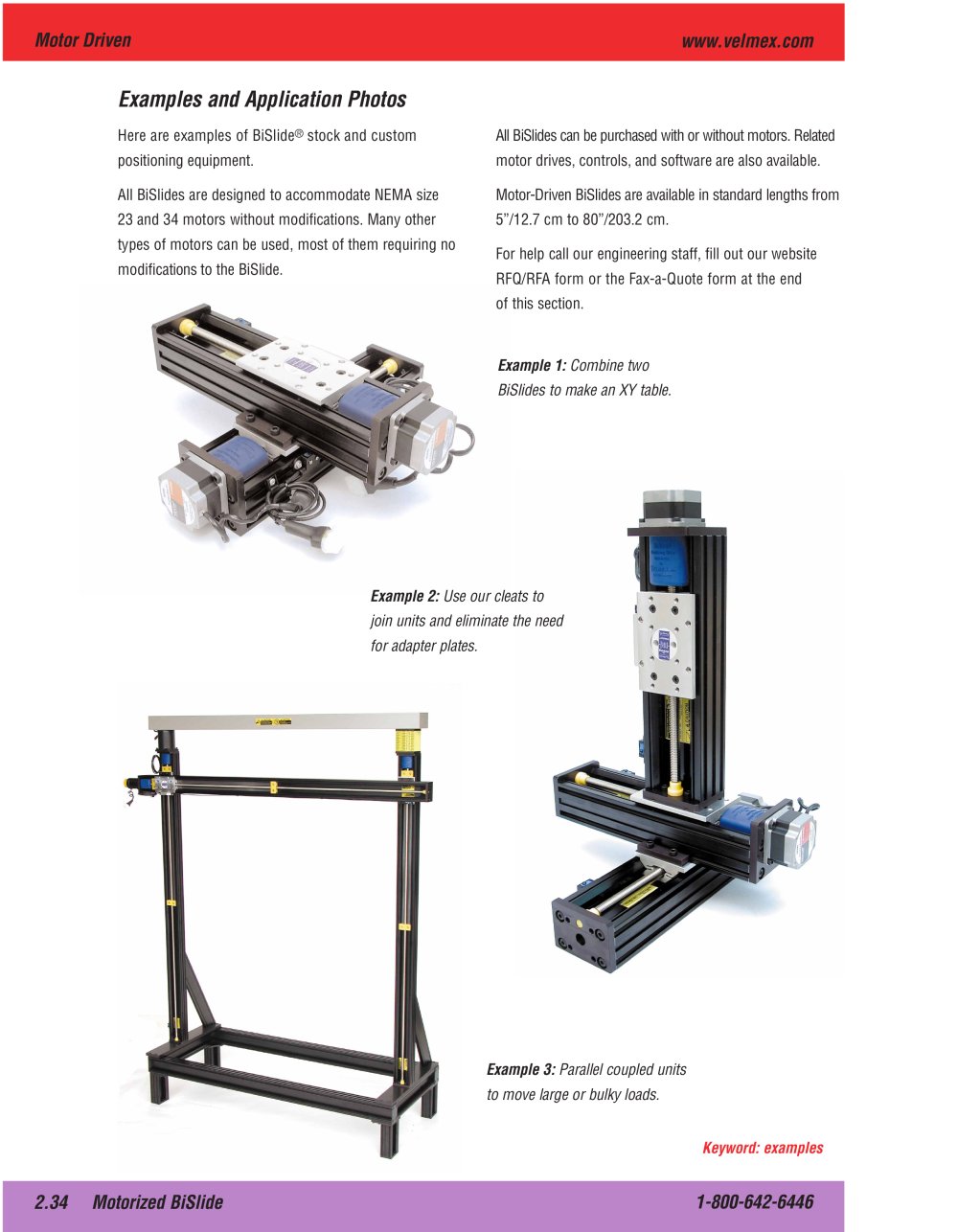

Examples and Application Photos
Here are examples of BiSlide® stock and custom positioning equipment.
All BiSlides are designed to accommodate NEMA size 23 and 34 motors without modifications. Many other types of motors can be used, most of them requiring no modifications to the BiSlide.
All BiSlides can be purchased with or without motors. Related motor drives, controls, and software are also available.
Motor-Driven BiSlides are available in standard lengths from 5"/12.7 cm to 80"/203.2 cm.
For help call our engineering staff, fill out our website RFQ/RFA form or the Fax-a-Quote form at the end of this section.
Example 1: Combine two BiSlides to make an XY table.
Example 2: Use our cleats to join units and eliminate the need for adapter plates.
Example 3: Parallel coupled units to move large or bulky loads.
2.34 Motorized BiSlide
1-800-642-6446
