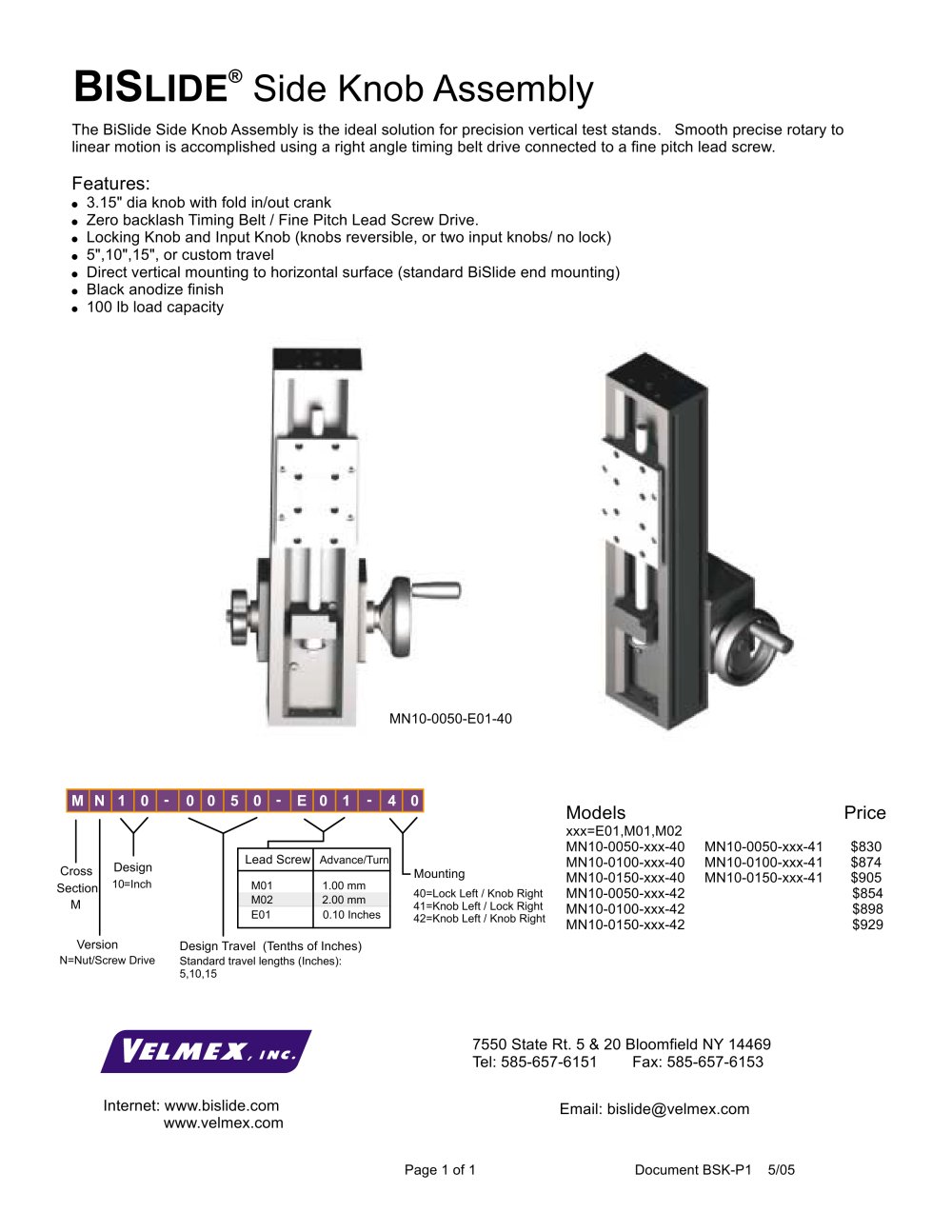

| | | BiSLIDE® Side Knob Assembly | | |
| | | |
| | | The BiSlide Side Knob Assembly is the ideal solution for precision vertical test stands. Smooth precise rotary to linear motion is accomplished using a right angle timing belt drive connected to a fine pitch lead screw. Features: • 3.15" dia knob with fold in/out crank • Zero backlash Timing Belt / Fine Pitch Lead Screw Drive. • Locking knob and Input Knob (knobs reversible, or two input knobs/ no lock) • 5",10",15", or custom travel • Direct vertical mounting to horizontal surface (standard BiSlide end mounting) • Black anodize finish • 100 lb load capacity | | |
| | | |
| | | MN10-0050-E01-40 | | |
| | | |
| | | Models xxx=E01,M01,M02 MN10-0050-xxx-40 MN10-0100-xxx-40 MN10-0150-xxx-40 MN10-0050-xxx-42 MN10-0100-xxx-42 MN10-0150-xxx-42 | | Price $830 $874 $905 $854 $898 $929 | | |
| | | Y Design 10=Inch | | V | | |
| | | |
| | | MN10-0050-xxx-41 MN10-0100-xxx-41 MN10-0150-xxx-41 | | |
| | | | | | | | | | Lead Screw Advance/Turn | | | | M01 | 1.00 mm | | | | M02 | 2.00 mm | | | | E01 | 0.10 Inches | | | | | | | | | |
| | | I- Mounting 40=Lock Left / Knob Right 41=Knob Left / Lock Right 42=Knob Left / Knob Right | | |
| | | Cross Section! M | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | Version N=Nut/Screw Drive | | |
| | | Design Travel (Tenths of Inches) Standard travel lengths (Inches): 5,10,15 | | |
| | | |
| | | |
| | | 7550 State Rt.5&20 Bloomfield NY 14469 Tel: 585-657-6151 Fax: 585-657-6153 | | |
| | | Velai ejc | | |
| | | , INC. | | |
| | | |
| | | |
| | | |
| | | Internet: www.bislide.com www.velmex.com | | |
| | | Email: bislide@velmex.com | | |
| | | |
| | | |
| | | Page1of1 | | Document BSK-P1 5/05 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
