| ACCESSORIES | |||||||||||||||||||||||||||||||||||||||||||||

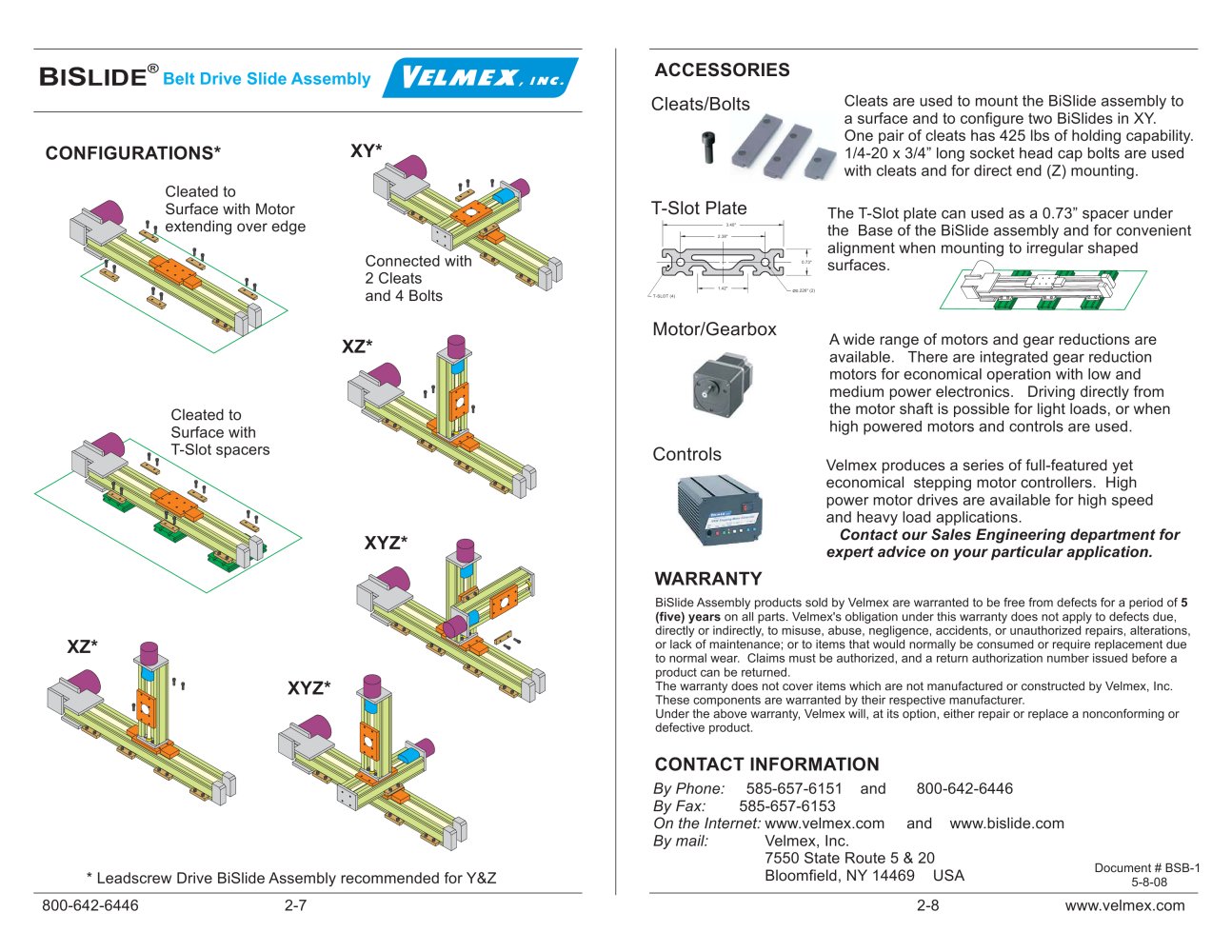

| B IS LI DE Belt Drive Slide Assembly | |||||||||||||||||||||||||||||||||||||||||||||
| Velmex | , IMC. | ||||||||||||||||||||||||||||||||||||||||||||
| Cleats are used to mount the BiSlide assembly to a surface and to configure two BiSlides in XY. One pair of cleats has 425 lbs of holding capability. 1/4-20 x 3/4" long socket head cap bolts are used with cleats and for direct end (Z) mounting. | |||||||||||||||||||||||||||||||||||||||||||||
| Cleats/Bolts | |||||||||||||||||||||||||||||||||||||||||||||
| T-Slot Plate | |||||||||||||||||||||||||||||||||||||||||||||
| The T-Slot plate can used as a 0.73" spacer under the Base of the BiSlide assembly and for convenient alignment when mounting to irregular shaped surfaces. | |||||||||||||||||||||||||||||||||||||||||||||
| Motor/Gearbox | |||||||||||||||||||||||||||||||||||||||||||||
| A wide range of motors and gear reductions are available. There are integrated gear reduction motors for economical operation with low and medium power electronics. Driving directly from the motor shaft is possible for light loads, or when high powered motors and controls are used. Velmex produces a series of full-featured yet economical stepping motor controllers. High power motor drives are available for high speed and heavy load applications. Contact our Sales Engineering department for expert advice on your particular application. | |||||||||||||||||||||||||||||||||||||||||||||
| 9 | |||||||||||||||||||||||||||||||||||||||||||||
| Controls | |||||||||||||||||||||||||||||||||||||||||||||
| WARRANTY | |||||||||||||||||||||||||||||||||||||||||||||
| BiSlide Assembly products sold by Velmex are warranted to be free from defects for a period of 5 (five) years on all parts. Velmex's obligation under this warranty does not apply to defects due, directly or indirectly, to misuse, abuse, negligence, accidents, or unauthorized repairs, alterations, or lack of maintenance; or to items that would normally be consumed or require replacement due to normal wear. Claims must be authorized, and a return authorization number issued before a product can be returned. The warranty does not cover items which are not manufactured or constructed by Velmex, Inc. These components are warranted by their respective manufacturer. Under the above warranty, Velmex will, at its option, either repair or replace a nonconforming or defective product. | |||||||||||||||||||||||||||||||||||||||||||||
| CONTACT INFORMATION By Phone: 585-657-6151 and 800-642-6446 By Fax: 585-657-6153 | |||||||||||||||||||||||||||||||||||||||||||||
| On the Internet: www.velmex.com | and www.bislide.com | ||||||||||||||||||||||||||||||||||||||||||||
| By mail: Velmex, Inc. 7550 State Route 5 & 20 Bloomfield, NY 14469 USA | |||||||||||||||||||||||||||||||||||||||||||||
| Document # BSB-1 5-8-08 | |||||||||||||||||||||||||||||||||||||||||||||
| * Leadscrew Drive BiSlide Assembly recommended for Y&Z | |||||||||||||||||||||||||||||||||||||||||||||
