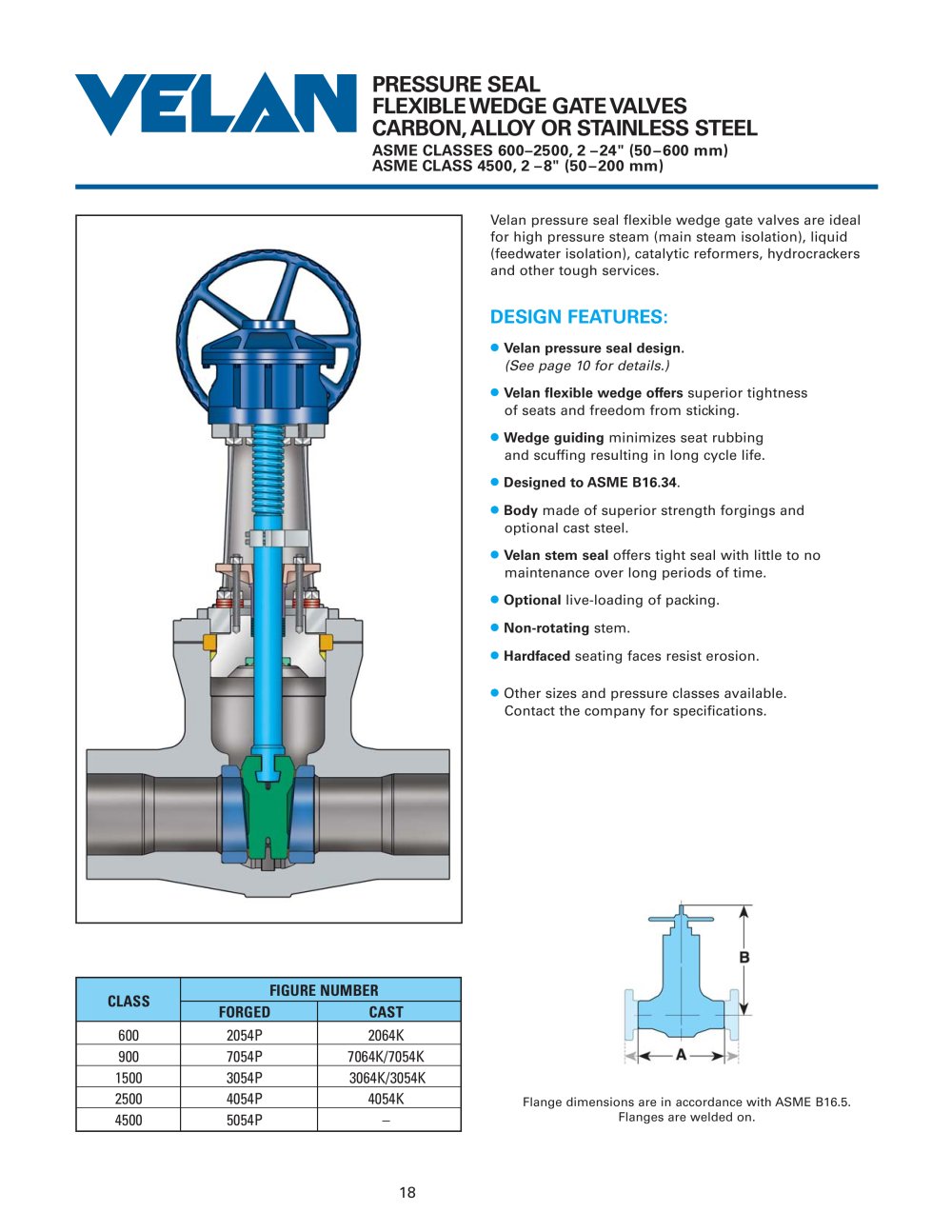

PRESSURE SEAL FLEXIBLE WEDGE GATE VALVES CARBON,ALLOY OR STAINLESS STEEL
ASME CLASSES 600–2500,2–24" (50–600 mm) ASMECLASS 4500,2–8" (50–200 mm)
Velan pressure seal flexible wedge gate valves are ideal for high pressure steam (main steam isolation), liquid (feedwater isolation), catalytic reformers, hydrocrackers and other tough services.DESIGN FEATURES:
ā—¸ Velan pressure seal design. (See page 10 for details.)ā—¸ Velan flexible wedge offers superior tightness of seats and freedom from sticking.
ā—¸ Wedge guiding minimizes seat rubbing and scuffing resulting in long cycle life.
ā—¸ Designed to ASME B16.34 .
ā—¸ Body made of superior strength forgings and optional cast steel.
ā—¸ Velan stem seal offers tight seal with little to nomaintenance over long periods of time.
ā—¸ Optional live-loading of packing.
ā—¸ Non-rotating stem.
ā—¸ Hardfaced seating faces resist erosion.
ā—¸ Other sizes and pressure classes available. Contact the company for specifications.
