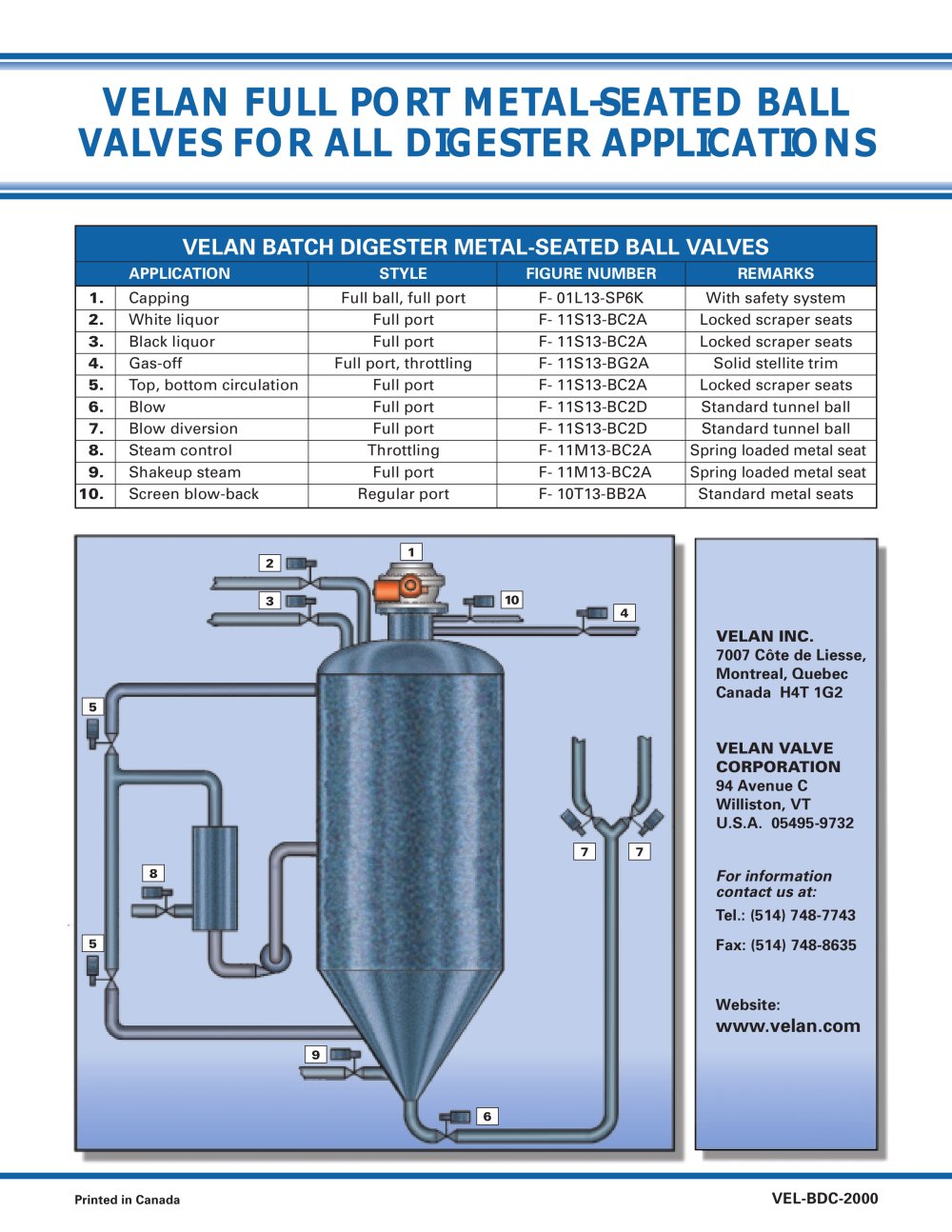

VELAN FULL PORT METAL-SEATED BALLVALVES FOR ALL DIGESTER APPLICATIONS

VELAN BATCH DIGESTER METAL-SEATED BALL VALVES

APPLICATIONSTYLEFIGURE NUMBERREMARKS 1. CappingFull ball, full portF- 01L13-SP6KWith safety system 2. White liquorFull portF- 11S13-BC2ALocked scraper seats 3. Black liquorFull portF- 11S13-BC2ALocked scraper seats 4. Gas-offFull port, throttlingF- 11S13-BG2ASolid stellite trim 5. Top, bottom circulationFull portF- 11S13-BC2ALocked scraper seats 6. BlowFull portF- 11S13-BC2DStandard tunnel ball 7. Blow diversionFull portF- 11S13-BC2DStandard tunnel ball 8. Steam controlThrottlingF- 11M13-BC2A Spring loaded metal seat 9. Shakeup steamFull portF- 11M13-BC2A Spring loaded metal seat 10. Screen blow-backRegular portF- 10T13-BB2AStandard metal seats
1 2 3 10 4 VELAN INC. 7007 Côte de Liesse, Montreal, Quebec Canada H4T 1G2 VELAN VALVECORPORATION 94 Avenue C Williston, VT U.S.A. 05495-9732 For information contact us at:
5 Tel.: (514) 748-7743Fax: (514) 748-8635Website:
7 7 8 5

www.velan.com

9 6 Printed in Canada VEL-BDC-2000
