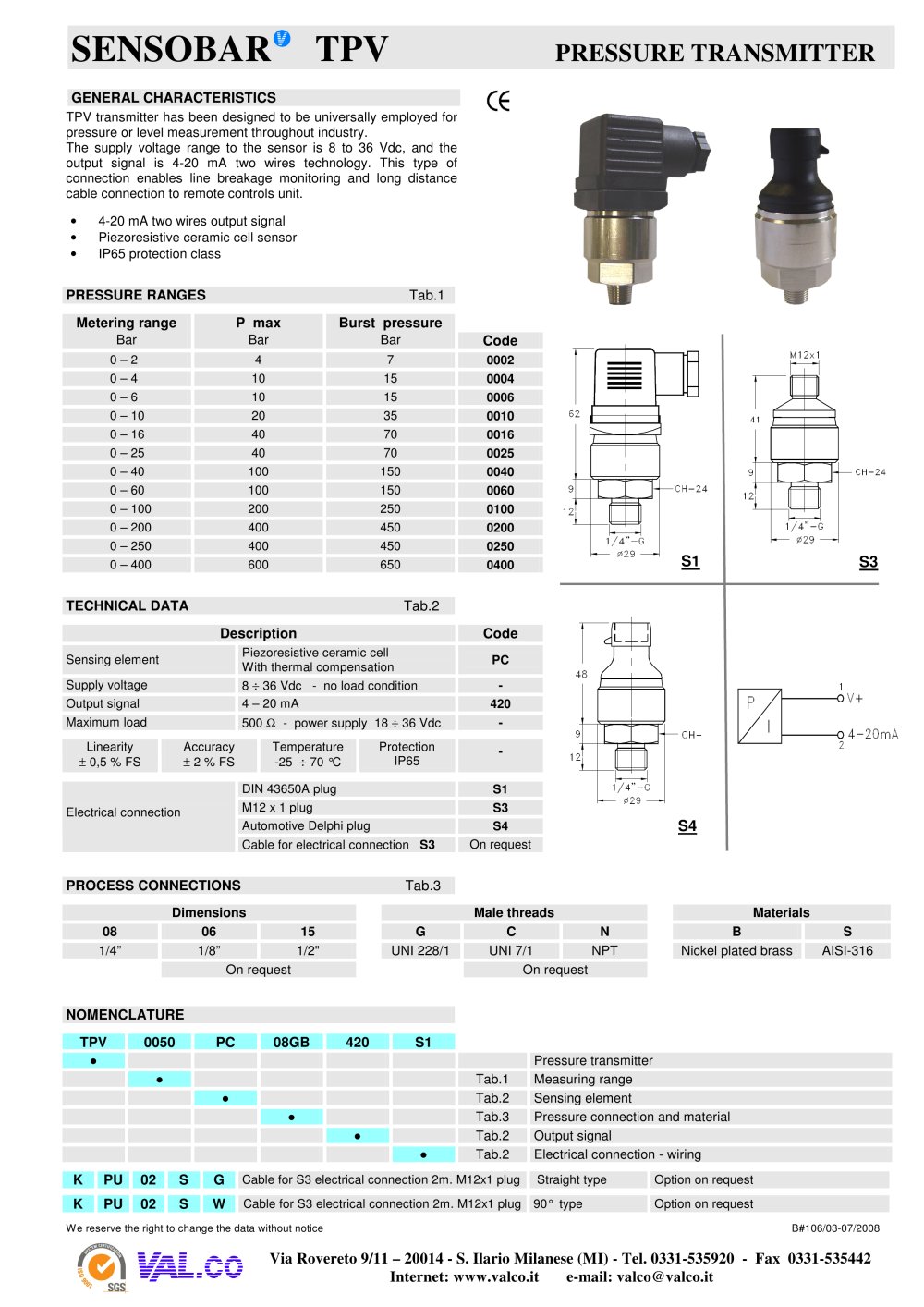

SENSOBAR TPV
PRESSURE TRANSMITTER
GENERAL CHARACTERISTICS
TPV transmitter has been designed to be universally employed for pressure or level measurement throughout industry. The supply voltage range to the sensor is 8 to 36 Vdc, and the output signal is 4-20 mA two wires technology. This type of connection enables line breakage monitoring and long distance cable connection to remote controls unit. • 4-20 mA two wires output signal • Piezoresistive ceramic cell sensor • IP65 protection class
PRESSURE RANGES Tab.1 Metering range P max Burst pressure
Bar Bar Bar
Code
0 – 2 4 7 0002 0 – 4 10 15 0004 0 – 6 10 15 0006 0 – 10 20 35 0010 0 – 16 40 70 0016 0 – 25 40 70 0025 0 – 40 100 150 0040 0 – 60 100 150 0060 0 – 100 200 250 0100 0 – 200 400 450 0200 0 – 250 400 450 0250 0 – 400 600 650 0400S3 S1
TECHNICAL DATA Tab.2 Description Code
Sensing element Piezoresistive ceramic cell With thermal compensation PC Supply voltage 8 ÷ 36 Vdc - no load condition - Output signal 4 – 20 mA 420 Maximum load 500 Ω - power supply 18 ÷ 36 Vdc - Linearity Accuracy Temperature Protection - ± 0,5 % FS ± 2 % FS -25 ÷ 70 °C IP65 DIN 43650A plug S1 Electrical connection M12 x 1 plug S3 Automotive Delphi plug S4S4
Cable for electrical connection S3 On requestPROCESS CONNECTIONS Tab.3
Dimensions Male threads Materials 08 06 15 G C N B S 1/4” 1/8” 1/2" UNI 228/1 UNI 7/1 NPT Nickel plated brass AISI-316 On request On request
NOMENCLATURE TPV 0050 PC 08GB 420 S1
Pressure transmitter Tab.1 Measuring range Tab.2 Sensing element Tab.3 Pressure connection and material Tab.2 Output signal Tab.2 Electrical connection - wiring
K PU 02 S G
Cable for S3 electrical connection 2m. M12x1 plug Straight type Option on requestK PU 02 S W
Cable for S3 electrical connection 2m. M12x1 plug 90° type Option on requestWe reserve the right to change the data without notice B#106/03-07/2008
