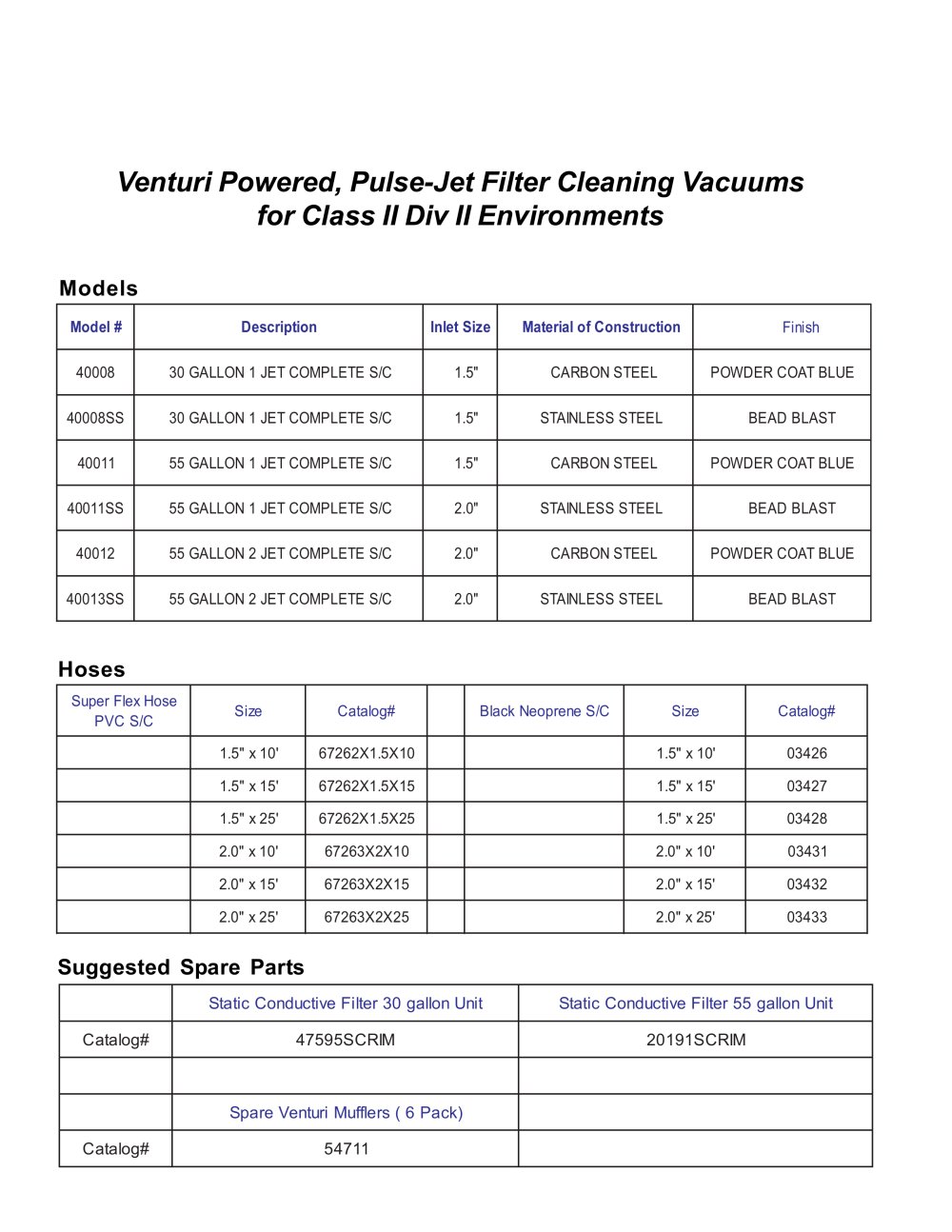

Venturi Powered, Pulse-Jet Filter Cleaning Vacuums for Class II Div II Environments
Models
Model #
Description
Inlet Size
Material of Construction
Finish
40008
30 GALLON 1 JET COMPLETE S/C
1.5"
CARBON STEEL
POWDER COAT BLUE
40008SS
30 GALLON 1 JET COMPLETE S/C
1.5"
STAINLESS STEEL
BEAD BLAST
40011
55 GALLON 1 JET COMPLETE S/C
1.5"
CARBON STEEL
POWDER COAT BLUE
40011SS
55 GALLON 1 JET COMPLETE S/C
2.0"
STAINLESS STEEL
BEAD BLAST
40012
55 GALLON 2 JET COMPLETE S/C
2.0"
CARBON STEEL
POWDER COATBLUE
40013SS
55 GALLON 2 JET COMPLETE S/C
2.0"
STAINLESS STEEL
BEAD BLAST
Hoses
Super Flex Hose PVC S/C
Size
Catalog#
Black Neoprene S/C
Catalog#
1.5" x 10'
67262X1.5X10
1.5" x 10'
03426
1.5" x 15'
67262X1.5X15
1.5" x 15'
03427
15" x 25'
67262X1.5X25
1.5" x 25'
03428
2.0" x 10'
67263X2X10
2.0" x 10'
03431
2 0"x15'
67263X2X15
2.0" x 15'
03432
2.0"x25'
67263X2X25
2.0" x 25'
03433
Suggested Spare Parts
Static Conductive Filter 30 gallon Unit
Static Conductive Filter 55 gallon Unit
Catalog#
47595SCRIM
20191SCRIM
Spare Venturi Mufflers ( 6 Pack)
Catalog#
54711
