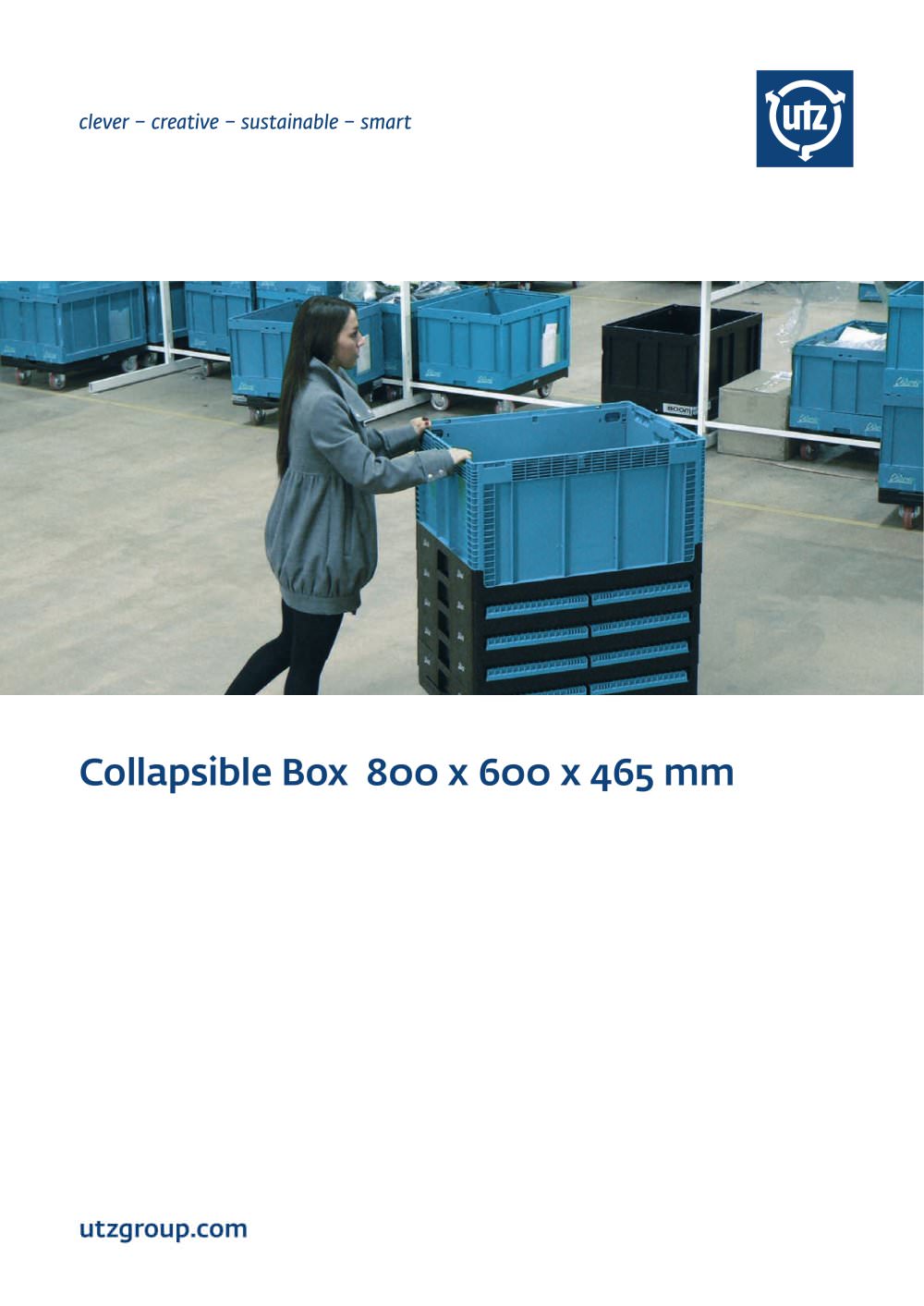

Collapsible container 800x600 mm - UTZ - #1

Text version of the page

Materials Handling in Plastic Georg Utz AG • CH-5620 Bremgarten Phone 056 648 77 11 • Fax 056 648 79 12 info@ch.georgutz.com • www.georgutz.com Collapsible Container 800x600x465 mm Collapsible Container 800x600x465 mm Internal dimensions base: 760x560x450 mm Collapsed height: 120 mm Stacking height: 452 mm Usable internal height in stack: 425 mm Volume: 185 litres Weight: 6.9 kg Order no. Lid Base Label holder Handles 34-8646-100-0 without with ribbing without 2 shell handles 34-8646-101-0 without with ribbing with 2 handle slots 34-8646-150-0 with with ribbing without 2 shell handles 34-8646-151-0 with with ribbing with 2 handle slots Containers with reinforced base: Order no. suffix -V Collapsible Frame Order no. Lid Label holder Handles 34-8646-200-0 without without 2 shell handles 34-8646-201-0 without with 2 handle slots • new ergonomic locking latches • diverse ergonomic handles • lid sealable with a newly developed seal (conventional tape seal may also be used) • slip lids may now also be sealed • lid hinges offer better protection against access to the inside • securely stackable via recesses in the upper deck • short sides are locked upon opening, so that unintended collapsing is excluded • possibility to attach castors at the lower part • compatible to RAKO and the old collapsible container • label holder mountable at 6 positions • base reinforcement with welded-on plate Upon request, the following options can be additionally realised: • sealable side-flap on the longitudinal side • welded longitudinal sides • runners at the lower part
