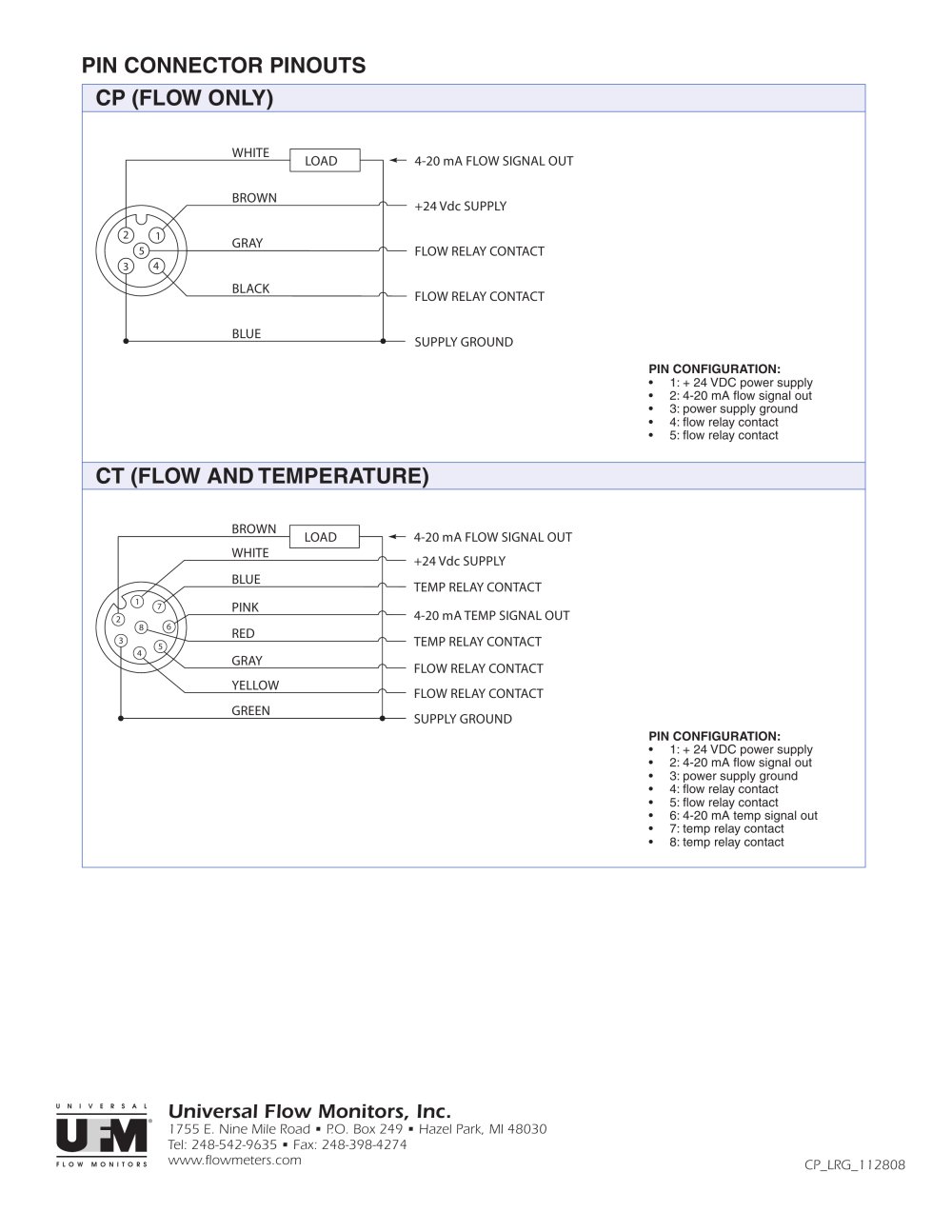

PIN CONNECTOR PINOUTS CP (FLOW ONLY)

BROWNWHITEGRAYBLACKBLUE LOAD+24 Vdc SUPPLYSUPPLY GROUNDFLOW RELAY CONTACTFLOW RELAY CONTACT4-20 mA FLOW SIGNAL OUT

35421 PIN CONFIGURATION: • 1: + 24 VDC power supply • 2: 4-20 mA fl ow signal out • 3: power supply ground • 4: fl ow relay contact • 5: fl ow relay contact

CT (FLOW AND TEMPERATURE)

BLUEBROWNREDGRAYGREEN LOADTEMP RELAY CONTACTWHITE+24 Vdc SUPPLY SUPPLY GROUNDTEMP RELAY CONTACTPINK4-20 mA TEMP SIGNAL OUTFLOW RELAY CONTACTYELLOWFLOW RELAY CONTACT 4-20 mA FLOW SIGNAL OUT

38456721 PIN CONFIGURATION: • 1: + 24 VDC power supply • 2: 4-20 mA fl ow signal out • 3: power supply ground • 4: fl ow relay contact • 5: fl ow relay contact • 6: 4-20 mA temp signal out • 7: temp relay contact • 8: temp relay contact
