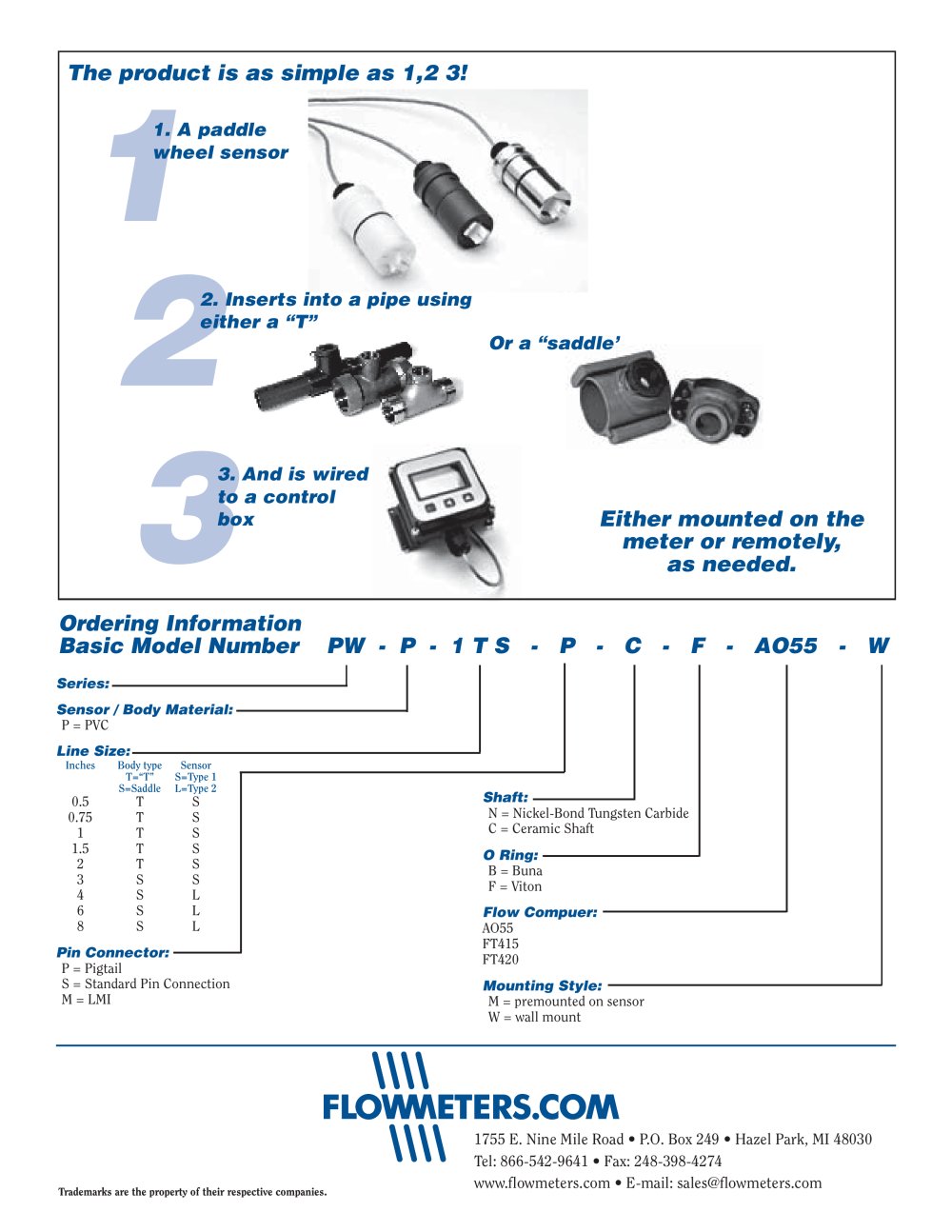

The product is as simple as 1,2 3! Either mounted on themeter or remotely,as needed.

Flow Sensor - 12619 1

1. A paddlewheel sensor

2

2. Inserts into a pipe usingeither a “T” Or a “saddle’

Ordering InformationBasic Model Number PW - P - 1 T S - P - C - F - AO55 - W

3

3. And is wiredto a controlbox

Series:Sensor / Body Material: P = PVC Line Size:
InchesBody typeSensorT=“T”S=Type 1S=SaddleL=Type 2 0.5TS0.75TS1TS1.5TS2TS3SS4SL6SL 8SL Shaft: N = Nickel-Bond Tungsten CarbideC = Ceramic Shaft O Ring: B = BunaF = Viton Flow Compuer: AO55 FT415FT420 Pin Connector: P = PigtailS = Standard Pin ConnectionM = LMI Mounting Style: M = premounted on sensorW = wall mount

1755 E. Nine Mile Road • P.O. Box 249 • Hazel Park, MI 48030Tel: 866-542-9641 • Fax: 248-398-4274www.flowmeters.com • E-mail: sales@flowmeters.com
