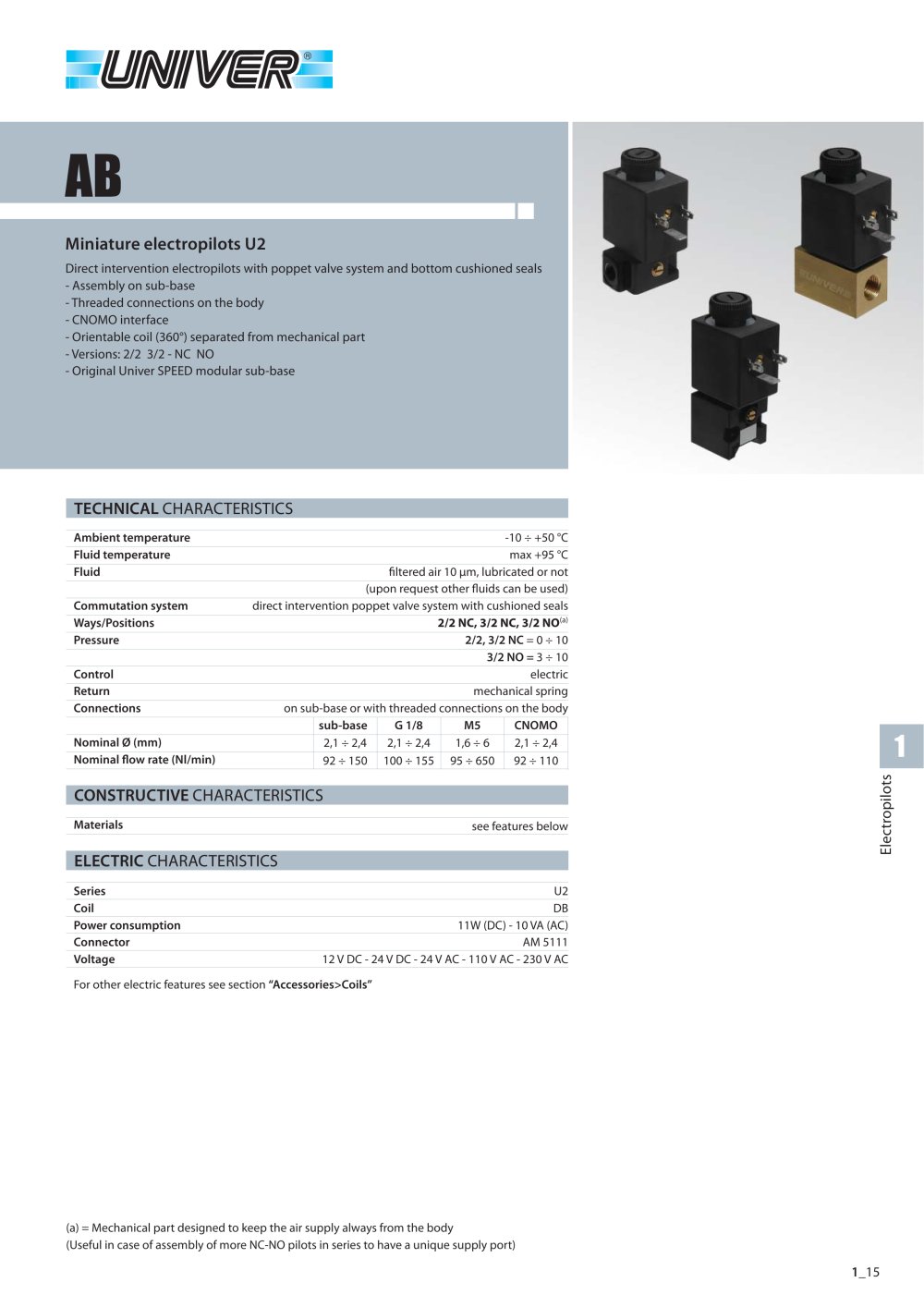

AB_EN_ok.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:5.00pt "Arial Black", sans-serif; } .font6 { font:8.00pt "Arial Black", sans-serif; } .font7 { font:33.00pt "Impact", sans-serif; } AB Miniature electropilots U2 Direct intervention electropilots with poppet valve system and bottom cushioned seals - Assembly on sub-base - Threaded connections on the body - CNOMO interface - Orientable coil (360°) separated from mechanical part - Versions: 2/2 3/2 - NC NO - Original Univer SPEED modular sub-base TECHNICAL CHARACTERISTICS Ambient temperature -10 4- +50 °C Fluid temperature max +95 °C Fluid filtered air 10 |jm, lubricated or not (upon request other fluids can be used) Commutation system direct intervention poppet valve system with cushioned seals Ways/Positions 2/2 NC, 3/2 NC, 3/2 NO(a) Pressure 2/2, 3/2 NC = 0 4 10 3/2 NO = 3 4 10 Control electric Return mechanical spring Connections on sub-base or with threaded connections on the body sub-base G 1/8 M5 CNOMO Nominal 0 (mm) 2,1 4 2,4 2,1 4 2,4 1,6 4 6 2,1 4 2,4 Nominal flow rate (Nl/min) 92 4 150 1004155 95 4 650 92 4 110 CONSTRUCTIVE CHARACTERISTICS see features below on _g ' o i *-> u LU Materials ELECTRIC CHARACTERISTICS Series U2 Coil DB Power consumption 11W (DC) - 10 VA (AC) Connector AM 5111 Voltage 12 V DC - 24 V DC - 24 V AC - 110 V AC - 230 V AC For other electric features see section "Accessories>Coils" (a) = Mechanical part designed to keep the air supply always from the body (Useful in case of assembly of more NC-NO pilots in series to have a unique supply port) 1_15
