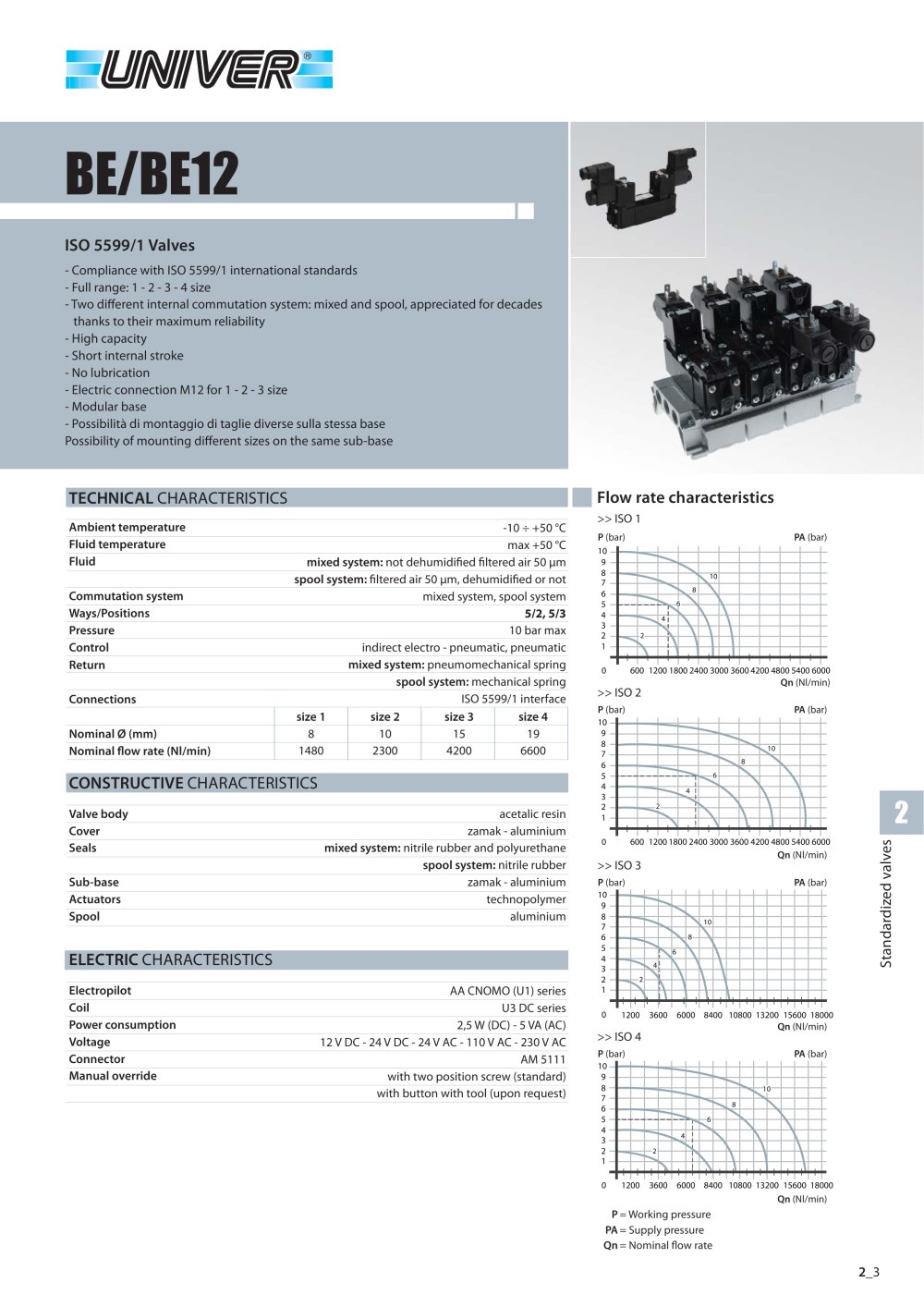

2 Standardized valves 2_3 TECHNICAL CHARACTERISTICS -10 ÷ +50 °C max +50 °C mixed system: not dehumidifi ed fi ltered air 50 ìm spool system: fi ltered air 50 ìm, dehumidifi ed or not mixed system, spool system 5/2, 5/3 10 bar max indirect electro - pneumatic, pneumatic mixed system: pneumomechanical spring spool system: mechanical spring ISO 5599/1 interface Ambient temperature Fluid temperature Fluid Commutation system Ways/Positions Pressure Control Return Connections Nominal Ø (mm) Nominal fl ow rate (Nl/min) acetalic resin zamak - aluminium mixed system: nitrile rubber and polyurethane spool system: nitrile rubber zamak - aluminium technopolymer aluminium ELECTRIC CHARACTERISTICS Electropilot Coil Power consumption Voltage Connector Manual override AA CNOMO (U1) series U3 DC series 2,5 W (DC) - 5 VA (AC) 12 V DC - 24 V DC - 24 V AC - 110 V AC - 230 V AC AM 5111 with two position screw (standard) with button with tool (upon request) CONSTRUCTIVE CHARACTERISTICS Valve body Cover Seals Sub-base Actuators Spool Flow rate characteristics P (bar) Qn (Nl/min) PA (bar) >> ISO 1 P (bar) Qn (Nl/min) PA (bar) >> ISO 2 0 600 1200 1800 2400 3000 3600 4200 4800 5400 6000 1 2 3 4 5 6 7 8 9 10 4 8 10 2 6 0 600 1200 1800 2400 3000 3600 1 2 3 4 5 6 7 8 9 10 4 8 10 6 2 4200 4800 5400 6000 P (bar) Qn (Nl/min) PA (bar) >> ISO 3 0 1 2 3 4 5 6 7 8 9 10 10 1200 3600 6000 8400 10800 13200 15600 18000 8 6 4 2 P (bar) Qn (Nl/min) PA (bar) >> ISO 4 0 1200 3600 6000 8400 10800 13200 15600 18000 1 2 3 4 5 6 7 8 9 10 4 8 2 6 10 BE/BE12 - Compliance with ISO 5599/1 international standards - Full range: 1 - 2 - 3 - 4 size - Two diff erent internal commutation system: mixed and spool, appreciated for decades thanks to their maximum reliability - High capacity - Short internal stroke - No lubrication - Electric connection M12 for 1 - 2 - 3 size - Modular base - Possibilità di montaggio di taglie diverse sulla stessa base Possibility of mounting diff erent sizes on the same sub-base ISO 5599/1 Valves size 1 8 1480 size 2 10 2300 size 3 15 4200 size 4 19 6600 = Working pressure = Supply pressure = Nominal fl ow rate P PA Qn
Open the catalog to page 1BE ISO 5599/1 Standard UNIVER GROUP BE12 2_4 ISO 5599/1 Standard The ISO standard for pneumatic valves is accepted by industry and by the majority of major pneumatic valve manufactures throughout the world. The choice of valves according to ISO standard means to be at the technical forefront and to guarantee the user the interchangeability of both the valve body and the electromagnetic part ISO 1 ISO 2 ISO 3 ISO 4 A B D F H K L L1 L2 M P r S T 16,5 22 29 36,5 8,5 10 13 15,5 2,5 3 4 4 9 12 16 20 M5 M6 M8 M8 32,5 40,5 53 64,5 32,5 40,5 53 77,5 65 81 106 142 38 50 64 74 43 56 71 82 3 3 4 4 4,5...
Open the catalog to page 2BE12 ISO 5599/1 Valves with M12 male connector UNIVER GROUP 2 Standardized valves 2_7 SINGLE IMPULSE - MIXED SYSTEM Symbol Single/double electric impulse 5/2 The use of pneumatic component in the automotive fi eld, coupled with electric components, led to the development of a traditional ISO valve with electric connector M12 placed in central position, for both valves with single as well as double electric contol. SINGLE IMPULSE - SPOOL SYSTEM 5/2 DOUBLE IMPULSE - MIXED SYSTEM DOUBLE IMPULSE - SPOOL SYSTEM 5/3 o.c. 5/3 c.c. 5/2 5/2 5/3 p.c. Control electric amplifi ed electric amplifi ed...
Open the catalog to page 5BF Side connections sub-bases UNIVER GROUP 2_8 ISO 1 - Single sub-base, side connections BF-1060 BF-1061 G1/8 G1/4 in line connections in line connections zamak zamak 0,250 0,230 Notes Connection Material Weight Part no. Kg = Supply port = Use 1 2 - 4 3 - 5 12 - 14 = Exhaust = Pilots ISO 2 - Single sub-base, side connections BF-1150 BF-1151 zamak zamak G1/4 G3/8 0,640 0,650 in line connections in line connections = Supply port = Use 1 2 - 4 3 - 5 12 - 14 = Exhaust = Pilots ISO 3 - Single sub-base, side connections in line connections in line connections BF-3060 BF-3061 aluminium aluminium...
Open the catalog to page 6BF Dorsal connections sub-bases UNIVER GROUP 2 Standardized valves 2_9 ISO 1 - Single modular or Manifold sub-base, dorsal connections, separate exhausts BF-1062 BF-1063 zamak zamak 0,350 0,330 G1/8 G1/4 dorsal connections dorsal connections Single assembly: close side ports (G1/8 - G1/4) Manifold assembly with common inlet: close dorsal connections n.1 With incorporated screws and seal = Supply port = Use 1 2 - 4 3 - 5 12 - 14 = Exhaust = Pilots ISO 2 - Single sub-base, dorsal connections dorsal connections dorsal connections BF-1152 BF-1153 zamak zamak 0,640 0,650 G1/4 G3/8 = Supply port...
Open the catalog to page 7BF Manifold sub-bases UNIVER GROUP 2_10 = Supply port = Use = Exhaust 1 2 - 4 3 - 5 12 - 14 12* - 14* = Pilots = Side pilots A ISO 4762 BF-1085 ISO 1 - Closing plate for sub-base 1 material: steel weight: 0,030 Kg (for all sub-base versions) ISO 1 - Manifold universal system sub-base, dorsal and side connections, conveyed exhausts BF-1071 BF-1072 dorsal and side connections dorsal and side connections BF-1071S BF-1072S 0,280 0,275 0,300 0,295 aluminium aluminium aluminium aluminium G1/8 G1/4 G1/8 G1/4 side pneumatic impulses side pneumatic impulses Dorsal and side connections possible....
Open the catalog to page 8BF Manifold sub-bases UNIVER GROUP 2 Standardized valves 2_11 ISO 2 - Manifold universal system sub-base, dorsal and side connections, conveyed exhausts BF-1160 BF-1161 zamak zamak 0,800 0,800 G1/4 G3/8 dorsal and side connections dorsal and side connections Dorsal and side connections possible. Close unused ports with caps. With incorporated screw, seals and caps included ISO 2 - Manifold universal system diaphragm BF-1162 The diaphragm is not only the end plate of the manifold but it is also coupled with the exhaust regulator to separate two sub-bases and regulate the valves...
Open the catalog to page 9BF Manifold sub-bases UNIVER GROUP 2_12 ISO 3 - Manifold universal system sub-base, dorsal and side connections, conveyed exhausts dorsal and side connections dorsal and side connections BF-3071 BF-3072 G1/2 G3/4 1,100 1,100 aluminium aluminium Dorsal and side connections possible. Close unused ports with caps. With incorporated screws, seals and caps included BF-3082 ISO 3 - Universal system Cap material: steel weight: 0,020 Kg To be used to reach two pressures ISO 3 - Manifold Universal system inlet plate BF-3064 When battery exceeds 4 units, the mounting of 2 plates is recommended Mixed...
