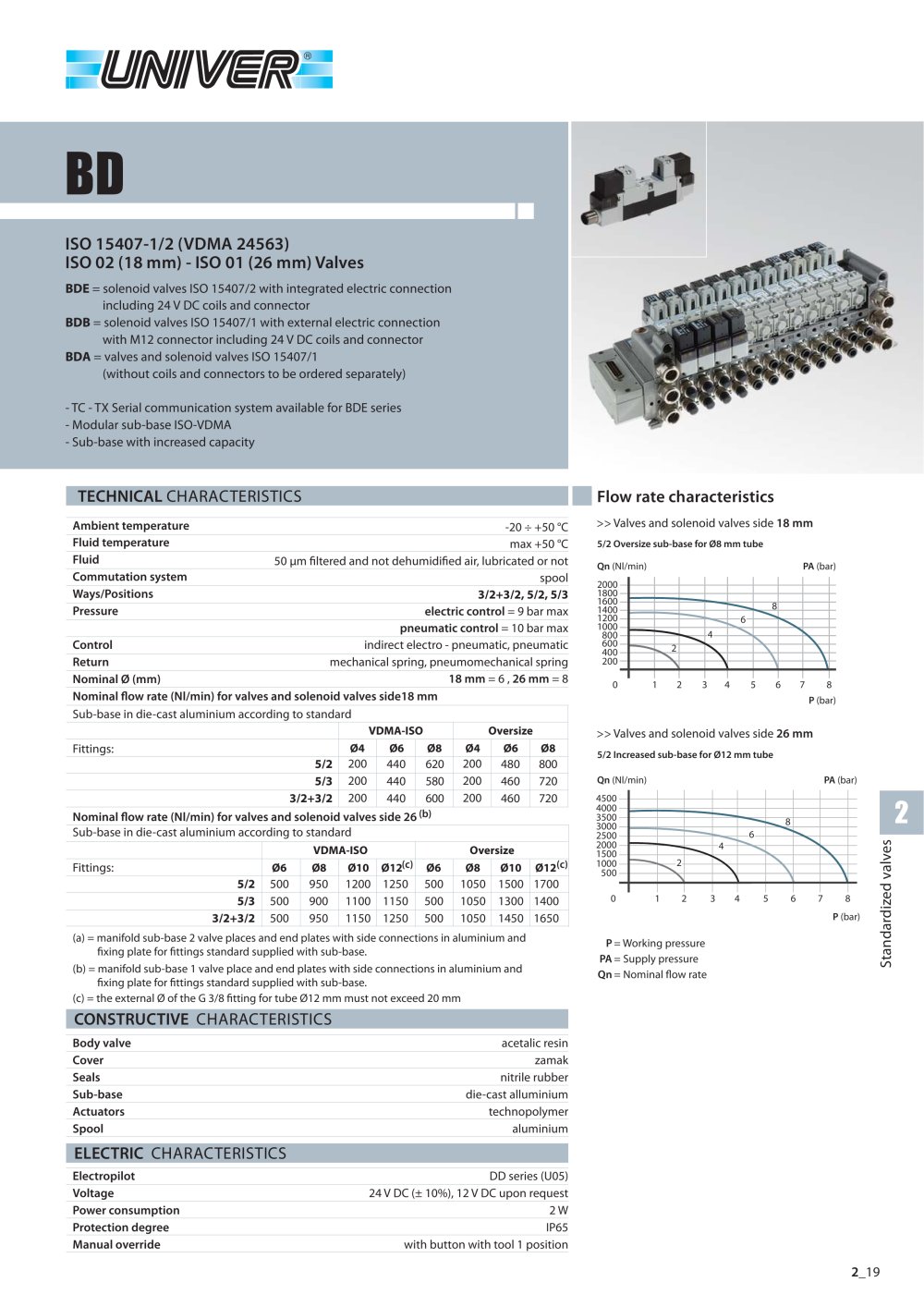

BD ISO 15407-1/2 (VDMA 24563) ISO 02 (18 mm) - ISO 01 (26 mm) Valves BDE = solenoid valves ISO 15407/2 with integrated electric connection including 24 V DC coils and connector BDB = solenoid valves ISO 15407/1 with external electric connection with M12 connector including 24 V DC coils and connector BDA = valves and solenoid valves ISO 15407/1 (without coils and connectors to be ordered separately) - TC - TX Serial communication system available for BDE series - Modular sub-base ISO-VDMA - Sub-base with increased capacity TECHNICAL CHARACTERISTICS Ambient temperature -20 + +50 °C Flow rate characteristics >> Valves and solenoid valves side 18 mm 5/2 Oversize sub-base for 08 mm tube Qn (Nl/min) PA (bar) Fluid temperature max +50 °C Fluid 50 |jm filtered and not dehumidified air, lubricated or not Commutation system spool Ways/Positions 3/2+3/2, 5/2, 5/3 Pressure electric control = 9 bar max Control pneumatic control = 10 bar max indirect electro - pneumatic, pneumatic Return mechanical spring, pneumomechanical spring Nominal 0 (mm) 18 mm = 6 , 26 mm = 8 Nominal flow rate (Nl/min) for valves and solenoid valves side18 mm P (bar) Sub-base in die-cast aluminium according to standard VDMA-ISO Oversize Fittings: 04 06 08 04 06 08 5/2 200 440 620 200 480 800 5/3 200 440 580 200 460 720 3/2+3/2 200 440 600 200 460 720 >> Valves and solenoid valves side 26 mm 5/2 Increased sub-base for 012 mm tube Qn (Nl/min) PA (bar) on > Nominal flow rate (Nl/min) for valves and solenoid valves side 26 (b) Sub-base in die-cast aluminium according to standard VDMA-ISO Oversize Fittings: 06 08 010 012(c) 06 08 010 012(c) 5/2 500 950 1200 1250 500 1050 1500 1700 5/3 500 900 1100 1150 500 1050 1300 1400 3/2+3/2 500 950 1150 1250 500 1050 1450 1650 T3 ai n P (bar) (a) = manifold sub-base 2 valve places and end plates with side connections in aluminium and fixing plate for fittings standard supplied with sub-base. (b) = manifold sub-base 1 valve place and end plates with side connections in aluminium and fixing plate for fittings standard supplied with sub-base. (c) = the external 0 of the G 3/8 fitting for tube 012 mm must not exceed 20 mm P = Working pressure PA = Supply pressure Qn = Nominal flow rate CONSTRUCTIVE CHARACTERISTICS Body valve acetalic resin Cover zamak Seals nitrile rubber Sub-base die-cast alluminium Actuators technopolymer Spool aluminium ELECTRIC CHARACTERISTICS Electropilot DD series (U05) Voltage 24 V DC (± 10%), 12 V DC upon request Power consumption 2 W Protection degree IP65 Manual override with button with tool 1 position 2_19
Open the catalog to page 1BD ISO 15407-1/2 valves U" UNIVER GROUP ISO 15407 spcifications They establish the dimensions of the bearing surface and the minimum distance between two valve places, guaranteeing the interchangeability and possibility to include any valve providing it complies with above specifications. >> Dimensioning of the bearing surface according to ISO 15407-1/2 specification with integrated electric connector L2 2B I I ^-------------1-1 __________________i Y = Min. distance between two interface axes of the same dimension mounting on the same manifolds U = Position bore, depth V A B D E F G G1 G2 K...
Open the catalog to page 2BD ISO 15407-1/2 valves Z'U'Z UNIVER GROUP Codification key b d - 3 3 4 4 1 4 1 Sries 2 Size 3 Type BDE = solenoid valves with integrated electric connection 24 V DC (including coil and connector) BDB = solenoid valves with integrated electric connection 24 V DC, with M12 connector (including coil and connector) 3 = side 18 mm 4 = side 26 mm 2 = 5/2 3 = 5/3 c.c. 4 = 5/3 o.c. 5 = 5/3 p.c. 6 = 3/2+3/2 NC-NC 7 = 3/2+3/2 NC-NO 8 = 3/2+3/2 NO-NO 4 Control 14 5 Return 12 6 Coil voltage 4 = electric amplified 0 = pneumomechanical spring 1 = mechanical spring 4 = electric amplified 7 = electric not...
Open the catalog to page 3BDE Solenoid valves with integrated electric connection Z'U'Z UNIVER GROUP Single electric impulse18 mm A H" 02.8x1.7 17 M3x30 64.5 110 Weight (Kg): 0,112 Tir Symbol Control Return Pressure Time (ms) Part no. bar En. De-en. 5/2 ^JW\f12 electric amplified pneumo mechanical spring 1,8-9 A Manual override 15 25 BDE-324024 5/2 electric amplified mechanical spring 2,5-9 14 37 BDE-324124 Double electric impulse 18 mm A Weight (Kg): 0,131 Symbol Control Return Pressure Time (ms) Part no. bar En. De-en. A Manual override electric amplified electric amplified 0,8-9 16 16 BDE-324424 5/2 h. affluas...
Open the catalog to page 4BDE Solenoid valves with integrated electric connection Single electric impulse 26 mm A UNIVER GROUP M4x40 72 Weight (Kg): 0,205 125 Symbol Control Return Pressure Time (ms) Part no. bar En De-en. =©1 M. 5/2 electric amplified pneumo mechanical 1,8-9 spring 21 40 BDE-424024 A Manual override 5/2 5EHE electric amplified mechanical spring 2,5-9 20 50 BDE-424124 Double electric impulse 26 mm i A H P 02.8x2 24 72 V M4x40 143 Weight (Kg): 0,232 Return Pressure Time (ms) Part no. bar En. De-en. Symbol Control 5/2 14, electric electric 0 8 9 amplified amplified 0,8~9 17 17 BDE-424424 A Manual...
Open the catalog to page 5ISO 15407-1/2 valves and solenoid valves Single electric impulse18 mm UNIVER GROUP Ftt7----- A 02.8x1.7 _ | _ _|J7_ 106 Weight (Kg): 0,107 Control Return Pressure Time (ms) Part no. bar En. De-en. electric pneumo amplified mechanical 1,8+9 15 25 BDA-3240 spring electric mechanical 14 37 BDA-3241 amplified spring 2,5+9 A Manual override 5/2 Symbol 5/2 Double electric impulse18 mm A A ~B3~ 02.8x1.7 [1M3x 120 _, 3 i j1_j- * Weight (Kg): 0,123 Control Return Pressure Time (ms) Part no. bar En. De-en. electric amplified electric amplified 0,8+9 16 16 BDA-3244 electric amplified electric...
Open the catalog to page 8ISO 15407-1/2 valves and solenoid valves Single electric impulse 26 mm 137.5 UNIVER GROUP A r-. en m m M4X40 54 -I-! Weight (Kg): 0,197 5/2 Symbol «SE Control Return Pressure Time (ms) Part no. bar En. De-en. A Manual override electric amplified pneumo mechanical 1,8-9 spring 21 40 BDA-4240 5/2 mechanical spring 2,5-9 20 50 BDA-4241 i4^MIl/>2 amplified Double electric impulse 26 mm 167 A A ----^TT nfir 02.8x2 ,|. M4X40 "T- -F? Weight (Kg): 0,218 Control Return Pressure Time (ms) bar En. De-e electric electric 1,2-9 17 17 amplified amplified electric electric 2,1-9 16 54 amplified amplified...
