AF_G1/8 ÷ G1 1/2 Poppet valves for compressed air - Univer Group - #1

Text version of the page

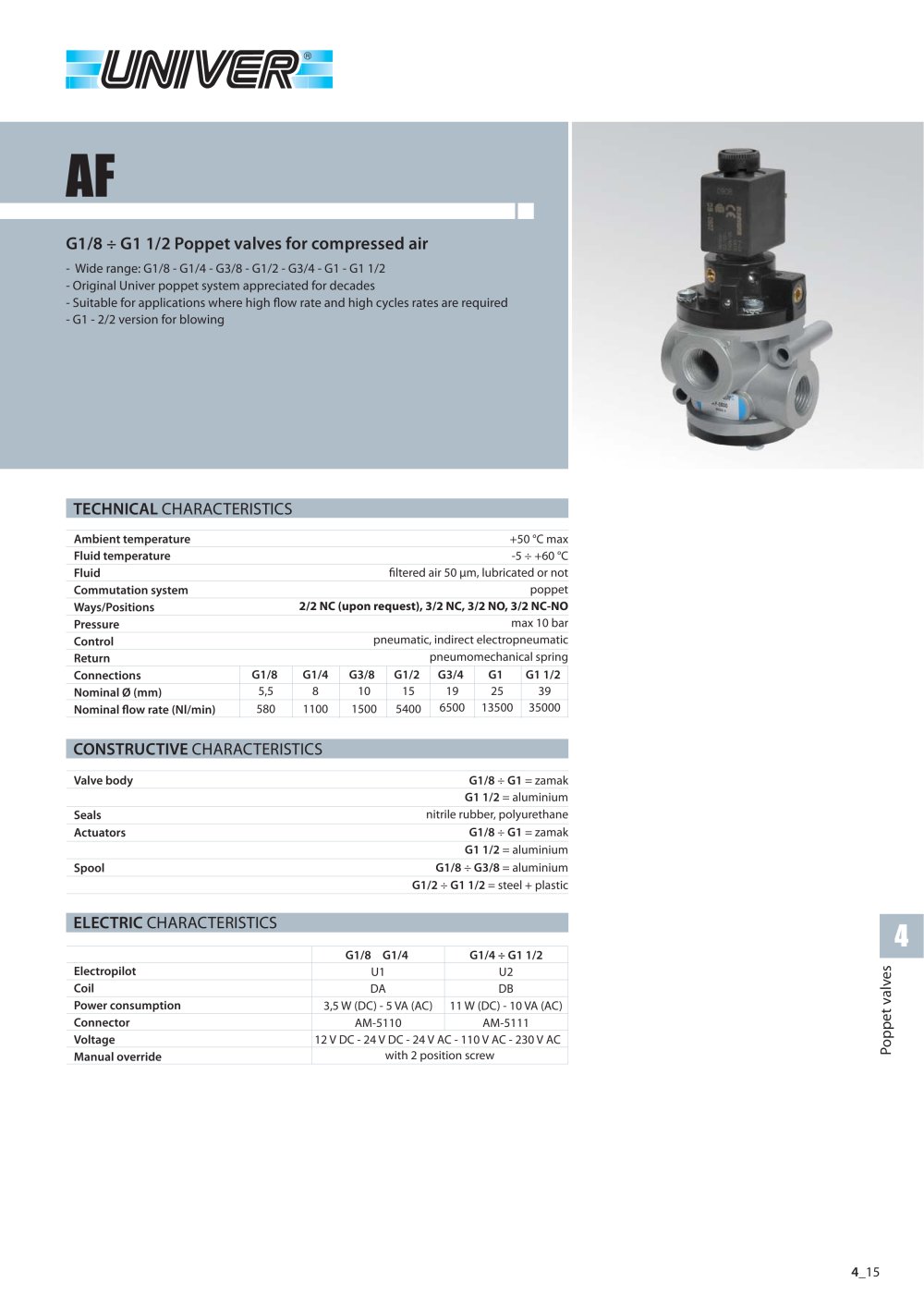

4_15 4 Poppet valves AF TECHNICAL CHARACTERISTICS CONSTRUCTIVE CHARACTERISTICS ELECTRIC CHARACTERISTICS Ambient temperature Fluid temperature Fluid Commutation system Ways/Positions Pressure Control Return Connections Nominal Ø (mm) Nominal fl ow rate (Nl/min) +50 °C max -5 ÷ +60 °C fi ltered air 50 ìm, lubricated or not poppet 2/2 NC (upon request), 3/2 NC, 3/2 NO, 3/2 NC-NO max 10 bar pneumatic, indirect electropneumatic pneumomechanical spring Electropilot Coil Power consumption Connector Voltage Manual override Valve body Seals Actuators Spool G1/8 ÷ G1 = zamak G1 1/2 = aluminium nitrile rubber, polyurethane G1/8 ÷ G1 = zamak G1 1/2 = aluminium G1/8 ÷ G3/8 = aluminium G1/2 ÷ G1 1/2 = steel + plastic - Wide range: G1/8 - G1/4 - G3/8 - G1/2 - G3/4 - G1 - G1 1/2 - Original Univer poppet system appreciated for decades - Suitable for applications where high fl ow rate and high cycles rates are required - G1 - 2/2 version for blowing G1/8 ÷ G1 1/2 Poppet valves for compressed air G1/8 G1/4 G1/4 ÷ G1 1/2 U1 U2 with 2 position screw DA DB 12 V DC - 24 V DC - 24 V AC - 110 V AC - 230 V AC 3,5 W (DC) - 5 VA (AC) 11 W (DC) - 10 VA (AC) AM-5110 AM-5111 G1/8 G1/4 G3/8 G1/2 G3/4 G1 G1 1/2 5,5 580 8 1100 10 1500 15 5400 19 6500 25 13500 39 35000
