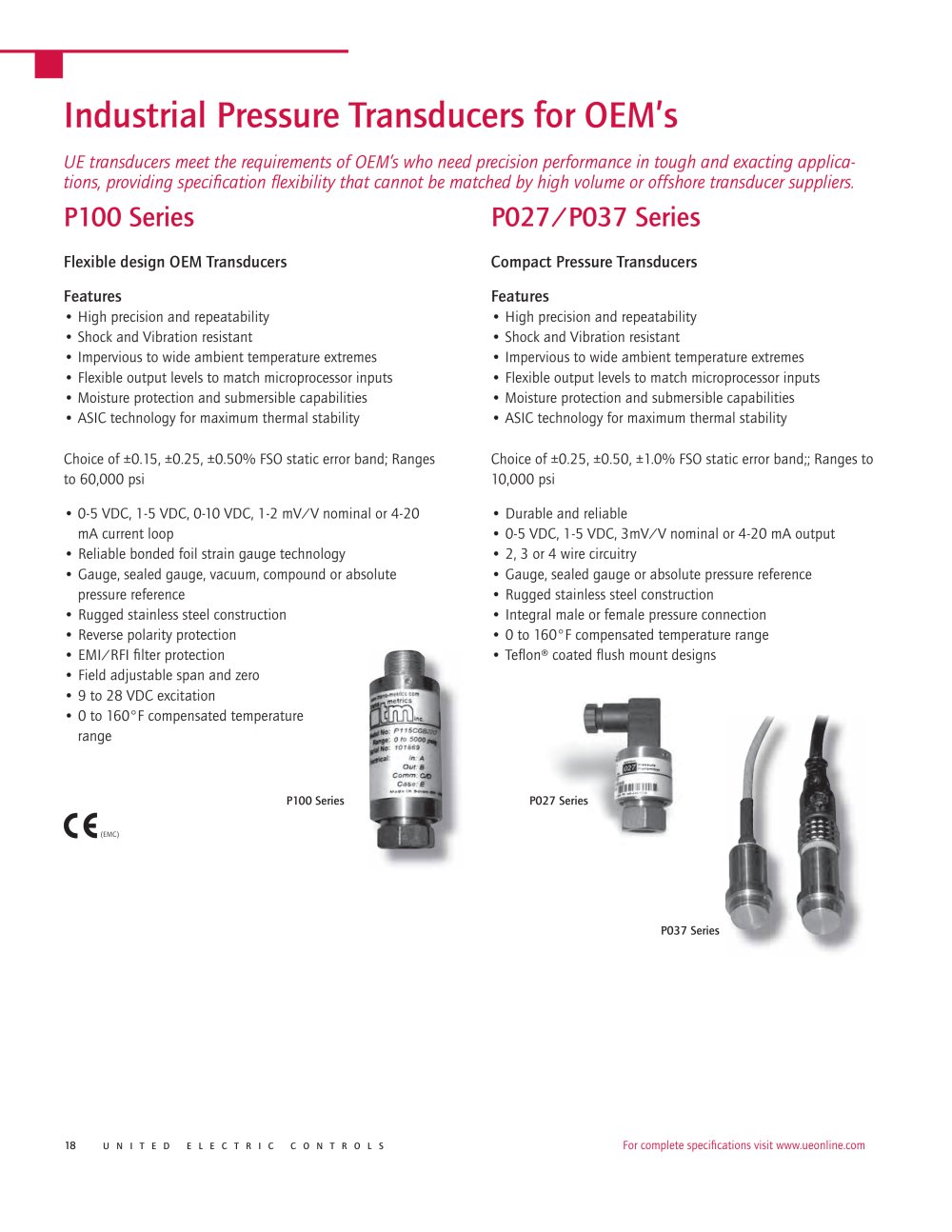

Industrial Industrial pressure transducers for OEM’s

UE transducers meet the requirements of OEM’s who need precision performance in tough and exacting applica-tions, providing specifi cation fl exibility that cannot be matched by high volume or offshore transducer suppliers.

P100 Series P027/P037 Series

Flexible design OEM TransducersFeatures Compact Pressure TransducersFeatures

• High precision and repeatability• Shock and Vibration resistant • Impervious to wide ambient temperature extremes • Flexible output levels to match microprocessor inputs • Moisture protection and submersible capabilities • ASIC technology for maximum thermal stabilityChoice of ±0.15, ±0.25, ±0.50% FSO static error band; Ranges to 60,000 psi• 0-5 VDC, 1-5 VDC, 0-10 VDC, 1-2 mV/V nominal or 4-20 mA current loop • Reliable bonded foil strain gauge technology • Gauge, sealed gauge, vacuum, compound or absolute pressure reference • Rugged stainless steel construction • Reverse polarity protection • EMI/RFI fi lter protection • Field adjustable span and zero • 9 to 28 VDC excitation • 0 to 160°F compensated temperature range • High precision and repeatability• Shock and Vibration resistant • Impervious to wide ambient temperature extremes • Flexible output levels to match microprocessor inputs • Moisture protection and submersible capabilities • ASIC technology for maximum thermal stabilityChoice of ±0.25, ±0.50, ±1.0% FSO static error band;; Ranges to 10,000 psi• Durable and reliable • 0-5 VDC, 1-5 VDC, 3mV/V nominal or 4-20 mA output • 2, 3 or 4 wire circuitry • Gauge, sealed gauge or absolute pressure reference • Rugged stainless steel construction • Integral male or female pressure connection • 0 to 160°F compensated temperature range • Tefl on® coated fl ush mount designs

P100 Series P037 Series P027 Series
(EMC) 18 UNITED ELECTRIC CONTROLS For complete specifi cations visit www.ueonline.com
