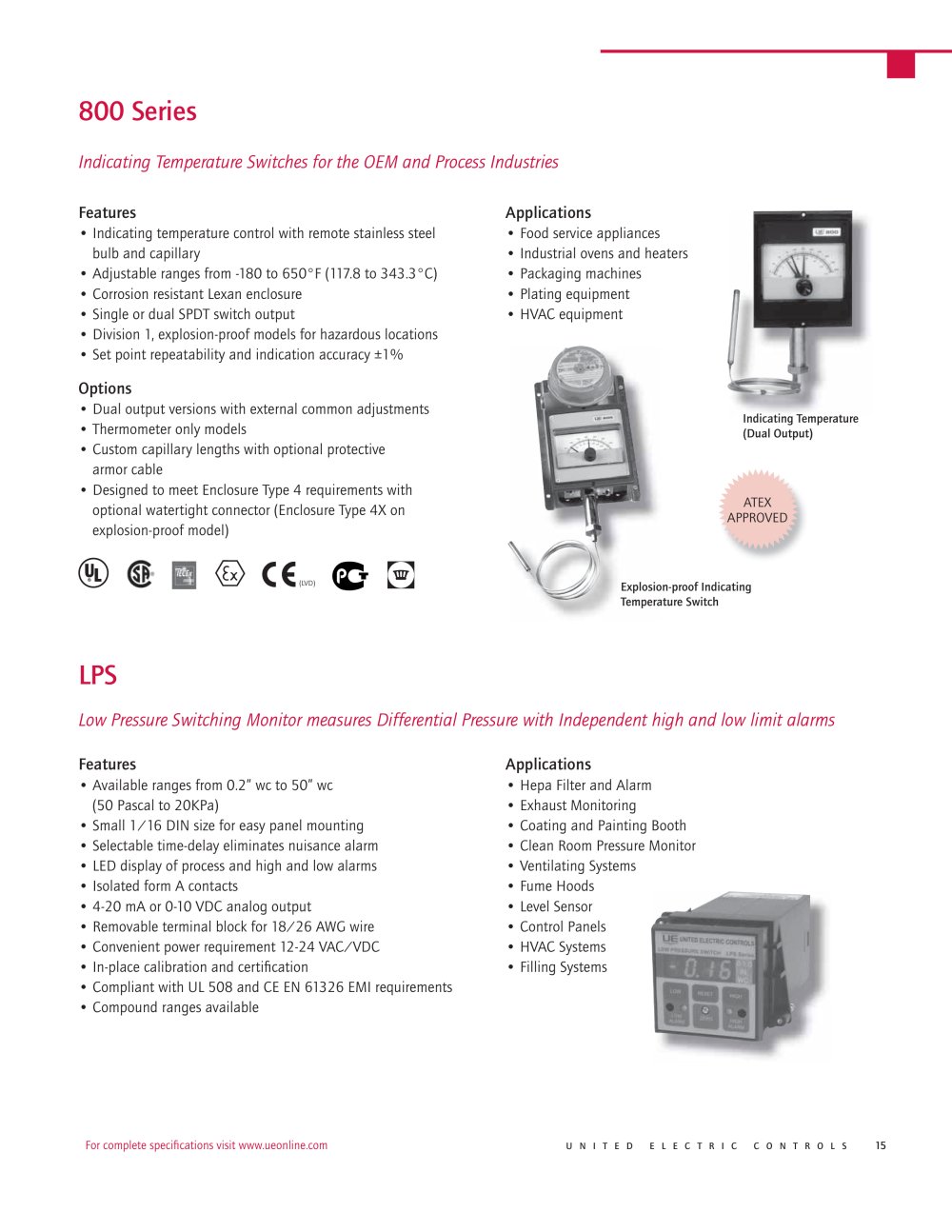

800 Series LPS

Indicating Temperature switches for the OEM and Process Industries

Features Applications

• Indicating temperature control with remote stainless steel bulb and capillary • Adjustable ranges from -180 to 650°F (117.8 to 343.3°C) • Corrosion resistant Lexan enclosure • Single or dual SPDT switch output • Division 1, explosion-proof models for hazardous locations • Set point repeatability and indication accuracy ±1% • Food service appliances • Industrial ovens and heaters • Packaging machines • Plating equipment • HVAC equipment

Options

• Dual output versions with external common adjustments • Thermometer only models • Custom capillary lengths with optional protective armor cable • Designed to meet Enclosure Type 4 requirements with optional watertight connector (Enclosure Type 4X on explosion-proof model)
Indicating Temperature (Dual Output) ATEXAPPROVED (LVD) Explosion-proof Indicating Temperature Switch

Low Pressure switching Monitor measures Differential Pressure with Independent high and low limit alarms

Features Applications

• Available ranges from 0.2” wc to 50” wc (50 Pascal to 20KPa) • Small 1/16 DIN size for easy panel mounting • Selectable time-delay eliminates nuisance alarm • LED display of process and high and low alarms • Isolated form A contacts • 4-20 mA or 0-10 VDC analog output • Removable terminal block for 18/26 AWG wire • Convenient power requirement 12-24 VAC/VDC • In-place calibration and certifi cation • Compliant with UL 508 and CE EN 61326 EMI requirements • Compound ranges available • Hepa filter and Alarm • Exhaust Monitoring • Coating and Painting booth • Clean Room Pressure monitor • Ventilating Systems • Fume Hoods • Level sensor manufacturer • Control Panels • HVAC Systems • Filling Systems
For complete specifi cations visit www.ueonline.com UNITED ELECTRIC CONTROLS 15
