Text version of the page

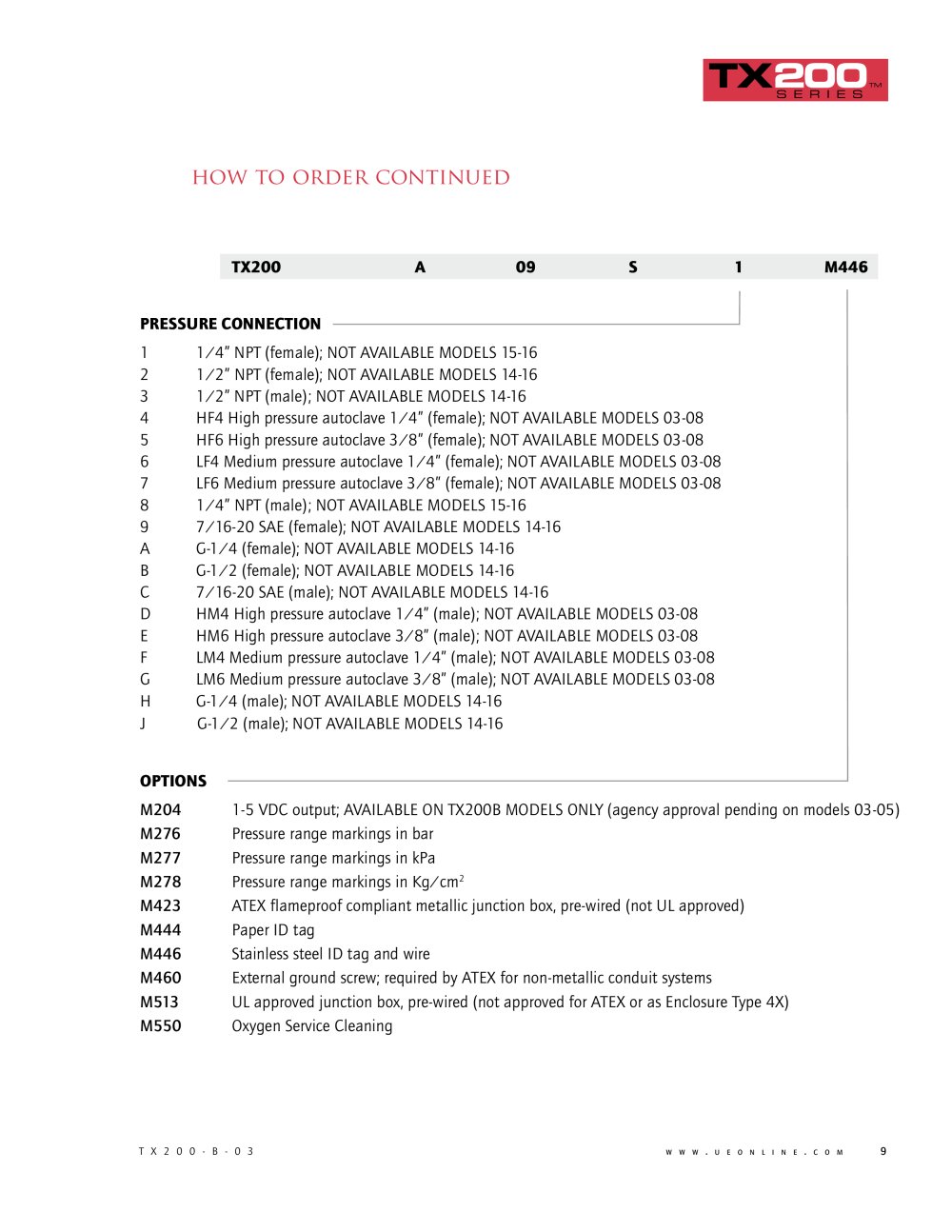

| how to order continued | ||||||||||||||
| TX200 A 09 S 1 M446 PRESSURECONNECTION 1 1/4" NPT(female); NOTAVAILABLE MODELS 15-16 2 1/2" NPT(female); NOTAVAILABLE MODELS 14-16 3 1/2" NPT(male); NOTAVAILABLE MODELS 14-16 4 HF4 High pressure autoclave 1/4" (female); NOTAVAILABLE MODELS 03-08 5 HF6 High pressure autoclave 3/8" (female); NOTAVAILABLE MODELS03-08 6 LF4 Medium pressure autoclave 1/4" (female); NOTAVAILABLE MODELS 03-08 7 LF6 Medium pressure autoclave 3/8" (female); NOTAVAILABLE MODELS 03-08 8 1/4" NPT(male); NOTAVAILABLE MODELS 15-16 9 7/16-20 SAE (female); NOTAVAILABLE MODELS 14-16 A C-l/4 (female); NOTAVAILABLE MODELS 14-16 B C-l/2 (female); NOTAVAILABLE MODELS 14-16 C 7/16-20 SAE (male); NOTAVAILABLE MODELS 14-16 D HM4 High pressure autoclave 1/4" (male); NOTAVAILABLE MODELS 03-08 E HM6 High pressure autoclave 3/8" (male); NOTAVAILABLE MODELS 03-08 F LM4 Medium pressure autoclave 1/4" (male); NOTAVAILABLE MODELS 03-08 C LM6 Medium pressure autoclave 3/8" (male); NOTAVAILABLE MODELS 03-08 H C-l/4 (male); NOTAVAILABLE MODELS 14-16 J C-l/2 (male); NOTAVAILABLE MODELS 14-16 OPTIONS M204 1-5 VDC output; AVAILABLE ON TX200B MODELS ONLY (agency approval pending on models 03-05) M276 Pressure range markings in bar M277 Pressure range markings in kPa M278 Pressure range markings in Kg/cm2 M423 ATEXflameproofcompliant metallicjunction box, pre-wired (not ULapproved) M444 PaperlDtag M446 Stainless steel ID tag and wire M460 External ground screw; required byATEXfor non-metallicconduitsystems M513 ULapprovedjunction box, pre-wired (notapproved forATEXoras EnclosureType4X) M550 Oxygen Service Cleaning | ||||||||||||||
