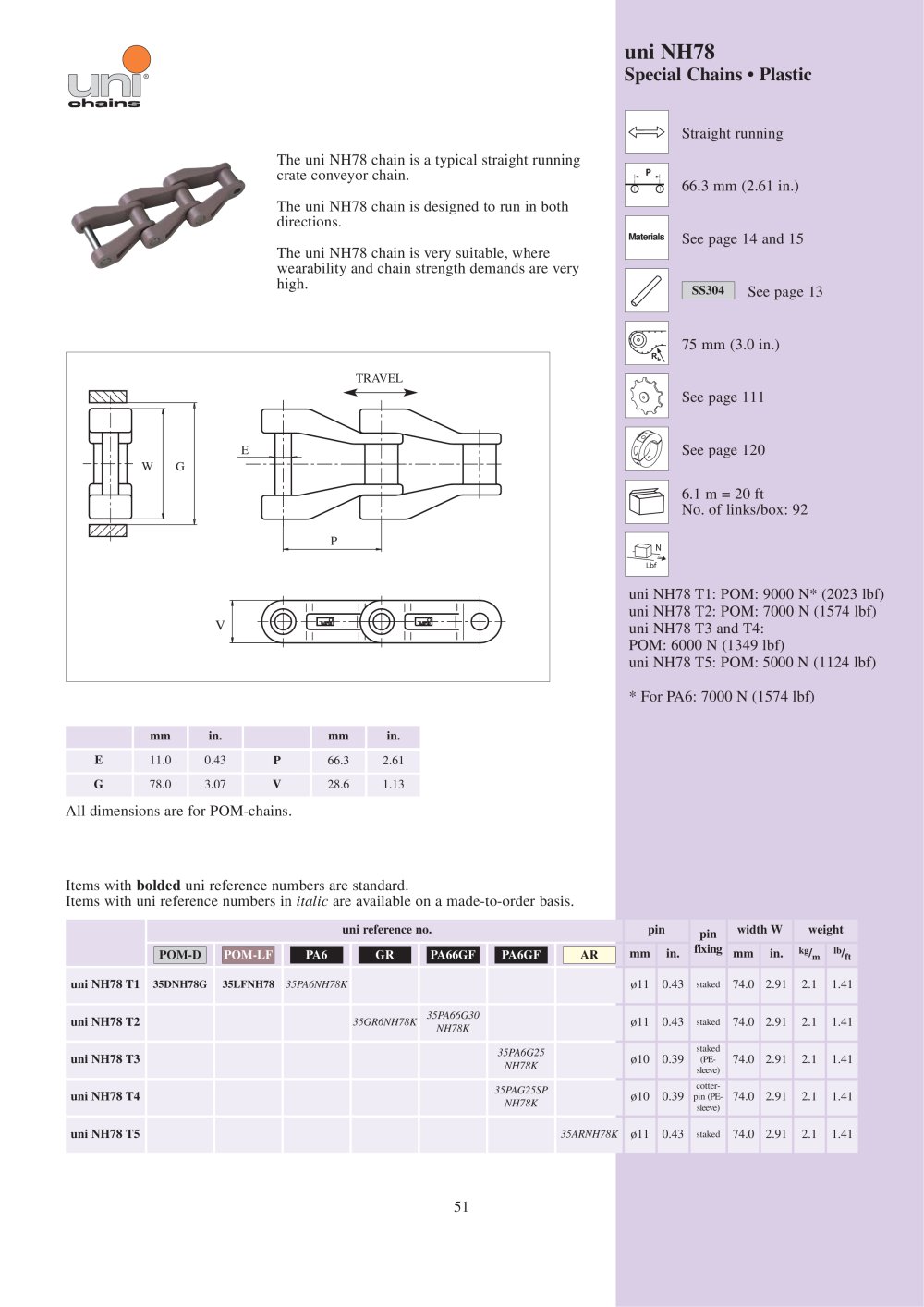

uni NH78

Special Chains ? Plastic

Straight running 51 The uni NH78 chain is a typical straight runningcrate conveyor chain.The uni NH78 chain is designed to run in bothdirections.The uni NH78 chain is very suitable, where wearability and chain strength demands are very high. 66.3 mm (2.61 in.)See page 14 and 1575 mm (3.0 in.)See page 111

Materials SS304 TRAVEL

See page 120

WGE

6.1 m = 20 ftNo. of links/box: 92

P

uni NH78 T1: POM: 9000 N* (2023 lbf)uni NH78 T2: POM: 7000 N (1574 lbf) uni NH78 T3 and T4: POM: 6000 N (1349 lbf) uni NH78 T5: POM:5000 N (1124 lbf)* For PA6: 7000 N (1574 lbf)

V

mm in. mm in. E 11.0 0.43 P 66.3 2.61 G 78.0 3.07 V 28.6 1.13

All dimensions are for POM-chains.Items with bolded uni reference numbers are standard. Items with uni reference numbers in italic are available on a made-to-order basis. See page 13

uni reference no. pin pinfixing width W weight POM-D POM-LF PA6 GR PA66GF PA6GF AR mm in. mm in.
kg /
m lb /
ft uni NH78 T1
35DNH78G 35LFNH78 35PA6NH78K ø11 0.43
staked 74.0 2.91 2.1 1.41 uni NH78 T2
35GR6NH78K 35PA66G30NH78K ø11 0.43
staked 74.0 2.91 2.1 1.41
staked(PE-sleeve) uni NH78 T3
35PA6G25NH78K ø10 0.39 74.0 2.91 2.1 1.41
cotter-pin(PE-sleeve) uni NH78 T4
35PAG25SPNH78K ø10 0.39 74.0 2.91 2.1 1.41 uni NH78 T5
35ARNH78K ø11 0.43
staked 74.0 2.91 2.1 1.41
