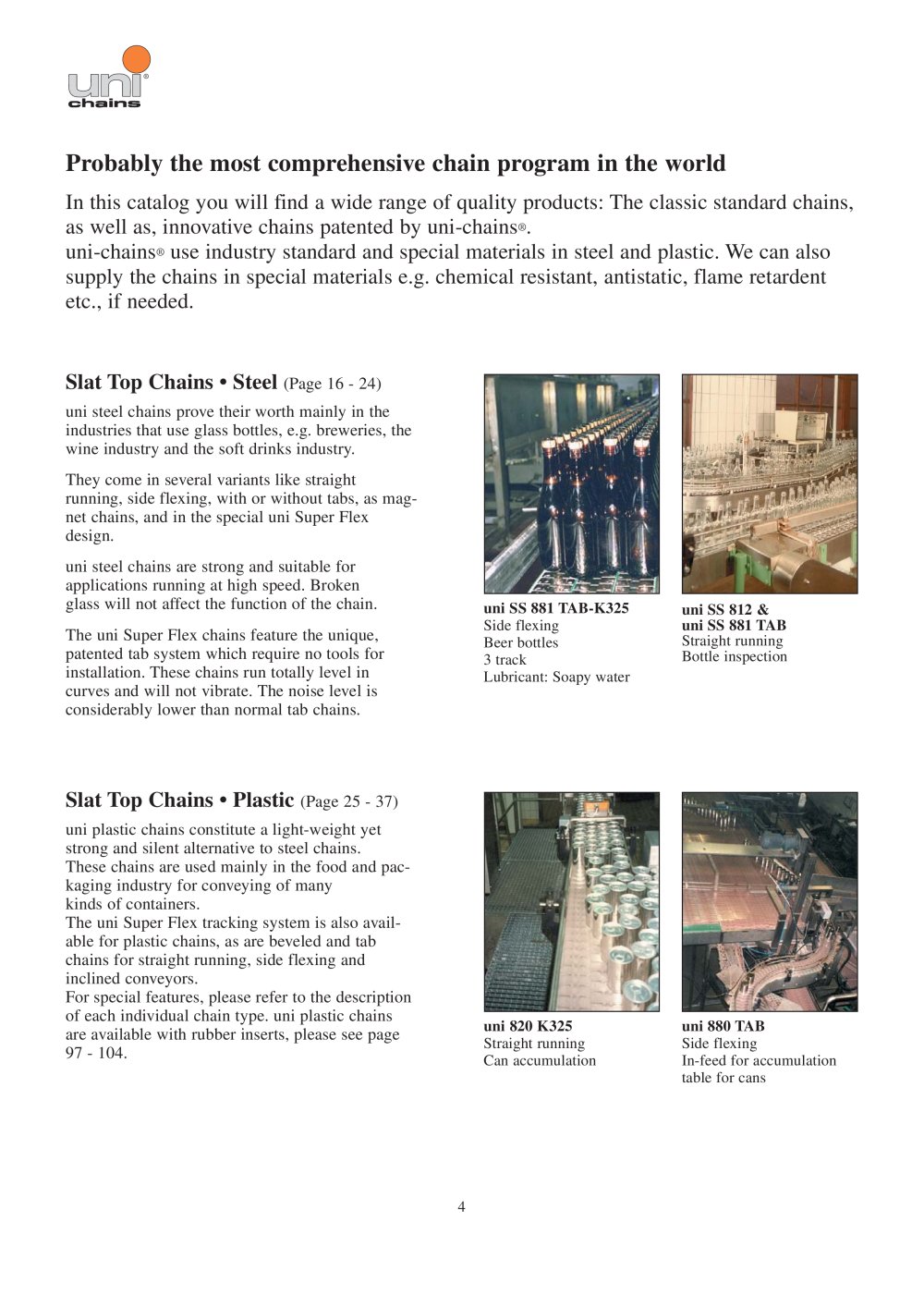

Probably the most comprehensive chain program in the world

In this catalog you will find a wide range of quality products: The classic standard chains,as well as, innovative chains patented by uni-chains

®

.uni-chains

®

use industry standard and special materials in steel and plastic. We can also supply the chains in special materials e.g. chemical resistant, antistatic, flame retardent etc., if needed. Slat Top Chains • Steel

(Page 16 - 24)uni steel chains prove their worth mainly in the industries that use glass bottles, e.g. breweries, the wine industry and the soft drinks industry.They come in several variants like straightrunning, side flexing, with or without tabs, as mag- net chains, and in the special uni Super Flex design.uni steel chains are strong and suitable for applications running at high speed. Broken glass will not affect the function of the chain. The uni Super Flex chains feature the unique,patented tab system which require no tools for installation. These chains run totally level in curves and will not vibrate. The noise level is considerably lower than normal tab chains.

uni SS 812 & uni SS 881 TAB Straight running Bottle inspection uni SS 881 TAB-K325 Side flexing Beer bottles 3 track Lubricant: Soapy water

Slat Top Chains ? Plastic

(Page 25 - 37)uni plastic chains constitute a light-weight yetstrong and silent alternative to steel chains. These chains are used mainly in the food and pac- kaging industry for conveying of many kinds of containers. The uni Super Flex tracking system is also avail- able for plastic chains, as are beveled and tab chains for straight running, side flexing and inclined conveyors. For special features, please refer to the description of each individual chain type. uni plastic chains are available with rubber inserts, please see page 97 - 104.

uni 880 TAB Side flexing In-feed for accumulation table for cans uni 820 K325 Straight running Can accumulation 4
