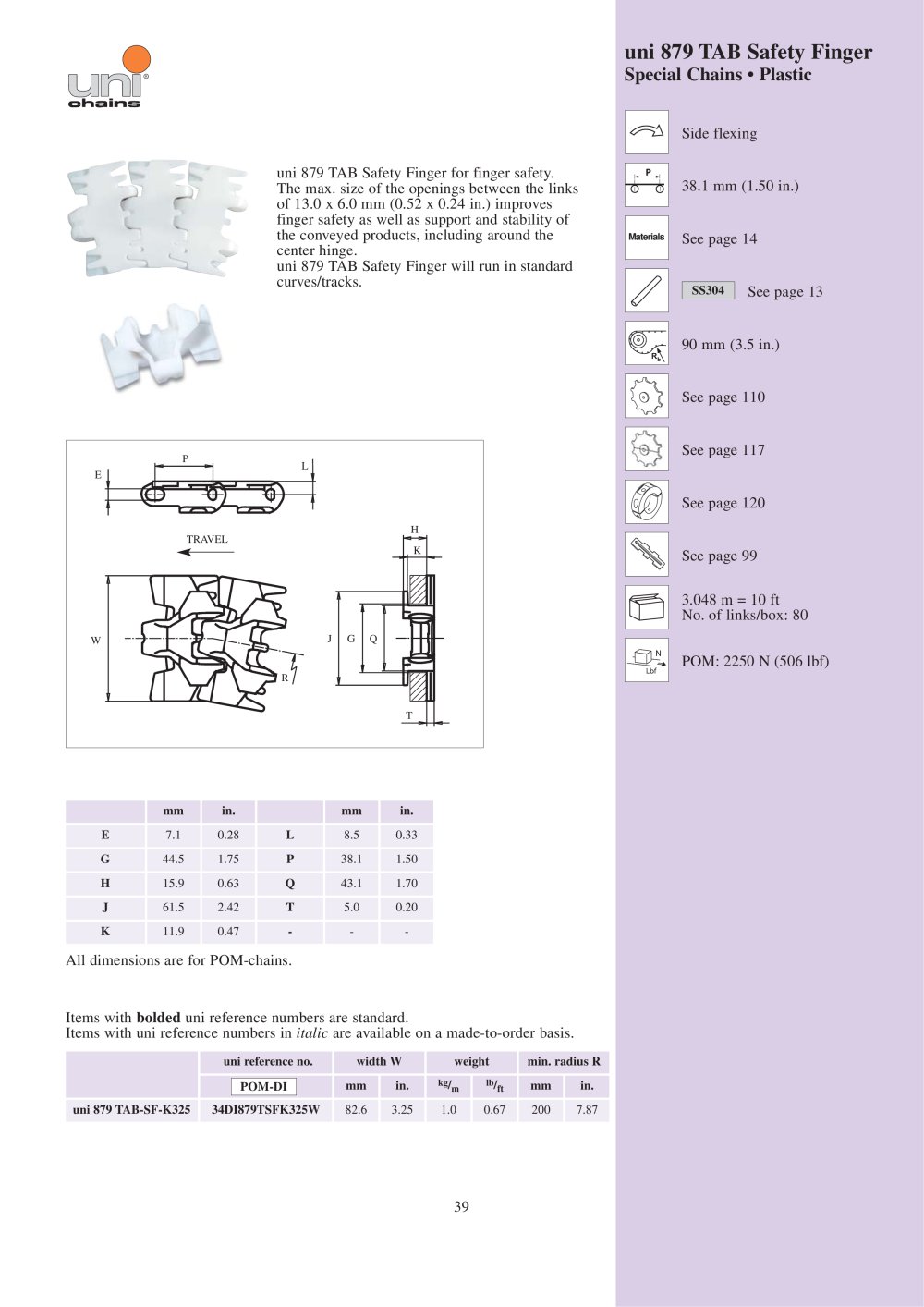

uni 879 TAB Safety Finger
Special Chains ? Plastic
uni 879 TAB Safety Finger for finger safety.The max. size of the openings between the links of 13.0 x 6.0 mm (0.52 x 0.24 in.) improves finger safety as well as support and stability of the conveyed products, including around the center hinge. uni 879 TAB Safety Finger will run in standard curves/tracks. 38.1 mm (1.50 in.)See page 14Side flexing 90 mm (3.5 in.) 3.048 m = 10 ftNo. of links/box: 80 POM:2250 N (506 lbf) See page 13See page 110See page 117See page 99
Materials SS304PKQ H GJTWR EL
See page 120
TRAVEL mm in. mm in. E 7.1 0.28 L 8.5 0.33 G 44.5 1.75 P 38.1 1.50 H 15.9 0.63 Q 43.1 1.70 J 61.5 2.42 T 5.0 0.20 K 11.9 0.47 - - -All dimensions are for POM-chains. Items with bolded uni reference numbers are standard. Items with uni reference numbers in italic are available on a made-to-order basis.
uni reference no. width W weight min. radius R POM-DI mm in.kg /
m lb /
ft mm in. uni 879 TAB-SF-K325 34DI879TSFK325W 82.6 3.25 1.0 0.67 200 7.87
