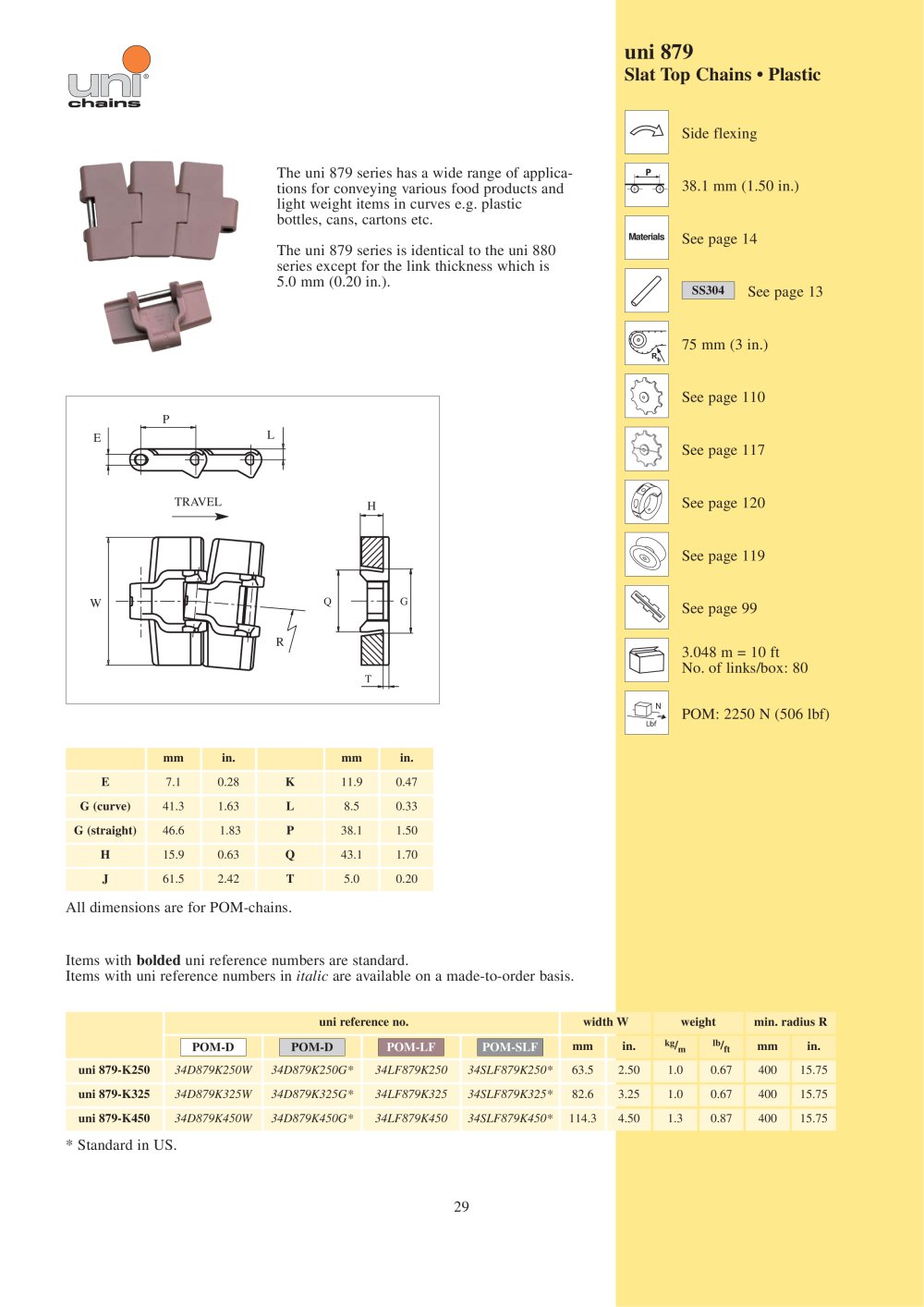

uni 879
Slat Top Chains ? Plastic
The uni 879 series has a wide range of applica-tions for conveying various food products and light weight items in curves e.g. plastic bottles, cans, cartons etc.The uni 879 series is identical to the uni 880series except for the link thickness which is 5.0 mm (0.20 in.). 38.1 mm (1.50 in.)See page 14Side flexing 75 mm (3 in.) 3.048 m = 10 ftNo. of links/box: 80 POM: 2250 N (506 lbf) See page 13See page 110See page 117 See page 99
Materials SS304 TRAVELPEL WR HSee page 120 See page 119 * Standard in US.
QGT mm in. mm in. E 7.1 0.28 K 11.9 0.47 G (curve) 41.3 1.63 L 8.5 0.33 G (straight) 46.6 1.83 P 38.1 1.50 H 15.9 0.63 Q 43.1 1.70 J 61.5 2.42 T 5.0 0.20All dimensions are for POM-chains. Items with bolded uni reference numbers are standard. Items with uni reference numbers in italic are available on a made-to-order basis.
uni reference no. width W weight min. radius R POM-D POM-D POM-LF POM-SLF mm in.kg /
m lb /
ft mm in. uni 879-K250 34D879K250W 34D879K250G* 34LF879K250 34SLF879K250* 63.5 2.50 1.0 0.67 400 15.75 uni 879-K325 34D879K325W 34D879K325G* 34LF879K325 34SLF879K325* 82.6 3.25 1.0 0.67 400 15.75 uni 879-K450 34D879K450W 34D879K450G* 34LF879K450 34SLF879K450* 114.3 4.50 1.3 0.87 400 15.75
