CHAIN CATALOG - 25 / 125 Pages

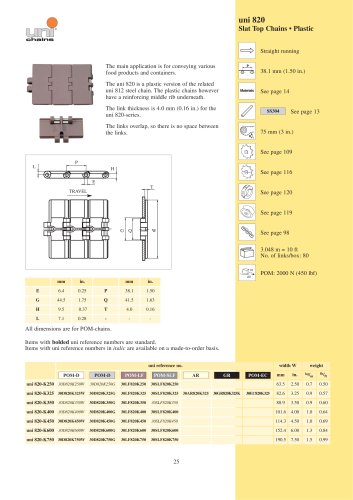

uni 820

Slat Top Chains ? Plastic

Straight running The main application is for conveying variousfood products and containers.The uni 820 is a plastic version of the related uni 812 steel chain. The plastic chains however
have a reinforcing middle rib underneath.The link thickness is 4.0 mm (0.16 in.) for theuni 820-series.The links overlap, so there is no space betweenthe links. 38.1 mm (1.50 in.)See page 14
3.048 m = 10 ftNo. of links/box: 80 See page 109

Materials SS304 >

75 mm (3 in.)See page 13

LPHE
GQTW TRAVEL >

See page 120 See page 119See page 116 See page 98 POM: 2000 N (450 lbf)

mm in. mm in. E 6.4 0.25 P 38.1 1.50 G 44.5 1.75 Q 41.5 1.63 H 9.5 0.37 T 4.0 0.16 L 7.1 0.28 - - - >

All dimensions are for POM-chains.Items with bolded uni reference numbers are standard. Items with uni reference numbers in italic are available on a made-to-order basis.

uni reference no. width W weight POM-D POM-D POM-LF POM-SLF AR GR POM-EC mm in. >
kg / >
m lb / >
ft uni 820-K250 >
30D820K250W 30D820K250G 30LF820K250 30SLF820K250 63.5 2.50 0.7 0.50 uni 820-K325 >
30D820K325W 30D820K325G 30LF820K325 30SLF820K325 30AR820K325 30GR820K325K 30EC820K325 82.6 3.25 0.9 0.57 uni 820-K350 >
30D820K350W 30D820K350G 30LF820K350 30SLF820K350 88.9 3.50 0.9 0.60 uni 820-K400 >
30D820K400W 30D820K400G 30LF820K400 30SLF820K400 101.6 4.00 1.0 0.64 uni 820-K450 >
30D820K450W 30D820K450G 30LF820K450 30SLF820K450 114.3 4.50 1.0 0.69 uni 820-K600 >
30D820K600W 30D820K600G 30LF820K600 30SLF820K600 152.4 6.00 1.3 0.84 uni 820-K750 >
30D820K750W 30D820K750G 30LF820K750 30SLF820K750 190.5 7.50 1.5 0.99 >

25
