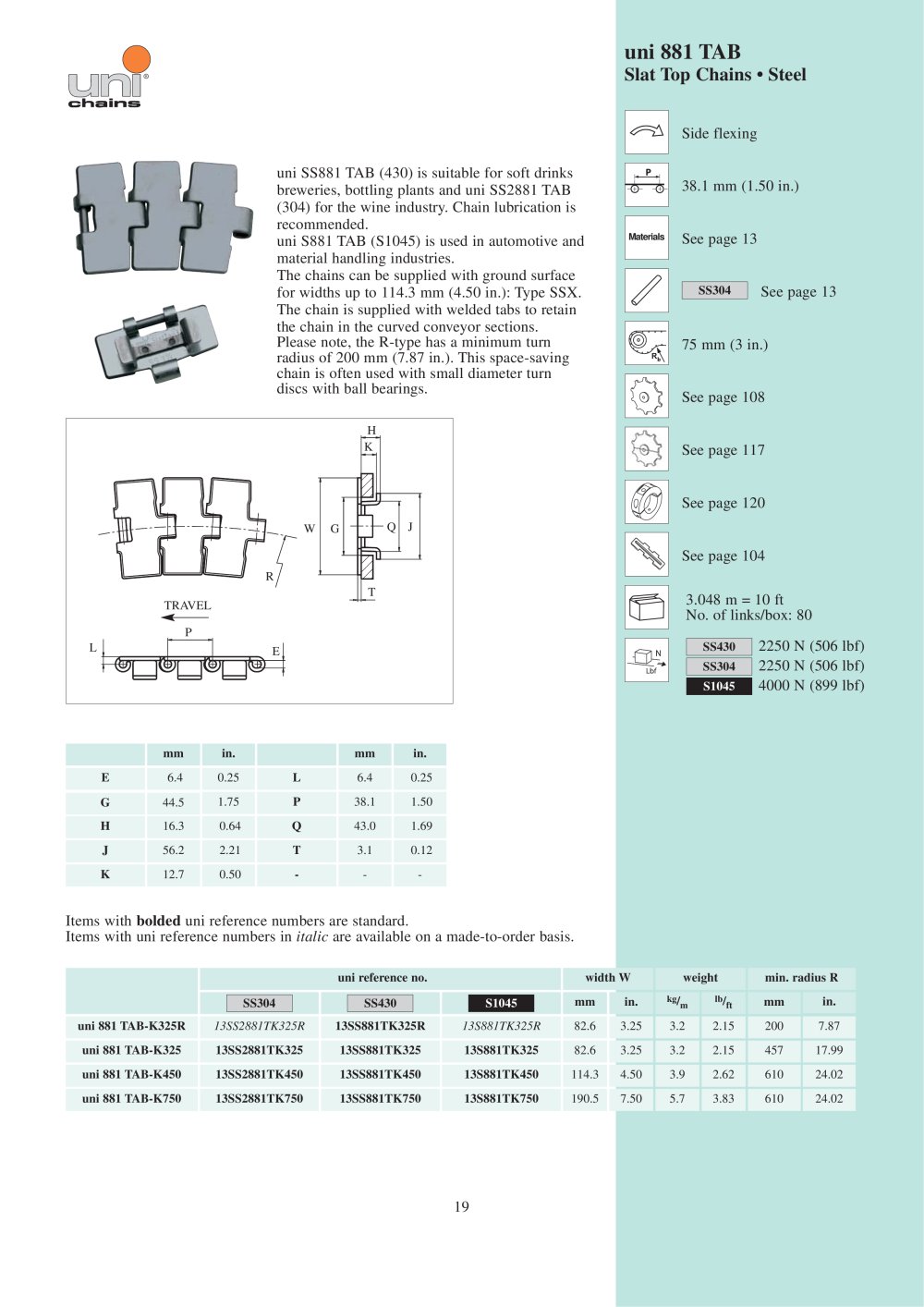

uni 881 TAB

Slat Top Chains ? Steel

uni SS881 TAB (430) is suitable for soft drinksbreweries, bottling plants and uni SS2881 TAB (304) for the wine industry. Chain lubrication is recommended. uni S881 TAB (S1045) is used in automotive and material handling industries. The chains can be supplied with ground surface for widths up to 114.3 mm (4.50 in.): Type SSX. The chain is supplied with welded tabs to retain the chain in the curved conveyor sections.Please note, the R-type has a minimum turn radius of 200 mm (7.87 in.). This space-saving chain is often used with small diameter turn discs with ball bearings. 38.1 mm (1.50 in.)See page 13Side flexing 3.048 m = 10 ftNo. of links/box: 80 See page 108See page 117

Materials SS304

75 mm (3 in.)See page 13 See page 120 See page 104

TRAVELRWGQJTLPE HK SS430

2250 N (506 lbf)2250 N (506 lbf) 4000 N (899 lbf)

SS304 S1045 mm in. mm in. E 6.4 0.25 L 6.4 0.25 G 44.5 1.75 P 38.1 1.50 H 16.3 0.64 Q 43.0 1.69 J 56.2 2.21 T 3.1 0.12 K 12.7 0.50 - - -

Items with bolded uni reference numbers are standard. Items with uni reference numbers in italic are available on a made-to-order basis.

uni reference no. width W weight min. radius R SS304 SS430 S1045 mm in.
kg /
m lb /
ft mm in. uni 881 TAB-K325R 13SS2881TK325R 13SS881TK325R 13S881TK325R 82.6 3.25 3.2 2.15 200 7.87 uni 881 TAB-K325 13SS2881TK325 13SS881TK325 13S881TK325 82.6 3.25 3.2 2.15 457 17.99 uni 881 TAB-K450 13SS2881TK450 13SS881TK450 13S881TK450 114.3 4.50 3.9 2.62 610 24.02 uni 881 TAB-K750 13SS2881TK750 13SS881TK750 13S881TK750 190.5 7.50 5.7 3.83 610 24.02

19
