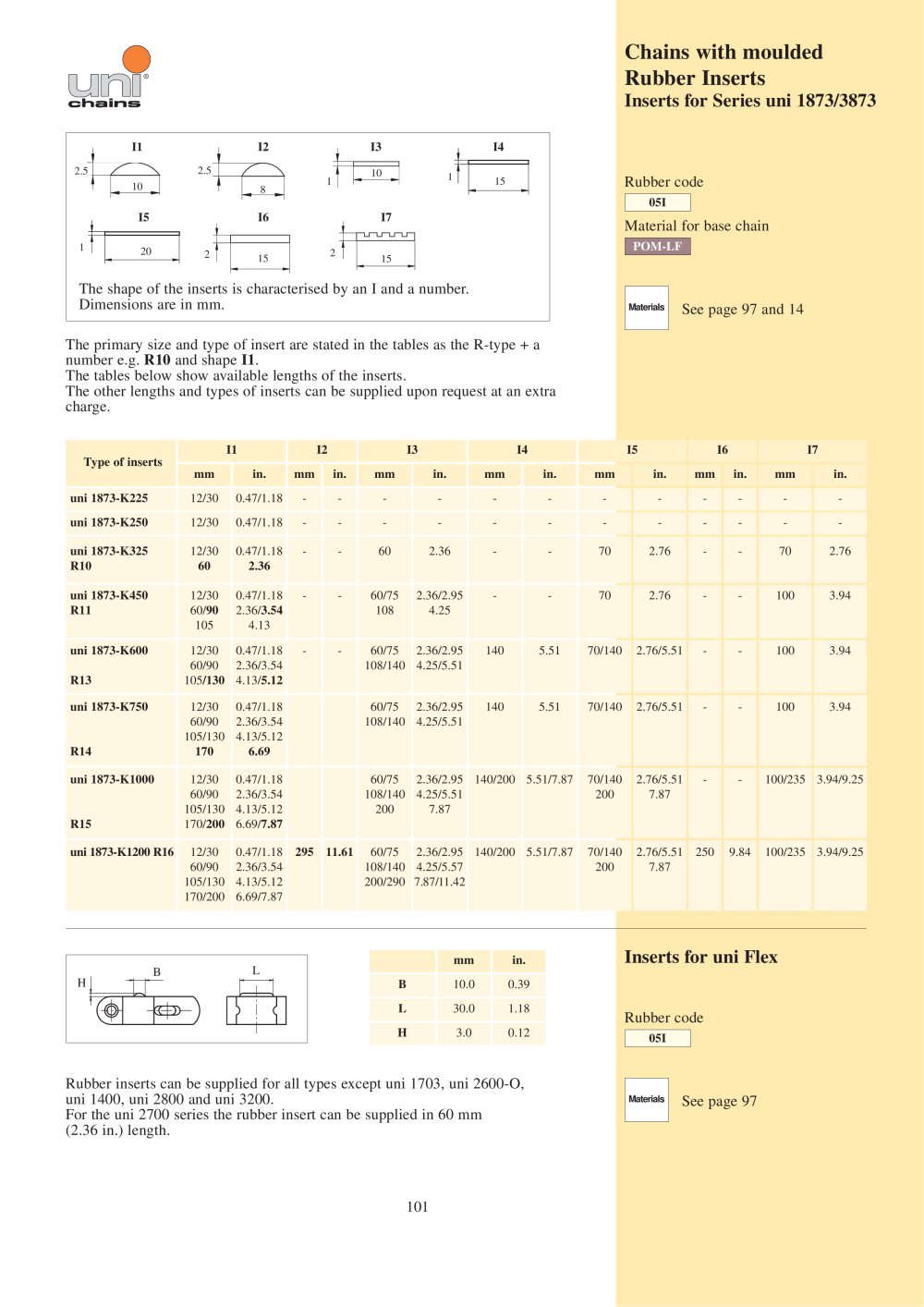

Chains with moulded
Rubber Inserts
Inserts for Series uni 1873/3873
Rubber code
05I "I
Material for base chain
POM-LF
See page 97 and 14
Materials
The primary size and type of insert are stated in the tables as the R-type + a
number e.g. R10 and shape I1.
The tables below show available lengths of the inserts.
The other lengths and types of inserts can be supplied upon request at an extra charge.
I1 I2 I3 I4 I5 I6 I7
Type of inserts
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
uni 1873-K225
12/30
0.47/1.18
-
-
-
-
-
-
-
-
-
-
-
-
uni 1873-K250
12/30
0.47/1.18
-
-
-
-
-
-
-
-
-
-
-
-
uni 1873-K325
R10
12/30
60
0.47/1.18
2.36
-
-
60
2.36
-
-
70
2.76
-
-
70
2.76
uni 1873-K450 R11
12/30
60/90 105
0.47/1.18 2.36/3.54 4.13
60/75 108
2.36/2.95 4.25
70
2.76
100
3.94
uni 1873-K600 R13
12/30 60/90 105/130
0.47/1.18 2.36/3.54 4.13/5.12
60/75 108/140
2.36/2.95 4.25/5.51
140
5.51
70/140
2.76/5.51
100
3.94
uni 1873-K750 R14
12/30 60/90 105/130
170
0.47/1.18 2.36/3.54 4.13/5.12
6.69
60/75 108/140
2.36/2.95 4.25/5.51
140
5.51
70/140
2.76/5.51
100
3.94
uni 1873-K1000 R15
12/30 60/90 105/130 170/200
0.47/1.18 2.36/3.54 4.13/5.12 6.69/7.87
60/75 108/140 200
2.36/2.95 4.25/5.51 7.87
140/200
5.51/7.87
70/140 200
2.76/5.51 7.87
100/235
3.94/9.25
uni 1873-K1200 R16 12/30 0.47/1.18 295 11.61 60/75 2.36/2.95 140/200 5.51/7.87 70/140 2.76/5.51 250 9.84 100/235 3.94/9.25
60/90 2.36/3.54 108/140 4.25/5.57 200 7.87
105/130 4.13/5.12 200/290 7.87/11.42
170/200 6.69/7.87
mm
in.
B
10.0
0.39
L
30.0
1.18
H
3.0
0.12
Inserts for uni Flex
B
Hi -|^|-—
L
1
r ! \
Rubber code
05I
Rubber inserts can be supplied for all types except uni 1703, uni 2600-O. uni 1400, uni 2800 and uni 3200.
For the uni 2700 series the rubber insert can be supplied in 60 mm (2.36 in.) length.
Materials
See page 97
