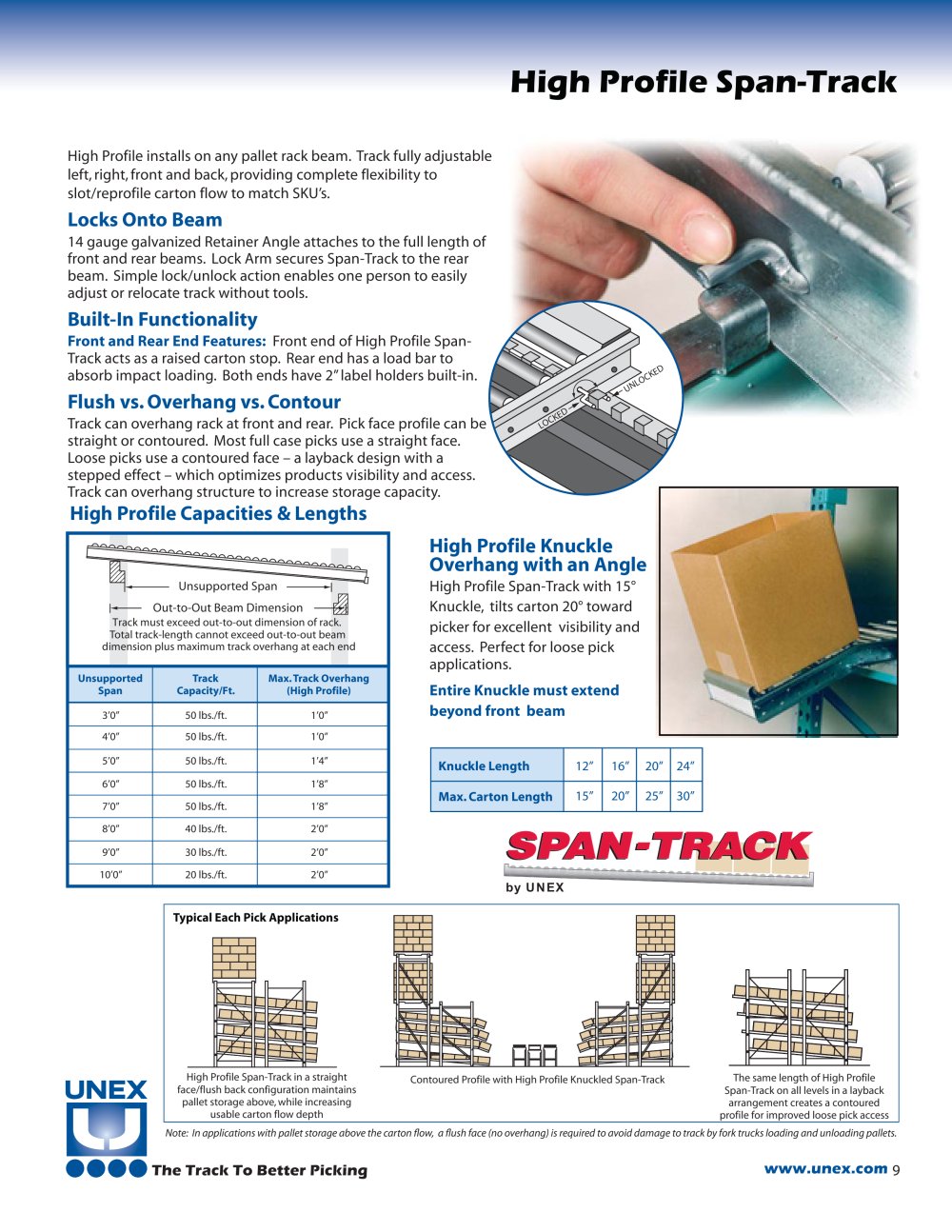

9 High Profile Span-Track High Profile installs on any pallet rack beam. Track fully adjustable left, right, front and back, providing complete flexibility to slot/reprofile carton flow to match SKU’s. Locks Onto Beam 14 gauge galvanized Retainer Angle attaches to the full length of front and rear beams. Lock Arm secures Span-Track to the rear beam. Simple lock/unlock action enables one person to easily adjust or relocate track without tools. Built-In Functionality Front and Rear End Features: Front end of High Profile Span- Track acts as a raised carton stop. Rear end has a load bar to absorb impact loading. Both ends have 2” label holders built-in. Flush vs. Overhang vs. Contour Track can overhang rack at front and rear. Pick face profile can be straight or contoured. Most full case picks use a straight face. Loose picks use a contoured face – a layback design with a stepped effect – which optimizes products visibility and access. Track can overhang structure to increase storage capacity. LOCKED UNLOCKED High Profile Knuckle Overhang with an Angle High Profile Span-Track with 15° Knuckle, tilts carton 20° toward picker for excellent visibility and access. Perfect for loose pick applications. Entire Knuckle must extend beyond front beam Knuckle Length 12” 16” 20” 24” Max. Carton Length 15” 20” 25” 30” Out-to-Out Beam Dimension Unsupported Span High Profile Capacities & Lengths Track must exceed out-to-out dimension of rack. Total track-length cannot exceed out-to-out beam dimension plus maximum track overhang at each end Unsupported Span Track Capacity/Ft. Max. Track Overhang (High Profile) 3’0” 50 lbs./ft. 1’0” 4’0” 50 lbs./ft. 1’0” 5’0” 50 lbs./ft. 1’4” 6’0” 50 lbs./ft. 1’8” 7’0” 50 lbs./ft. 1’8” 8’0” 40 lbs./ft. 2’0” 9’0” 30 lbs./ft. 2’0” 10’0” 20 lbs./ft. 2’0” The Track To Better Picking Contoured Profile with High Profile Knuckled Span-Track The same length of High Profile Span-Track on all levels in a layback arrangement creates a contoured profile for improved loose pick access High Profile Span-Track in a straight face/flush back configuration maintains pallet storage above, while increasing usable carton flow depth Note: In applications with pallet storage above the carton flow, a flush face (no overhang) is required to avoid damage to track by fork trucks loading and unloading pallets. Typical Each Pick Applications by UNEX www.unex.com
