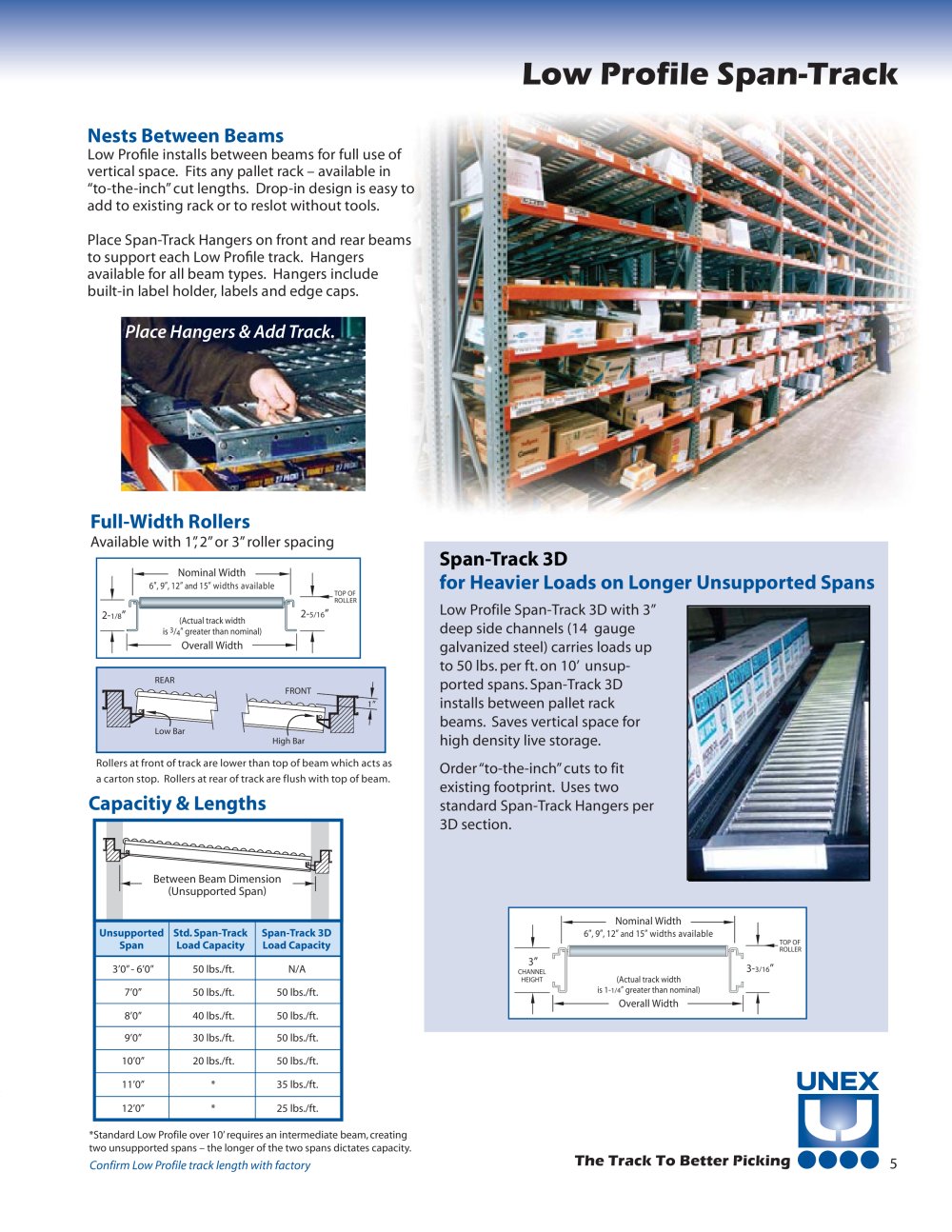

Low Profile Span-Track 5 (Actual track width is 3/4” greater than nominal) Overall Width 2-1/8” 2-5/16” Nominal Width 6”, 9”, 12” and 15” widths available TOP OF ROLLER *Standard Low Profile over 10’ requires an intermediate beam, creating two unsupported spans – the longer of the two spans dictates capacity. Capacitiy & Lengths Between Beam Dimension (Unsupported Span) Unsupported Span Std. Span-Track Load Capacity Span-Track 3D Load Capacity 3’0” - 6’0” 50 lbs./ft. N/A 7’0” 50 lbs./ft. 50 lbs./ft. 8’0” 40 lbs./ft. 50 lbs./ft. 9’0” 30 lbs./ft. 50 lbs./ft. 10’0” 20 lbs./ft. 50 lbs./ft. 11’0” * 35 lbs./ft. 12’0” * 25 lbs./ft. Confirm Low Profile track length with factory The Track To Better Picking Rollers at front of track are lower than top of beam which acts as a carton stop. Rollers at rear of track are flush with top of beam. Nests Between Beams Low Profile installs between beams for full use of vertical space. Fits any pallet rack – available in “to-the-inch” cut lengths. Drop-in design is easy to add to existing rack or to reslot without tools. Place Span-Track Hangers on front and rear beams to support each Low Profile track. Hangers available for all beam types. Hangers include built-in label holder, labels and edge caps. REAR Low Bar FRONT 1” High Bar Nominal Width 6”, 9”, 12” and 15” widths available 3” CHANNEL HEIGHT 3-3/16” TOP OF ROLLER (Actual track width is 1-1/4” greater than nominal) Overall Width Place Hangers & Add Track. Full-Width Rollers Available with 1”, 2” or 3” roller spacing Span-Track 3D for Heavier Loads on Longer Unsupported Spans Low Profile Span-Track 3D with 3” deep side channels (14 gauge galvanized steel) carries loads up to 50 lbs. per ft. on 10’ unsupported spans. Span-Track 3D installs between pallet rack beams. Saves vertical space for high density live storage. Order “to-the-inch” cuts to fit existing footprint. Uses two standard Span-Track Hangers per 3D section.
