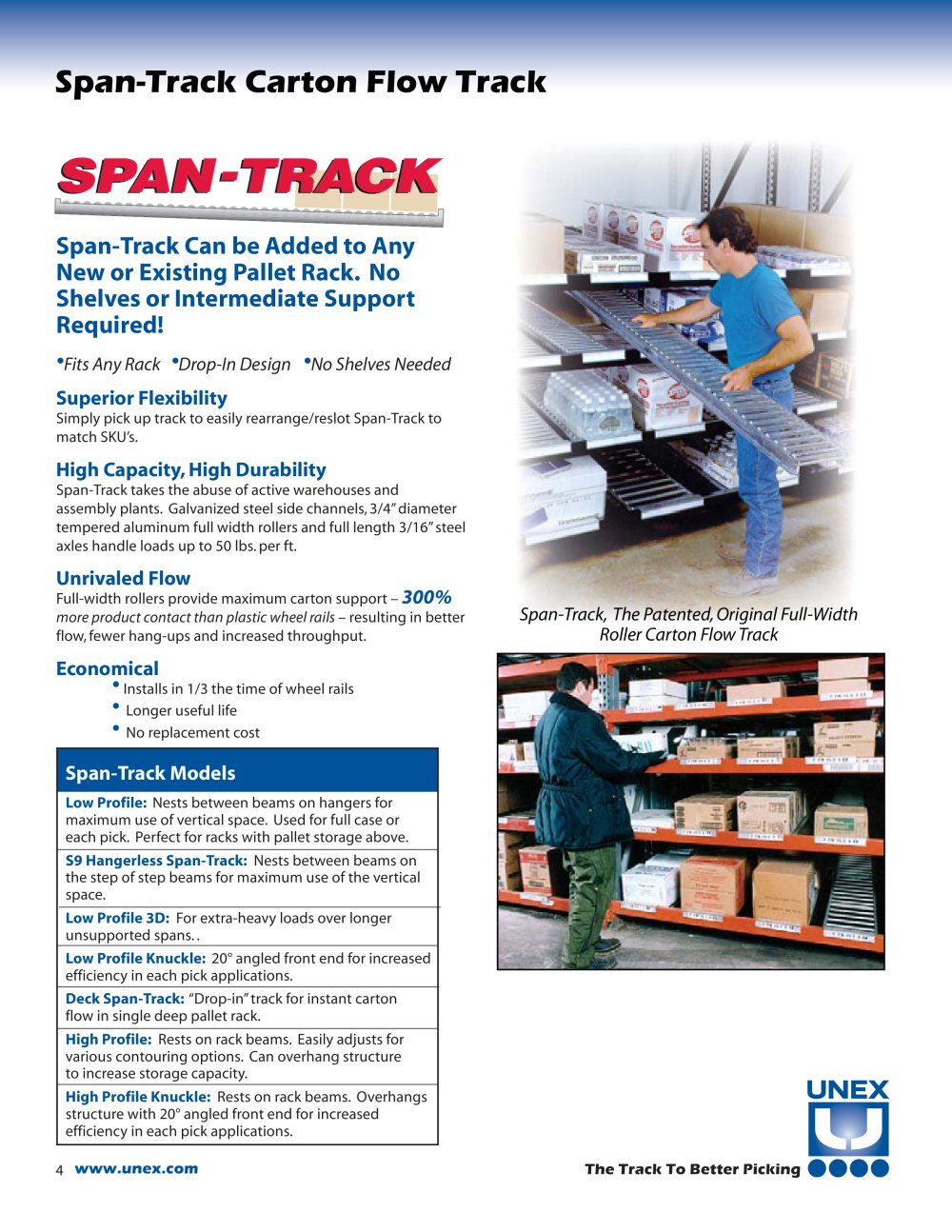

4 Span-Track Carton Flow Track Span-Track Can be Added to Any New or Existing Pallet Rack. No Shelves or Intermediate Support Required! •Fits Any Rack •Drop-In Design •No Shelves Needed Superior Flexibility Simply pick up track to easily rearrange/reslot Span-Track to match SKU’s. High Capacity, High Durability Span-Track takes the abuse of active warehouses and assembly plants. Galvanized steel side channels, 3/4” diameter tempered aluminum full width rollers and full length 3/16” steel axles handle loads up to 50 lbs. per ft. Unrivaled Flow Full-width rollers provide maximum carton support – 300% more product contact than plastic wheel rails – resulting in better flow, fewer hang-ups and increased throughput. Economical • Installs in 1/3 the time of wheel rails • Longer useful life • No replacement cost The Track To Better Picking Span-Track Models Low Profile: Nests between beams on hangers for maximum use of vertical space. Used for full case or each pick. Perfect for racks with pallet storage above. S9 Hangerless Span-Track: Nests between beams on the step of step beams for maximum use of the vertical space. Low Profile 3D: For extra-heavy loads over longer unsupported spans. . Low Profile Knuckle: 20° angled front end for increased efficiency in each pick applications. Deck Span-Track: “Drop-in” track for instant carton flow in single deep pallet rack. High Profile: Rests on rack beams. Easily adjusts for various contouring options. Can overhang structure to increase storage capacity. High Profile Knuckle: Rests on rack beams. Overhangs structure with 20° angled front end for increased efficiency in each pick applications. Span-Track, The Patented, Original Full-Width Roller Carton Flow Track www.unex.com
