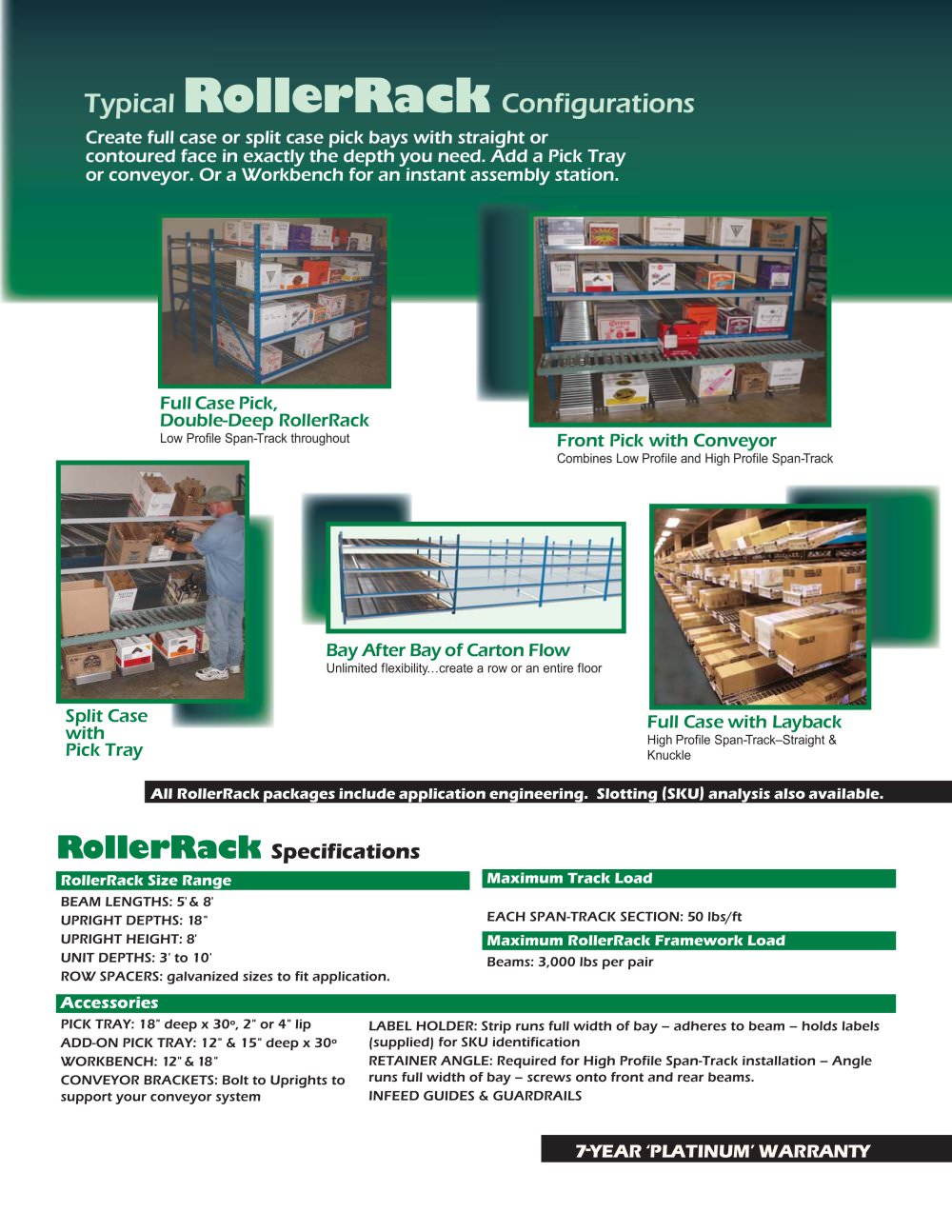

| | | Typical RollerRack Configurations | | |
| | | |
| | | Full Case Pick, Double-Deep RollerRack Low Profile Span-Track throughout | | |
| | | Front Pick with Conveyor Combines Low Profile and High Profile Span-Track | | |
| | | |
| | | |
| | | Bay After Bay of Carton Flow Unlimited flexibility...create a row or an entire floor | | |
| | | |
| | | Split Case with Pick Tray | | |
| | | Full Case with Layback High Profile Span-Track-Straight & Knuckle | | |
| | | |
| | | |
| | | All RollerRack packages include application engineering. Slotting (SKU) analysis also available. | | |
| | | |
| | | RollerRack Specifications | | |
| | | |
| | | MaximumTrack Load | | |
| | | RollerRack Size Range | | |
| | | |
| | | |
| | | BEAM LENGTHS: 5' & 8' UPRIGHT DEPTHS: 18" UPRIGHT HEIGHT: 8' UNIT DEPTHS: 3' to 10' ROW SPACERS: galvanized sizes to fit application. | | |
| | | EACH SPAN-TRACK SECTION: 50 lbs/ft | | |
| | | |
| | | Maximum RollerRack Framework Load | | |
| | | |
| | | Beams: 3,000 lbs per pair | | |
| | | |
| | | |
| | | Accessories | | |
| | | |
| | | PICK TRAY: 18" deep x 30°, 2" or 4" lip ADD-ON PICK TRAY: 12" & 15" deep x 30° WORKBENCH:12" & 18" CONVEYOR BRACKETS: Supplier of bolt to Uprights to support your conveyor system | | |
| | | LABEL HOLDER: Strip runs full width of bay - adheres to beam - holds labels (supplied) for SKU identification RETAINER ANGLE: Required for High Profile Span-Track installation - Angle runs full width of bay - screws onto front and rear beams. INFEED GUIDES & GUARDRAILS | | |
| | | |
| | | |
| | | 7-YEAR 'PLATINUM' WARRANTY | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
