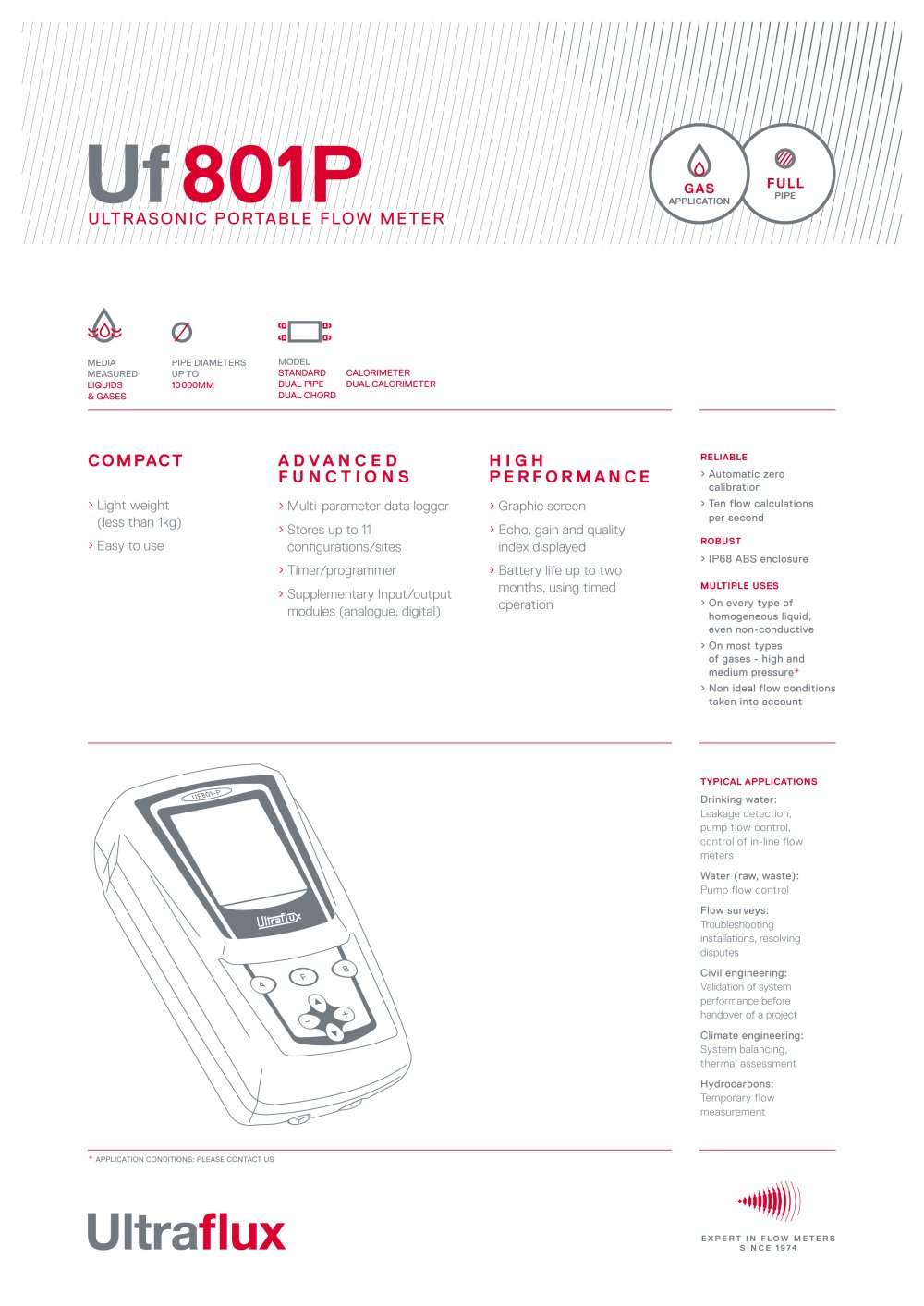

UF 801-P Ultrasonic portable flowmeter - ULTRAFLUX - #1

Text version of the page

The most advanced portable ultrasonic flowmeter available. Incorporating over 30 years of practical field experience the UF 801-P is the ideal portable flowmeter for your diagnosis and monitoring requirements. Featuring long battery life and clamp-on probe technology using the measurement principle (Transit Time ultrasonic) which has been Ultraflux’s speciality for over 30 years. User-friendly and ergonomic, UF 801-P is designed for ease of use with optimum performance. The UF 801-P uses Ultraflux’s Next Generation Digital Signal Processing (DSP), flows in a wide range of pipe sizes can be measured. The meter gives accurate, reliable results even under extreme measurement conditions. Versatile, diameters from 10 mm to 10 m, any liquid even non conductive, any pressure Non invasive external probes clamped-on to the pipe Easy and quick installation resulting in immediate measurement User friendly operation, set up by keypad or software Digital signal processing using multiple processors enhances response time Possible choice of configuration from previous saved sites Dual pipe version available Ultrasonic portable flowmeter Integral data logger, with over 6 months capacity at 2 min intervals Robust, watertight (IP67) control unit enclosure Very lightweight : less than 1 kg Battery life indicator Measuring accuracy : 0.5 % Probes available from -100°C to +200°C (pipe temperature) High technology probes for difficult applications Optional extra inputs/outputs Measurement processing using LS-801-P W software on PC .. .. .. .. .................. ................ .................. ................ ........ ........ ................................ .......... .......... ............ .......................... .................. .............. .... .... .. ...................... .................................... ........................ ...... .. .... .... .... .... ...... ...... UF 801-P
