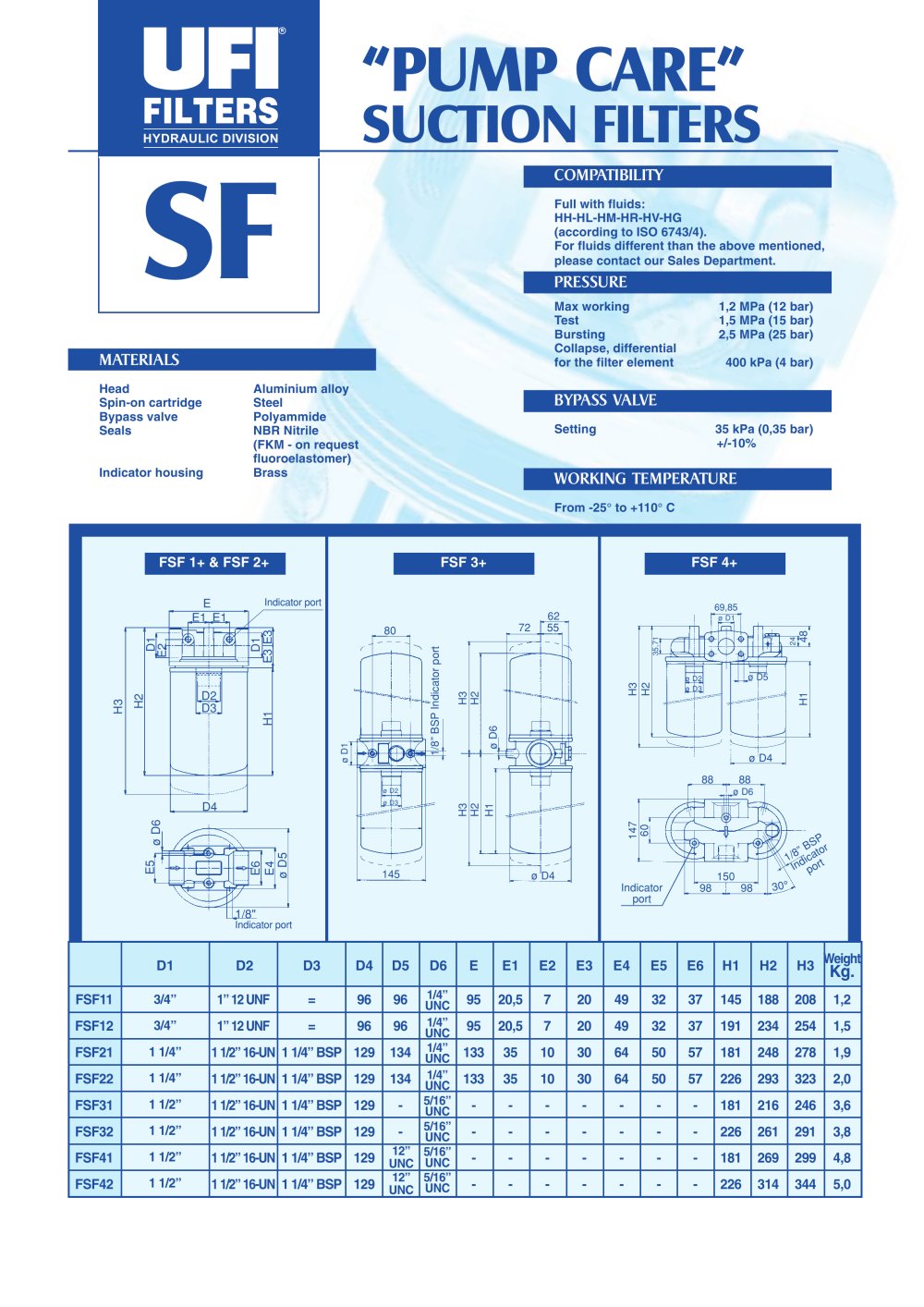

"PUMP CARE"
HYDRAULIC DIVISION
COMPATIBILITY
Full with fluids:
HH-HL-HM-HR-HV-HG
(according to ISO 6743/4).
For fluids different than the above mentioned,
please contact our Sales Department.
PRESSURE
Max working Test
Bursting
Collapse, differential for the filter element
1,2 MPa (12 bar) 1,5 MPa (15 bar) 2,5 MPa (25 bar)
400 kPa (4 bar)
MATERIALS
Head
Spin-on cartridge Bypass valve Seals
Aluminium alloy Steel
Polyammide NBR Nitrile (FKM - on request fluoroelastomer)
Brass
BYPASS VALVE
Setting
35 kPa (0,35 bar) +/-10%
Indicator housing
WORKING TEMPERATURE
From -25° to +110° C
FSF 1+ & FSF 2+
FSF 3+
FSF 4+
E
Indicator port
69,85
pus
62
ELEI
80
I o
i 8
B 35
CNJ I
D2
I
0 D4
88 ,„ 88
a 02
D4
145
I 1.1/8"
Indicator port
Weight
Kg.
D1
D2
D3
D4
D5
D6
E
E1
E2
E3
E4
E5
E6
H1
H2
H3
FSF11
3/4"
1" 12 UNF
=
96
96
1/4"
UNC
95
20,5
7
20
49
32
37
145
188
208
1,2
FSF12
3/4"
1" 12 UNF
=
96
96
1/4" UNC
95
20,5
7
20
49
32
37
191
234
254
1,5
FSF21
1 1/4"
1 1/2" 16-UN
1 1/4" BSP
129
134
1/4" UNC
133
35
10
30
64
50
57
181
248
278
1,9
FSF22
1 1/4"
1 1/2" 16-UN
1 1/4" BSP
129
134
1/4"
UNC
133
35
10
30
64
50
57
226
293
323
2,0
FSF31
1 1/2"
1 1/2" 16-UN
1 1/4" BSP
129
-
5/16"
UNC
-
-
-
-
-
-
-
181
216
246
3,6
FSF32
1 1/2"
1 1/2" 16-UN
1 1/4" BSP
129
-
5/16" UNC
-
-
-
-
-
-
-
226
261
291
3,8
FSF41
1 1/2"
1 1/2" 16-UN
1 1/4" BSP
129
12" UNC
5/16" UNC
-
-
-
-
-
-
-
181
269
299
4,8
FSF42
1 1/2"
1 1/2" 16-UN
1 1/4" BSP
129
12" UNC
5/16" UNC
-
-
-
-
-
-
-
226
314
344
5,0
