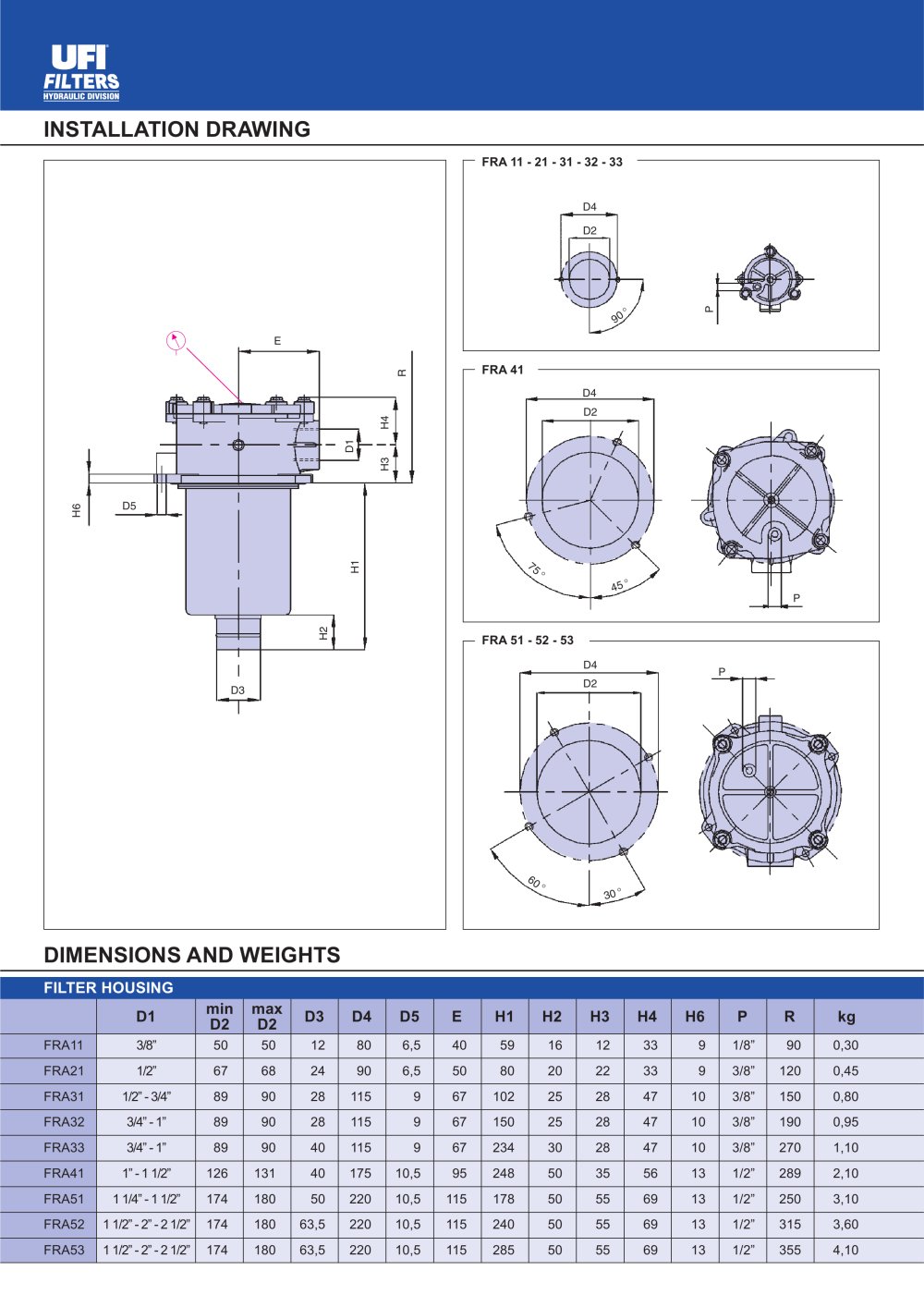

INSTALLATION DRAWING
FRA 11 - 21 - 31 - 32 - 33
D4
0.
FRA 51 - 52 - 53
D4
p
DIMENSIONS AND WEIGHTS
D1
min D2
max D2
D3
D4
D5
E
H1
H2
H3
H4
H6
P
R
kg
FRA11
3/8"
50
50
12
80
6,5
40
59
16
12
33
9
1/8"
90
0,30
FRA21
1/2"
67
68
24
90
6,5
50
80
20
22
33
9
3/8"
120
0,45
FRA31
1/2" - 3/4"
89
90
28
115
9
67
102
25
28
47
10
3/8"
150
0,80
FRA32
3/4" - 1"
89
90
28
115
9
67
150
25
28
47
10
3/8"
190
0,95
FRA33
3/4" - 1"
89
90
40
115
9
67
234
30
28
47
10
3/8"
270
1,10
FRA41
1" - 1 1/2"
126
131
40
175
10,5
95
248
50
35
56
13
1/2"
289
2,10
FRA51
1 1/4" - 1 1/2"
174
180
50
220
10,5
115
178
50
55
69
13
1/2"
250
3,10
FRA52
1 1/2" - 2" - 2 1/2"
174
180
63,5
220
10,5
115
240
50
55
69
13
1/2"
315
3,60
FRA53
1 1/2" - 2" - 2 1/2"
174
180
63,5
220
10,5
115
285
50
55
69
13
1/2"
355
4,10
