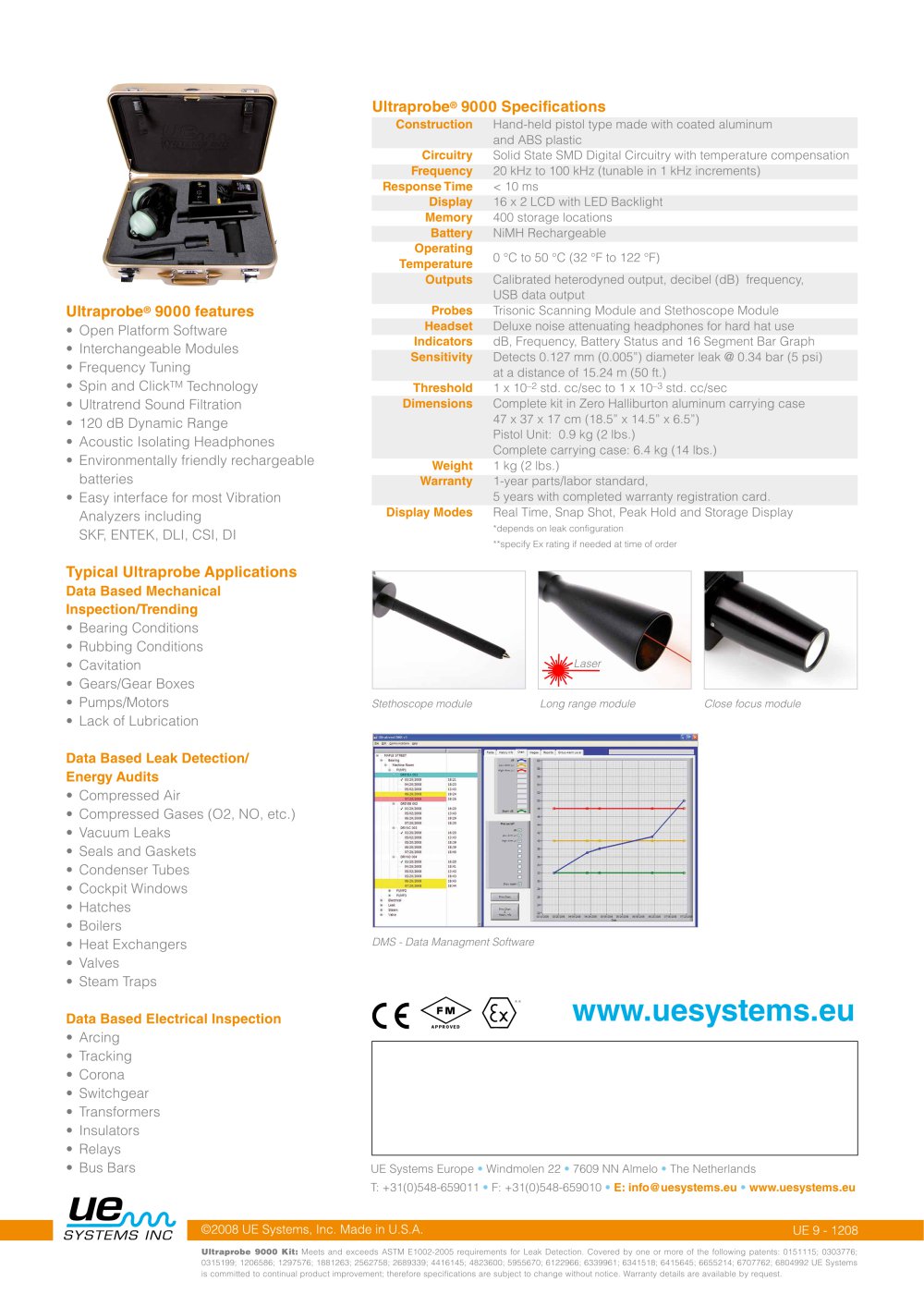

ULTRAPROBE09000 FEATURES: • Open Platform Software • Interchangeable Modules • Frequency Tuning • Spin and Click™ Technology • Ultratrend Sound Filtration • 120 dB Dynamic Range • Acoustic Isolating Headphones • Environmentally friendly rechargeable batteries • Easy interface for most Vibration Analyzers including SKF, ENTEK, DU, CSI, Dl Detect air leaks Inspect steam traps Typical Ultraprobe Applications Data Based Mechanical Inspection/Trending • Bearing Conditions • Rubbing Conditions • Cavitation • Gears/Gear Boxes • Pumps/Motors • Lack of Lubrication Data Based Leak Detection/Energy Audits • Compressée! Air • Compressed Gases (02, NO, etc.] • Vacuum Leaks • Seals and Gaskets • Condenser Tubes • Cockpit Windows • Hatches • Boilers • Heat Exchangers • Valves • Steam Traps Data Based Electrical Inspection • Arcing • Tracking • Corona • Switchgear • Transformers • Insulators • Relays • Bus Bars ULTRAPROBE9 9000 Spécifications Construction: Hand-held pistol type made with coated aluminum and ABS plastic Circuitry: Solid State SMD Digital Circuitry with température compensation Frequency Range: 20 kHz to 100 kHz (tunable in 1 kHz incréments) Response Time: < 10 ms Display: 16x2 LCD with LED Backlight Memory: 400 storage locations Battery: NiMH Rechargeable Operating Température: Outputs: 32°Fto 122°F(0°Cto 50°C) Calibrated heterodyned output, décibel (dB) frequency, USB data output Trisonic Scanning Module and Stéthoscope Module Deluxe noise attenuating headphones for hard hat use dB, Frequency, Battery Status and 16 Segment Bar Graph Detects .005" (.127 mm) diameter leak @ 5psi (.34 bar) at a distance of 50 ft. (15.24 m) 1 x 10~2 std. cc/sec to 1 x 10~3 std. cc/sec Complète kit in Zéro Halliburton aluminum carrying case 18.5" x 14.5" x 6.5" (47x37x 17 cm) Pistol Unit: 2 Ibs. (.9 kg) Complète carrying case: 14 Ibs. (6.4 kg) 2 Ibs. (1 kg) 1-year parts/labor standard, 5 years with completed warranty registration card. Probes: Headset: Indicators: Sensitivity: Threshold*: Dimensions: Weight: Warranty: Display Modes: Real Time, Snap Shot, Peak Hold and Storage Display *depends on leak configuration Ultraprobe 9000 Kit: Meets and exceeds ASTM E1002-2005 requirements for Leak Détection. Covered by one or more of the following patents: 0151115; 0303776; 0315199; 1206586; 1297576; 1881263; 2562758; 2689339; 4416145; 4823600; 5955670; 6122966; 6339961; 6341518; 6415645; 6655214; 6707762; 6804992 UE Systems is committed to continuai product improvement; therefore spécifications are subjectto change without notice. Warranty détails are available by request. ue AAA. 14 Hayes Street • Elmsford, NY 10523-2536 USA P: 914.592.1220 • F: 914.347.2181 • Toll-free: 1.800.223.1325 E: info@uesystems.com • WWW.UeSyStemS.COtn © 2007 UE Systems, Inc. Made in USA. UE 9 - 0507 SYSTEMS INC The ultrasound approach
