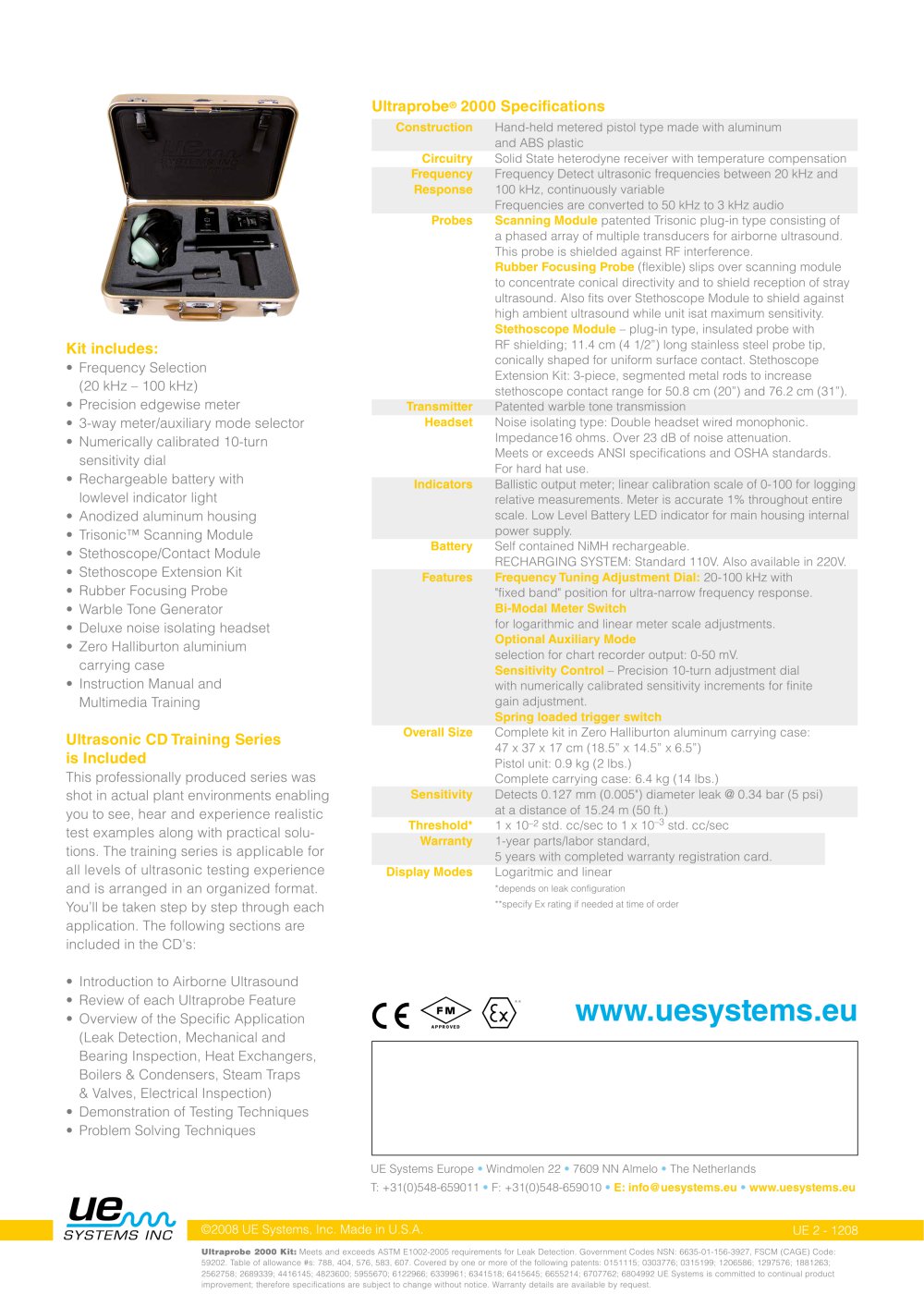

ULTRAPROBE® 2000 Application Sélection Chart APPLICATION KIT# UP2000KT UP2000SC UP2000C UP2000S Pressure & Vacuum Leak Détection ✓ Hydraulic Valve Bypass ✓ Exhaust System Leaks ✓ Heat Exchangers, Boilers, Condensers ✓ Valve & Steam Trap Inspection ✓ Bearing Testing ✓ Gear/Gear Box Inspection ✓ Cockpit Window/ Hatch Leaks ✓ General Mechanical Inspection ✓ Tanks, Pipes, Leak Testing, etc. ✓ Electrical Inspection ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ULTRAPROBE92000 Spécifications Ultrasonic CD Training Séries is Included This professionally produced séries was shot in actual plant environments enabling you to see, hear and expérience realistic test examples along with practical solutions. The training séries is applicable for ail levels of ultrasonic testing expérience and is arranged in an organized format You'll be taken step by step through each application. The following sections are included in the CDs: • Introduction to Airborne Ultrasound Review of each Ultraprobe Feature • Overview of the Spécifie Application (Leak Détection, Mechanical and Bearing Inspection, Heat Exchangers, Boilers & Condensera, Steam Traps & Valves, Electrical Inspection) Démonstration of Testing Techniques • Problem Solving Techniques Construction: Hand-held metered pistol type made with aluminum and ABS plastic Circuitry: Solid State hétérodyne receiver with température compensation Frequency Detect ultrasonic frequencies between 20 kHz and 100 kHz, continuously variable. Response: Frequencies are converted to 50 Hz to 3 kHz audio. Probes: Scanning Module patented Trisonic plug-in type consisting of a phased array of multiple transducers for airborne ultrasound. This probe is shielded against RF interférence. Rubber Focusing Probe (flexible) slips over scanning module to concentrate conical directivity and to shield réception of stray ultrasound. Also fits over Stéthoscope Module to shield against high ambient ultrasound while unit is at maximum sensitivity. Stéthoscope Module - plug-in type, insulated probe with RF shielding; 41/2" (11.4 cm) long stainless steel probe tip, conically shaped for uniform surface contact. Stéthoscope Extension Kit: 3-piece, segmented métal rods to increase stéthoscope contact range for 20" (50.8 cm) and 31" (766.2 cm). Transmitter: Patented warble tone transmission Headset: Noise isolating type: Double headset wired monophonie. Impedance16 ohms. Over 23 dB of noise atténuation. Meets or exceeds ANSI spécifications and OSHA standards. For hard hat use. Indicators: Ballistic output meter; linear calibration scale of 0-100 for logging relative measurements. Meter is accurate 1% throughout ervtire scale. Low Level Battery LED indicator for main housing internai power supply. Battery: Self contained NiMH rechargeable. RECHARGING SYSTEM: Standard 110V. Also available in 220V. Features: Frequency Tuning Adjustment Dial: 20-100 kHz with "fixed band" position for ultra-narrow frequency response. Bi-Modal Meter Switch for logarithmic and linear meter scale adjustments. Optional Auxiliary Mode sélection for chart recorder output: 0-50 mV. Sensitivity Control - Précision 10-turn adjustment dial with numerically calibrated sensitivity incréments for finite gain adjustment. Spring loaded trigger switch Overall Size: Complète kit in Zéro Halliburton aluminum carrying case: 18.5" x 14.5" x 6.5" (47x37x17 cm) Pistol unit: 2 Ibs. (.9 kg) Complète carrying case: 14 Ibs. (6.4 kg) Detects .005" (.127 mm) diameter leak @ 5 psi (.34 bar) at a distance of 50 fL (15.24 m) 1 x 10"2 std. cc/sec to 1 x 10"3 std. cc/sec 1-year parts/labor standard, 5 years with completed warranty registration card. Log and Lin *depends on leak configuration **specify Ex rating if needed attime of order. Ultraprobe 2000 Kit: Meets and exceeds ASTM El002-2005 requirements for Leak Détection. Government Codes NSN: 6635-01-156-3927, FSCM (CAGE) Code: 59202 Table of allowance #s: 788,404,576,583,607 Covered by one or more of the following patents: 0151115; 0303776; 0315199; 1206586; 1297576; 1881263; 2562758; 2689339; 4416145; 4823600; 5955670; 6122966; 6339961; 6341518; 6415645; 6655214; 6707762; 6804992 UE Systems is committed to continuai product improvement; therefore spécifications are subjectto change without notice. Warranty détails are available by request. 14 Hayes Street • Elmsford, NY 10523-2536 USA P: 914.592.1220 • F: 914.347.2181 • Toll-free: 1.800.223.1325 E: info@uesystems.com • WWW.U6SySt6mS.C0m © 2007 UE Systems, Inc. Made in USA. UE 2 - 0507 SYSTEMS INC The ultrasound approach
