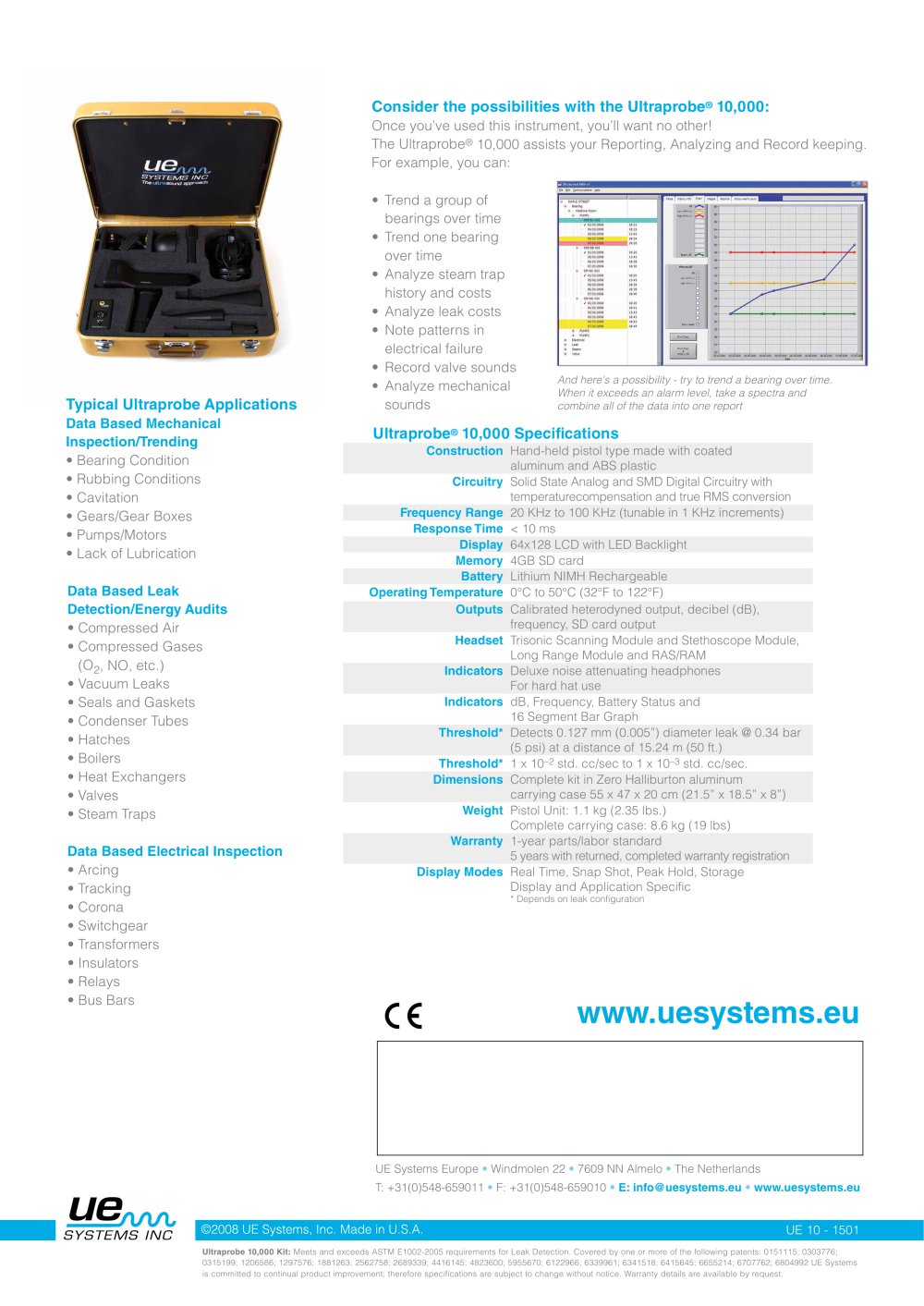

Consider the possibilîties with the ULTRAPROBE® 10,000: Once you've used this instrument, you'll want no other! The Ultraprobe 10,000 assists Reporting, Analyzing and Record keeping. For example, you can: • Trend a group of bearings overtime • Trend one bearing overtime • Analyze steam trap history and costs • Analyze leak costs • Note patterns in electrical failure • Record valve sounds • Analyze mechanical sounds... And hères a possibility-tryto trend a bearing mer time. When il exceeds an alarm level, take a spectra and combine ail ofthe data into one report 0 o o o o o o Typical Ultraprobe Applications Data Based Mechanical Inspection/Trending • Bearing Conditions • Rubbing Conditions • Cavitation • Gears/Gear Boxes • Pumps/Motors • Lack of Lubrication ULTRAPROBE® 10,000 Spécifications Construction: Hand-held pistol type made with coated aluminum and ABS plastic Circuitry: Solid State Analog and SMD Digital Circuitry with température compensation and true RMS conversion oooooooooooo Frequency Range: 20 kHz to 100 kHz (tunable in 1 kHz incréments) Response Time: < 10 ms Display: 64 x 128 LCD with LED Backlight Memory: 400 storage locations Battery: Lithium ION Rechargeable Data Based Leak Detection/Energy Audits • Compressed Air • Compressed Gases (02, NO, etc • Vacuum Leaks • Seals and Gaskets • Condenser Tubes • Cockpit Windows • Hatches • Boilers • Heat Exchangers • Valves • Steam Traps Data Based Electrical Inspection • Arcing • Tracking • Corona • Switchgear • Transformera • Insulators • Relays • Bus Bars Operating Température: Outputs: Probes: Headset: Indicators: Sensitivity: Threshold*: Dimensions: Weight: Warranty: Display Modes: 320Fto122°F(00Cto50°C) Calibrated heterodyned output, décibel (dB) frequency, RS-232 data output Trisonic Scanning Module and Stéthoscope Module, Long Range Module and RAS-MT Deluxe noise attenuating headphones - for hard hat use dB, Frequency, Battery Status and 16 Segment Bar Graph Detects .005" (.127 mm) diameter leak @ 5 psi (.34 bar) at a distance of 50 ft. (15.24 m) 1 x 10"z std. cc/sec to 1 x 10-3 std. cc/sec Complète kit in Zéro Halliburton aluminum carrying case 21.5" x 18.5" x 8" (55x47x20 cm) Pistol Unit: 2.35 Ibs. (1.1 kg) Complète carrying case: 19 Ibs. (8.6 kg) 1-year parts/labor standard, 5 years with completed warranty registration card Real Time, Snap Shot, Peak Hold, Storage Display, Ci and Application Spécifie *depends on leak configuration Ultraprobe 10,000 Kit: Meets and exceeds ASTM E1002-2005 requirements for Leak Détection. Covered by one or more of the following patents: 0151115; 0303776; 0315199; 1206586; 1297576; 1881263; 2562758; 2689339; 4416145; 4823600; 5955670; 6122966; 6339961; 6341518; 6415645; 6655214; 6707762; 6804992 UE Systems is committed to continuai product improvement; therefore spécifications are subjectto change without notice. Warranty détails are available by request. 14 Hayes Street • Elmsford, NY 10523-2536 USA P: 914*592.1220 • F: 914.347.2181 • Toll-free: 1.800.223.1325 E: info@uesystems.com • WWW.UeSyStemS.COrîl © B0O7 UE Systems, Inc. Made in USA. UE 10 - 0507 ue AAA, SYSTEMS INC The ultrasound approach
