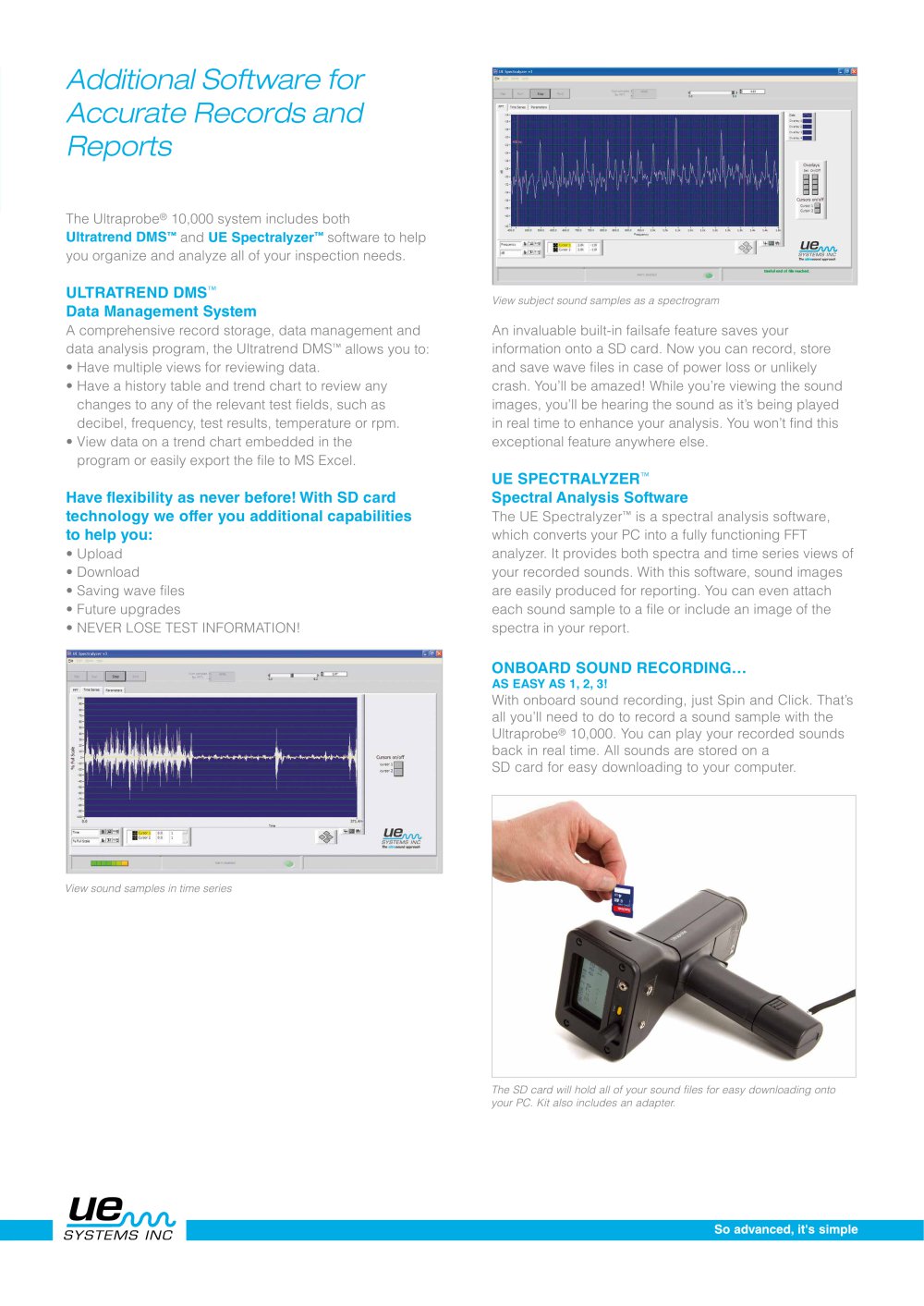

Data Management & Spectral Analysis Software for Accurate Recordlng 8k Reporting DATA VIEWS "h i * m i- T" m h- #»- tf m* 5-- û —* ZI"" View data by date The Ultraprobe 10,000 System includes both Ultratrend DMS™ and UE Spectralyzer™ software to help you organize and analyze inspection results. ULTRATREND DMS™ -Data Management System A comprehensive record storage, data management and data analysis program, the Ultratrend DMS allows you to: • Have multiple views for reviewing data. • Create history tables and trend charts to review any changes in any of the relevant test fields. • View data on a trend chart embedded in the program or easily export the file to MS Excel. • Generate alarm groups to highlight those items that can either be retested or designated for corrective action. NEW! Unsurpassed flexibility with CompactFlash Card Technology • NEVER LOSE TEST INFORMATION! An invaluable built-in failsafe feature saves information onto Compact Flash Cards. Nowyou can record, store and save wave files. Includes adapter. While viewing the sound images, you'll be hearing the sound as ifs being played in real time to enhance analysis. UE SPECTRALYZER™ -Spectral Analysis Software The UE Spectralyzer™ is a spectral analysis software, which converts a PC into a fully functioning FF analyzer. It provides both spectra and time séries views of recorded sounds. With this software, sound images are easily produced for reporting. You can even attach each sound sample to a file or include an image of the spectra in your report. Dote m- ïteMHï lnfc i 1 r 'A H 30 ■ 4r34M 30 ■ liMW M I2i»m » io «Ms 11:29 -■>•* 33 30 ■ K Et-l p ! ta l£ îtf .l'j- View data history and sort columns for analysis SOUND IMAGING I Additional capabilities to help you: • Upload ■ S-*iW^| fumé litu m* • Download • Store wave files • Upgrade Never lose information. The Compact Flash Card will hold ail sound files for easy downloading onto a PC Kitalso includes an adapter. Weiv subject sound samples as a spectrogram -a ONBOARD SOUND RECORDING...AS EASY AS 1,2,3! With onboard sound recording, just Spin and Click™. That's ail that's needed to record a sound sample with the Ultraprobe 10,000. Play sounds back in real time. Hear them through headphones or play them on your computer. Ail sounds are stored on a Compact Flash Card for easy downloading. Wew sound samples in time séries
