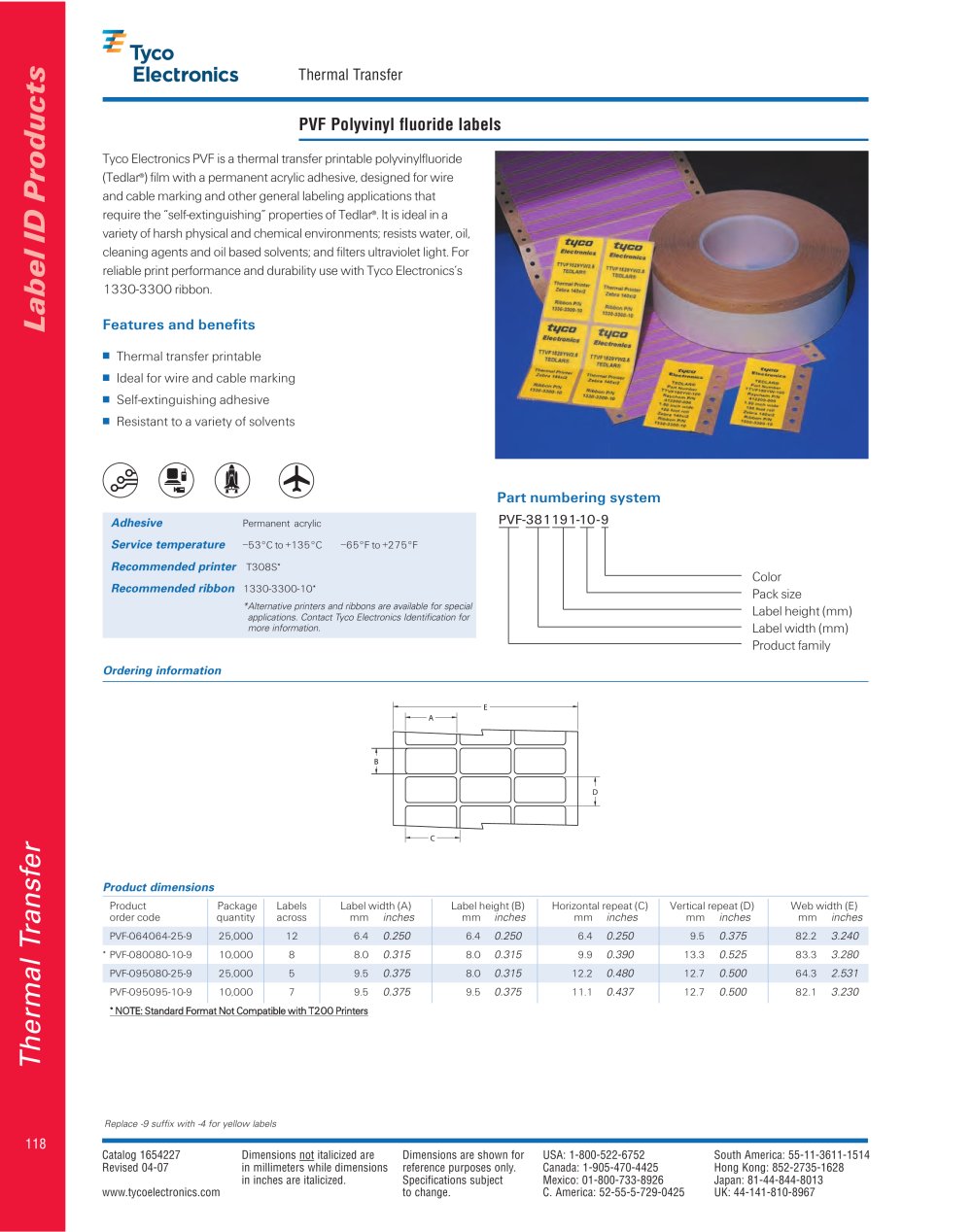

| | | Tyco Electronics | | |
| | | Thermal Transfer | | |
| | | |
| | | |
| | | PVF Polyvinyl fluoride labels | | |
| | | |
| | | Tyco Electronics PVF is a thermal transfer printable polyvinylfluoride (Tedlar®) film with a permanent acrylic adhesive, designed for wire and cable marking and other general industrial labeling applications that require the "self-extinguishing" properties of Tedlar®. It is ideal in a variety of harsh physical and chemical environments; resists water, oil, cleaning agents and oil based solvents; and filters ultraviolet light. For reliable print performance and durability use with Tyco Electronics's 1330-3300 ribbon. Features and benefits ■ Thermal transfer printable ■ Ideal for wire and cable marking ■ Self-extinguishing adhesive ■ Resistant to a variety of solvents | | |
| | | 0) | | |
| | | |
| | | |
| | | PVF-381191-10-9 | | |
| | | | | | | | | | Adhesive | Permanent acrylic | | | | Service temperature | -53°C to +135°C -65°F to +275°F | | | | Recommended printer | T308S* | | | | Recommended ribbon | 1330-3300-10* | | | | | *Alternative printers and ribbons are available for special | | | | | applications. Contact Tyco Electronics Identification for | | | | | more information. | | | | | | | | | |
| | | |
| | | Color Pack size Label height (mm) Label width (mm) Product family | | |
| | | |
| | | |
| | | Orderinginformation | | |
| | | |
| | | | | |
| | | |
| | | --c | | |
| | | |
| | | Product dimensions | | |
| | | |
| | | | | | | | | | | | | | | | Product order code | Package quantity | Labels across | Label width (A) mm inches | Label height (B) mm inches | Horizontal repeat (C) mm inches | Vertical repeat (D) mm inches | Web width (E) mm inches | | | | PVF064064-25-9 * PVF080080-10-9 PVF095080-25-9 | 25,000 10,000 25,000 | 12 8 5 | 6.4 0.250 8.0 0.315 9.5 0.375 | 6.4 0.250 8.0 0.315 8.0 0.315 | 6.4 0.250 9.9 0.390 12.2 0.480 | 9.5 0.375 13.3 0.525 12.7 0 500 | 82.2 3.240 83.3 3.280 64.3 2 531 | | | | PVF095095-10-9 * NOTE: Standard Form | 10,000 at Not Comp | 7 atible with T2 | 9.5 0.375 00 Printers | 9.5 0.375 | 11.1 0.437 | 12.7 0.500 | 82.1 3.230 | | | | | | | | | | | | | | | |
| | | |
| | | Replace -9 suffix with -4 for yellow labels | | |
| | | |
| | | 118 | | |
| | | |
| | | Catalog 1654227 Revised 04-07 www.tycoelectronics.com | | Dimensions not italicized are in millimeters while dimensions in inches are italicized. | | Dimensions are shown for reference purposes only. Specifications subject to change. | | USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926 C. America: 52-55-5-729-0425 | | South America: 55-11-3611-1514 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-141-810-8967 | | |
| | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
