Tyco
Electronics
Printers

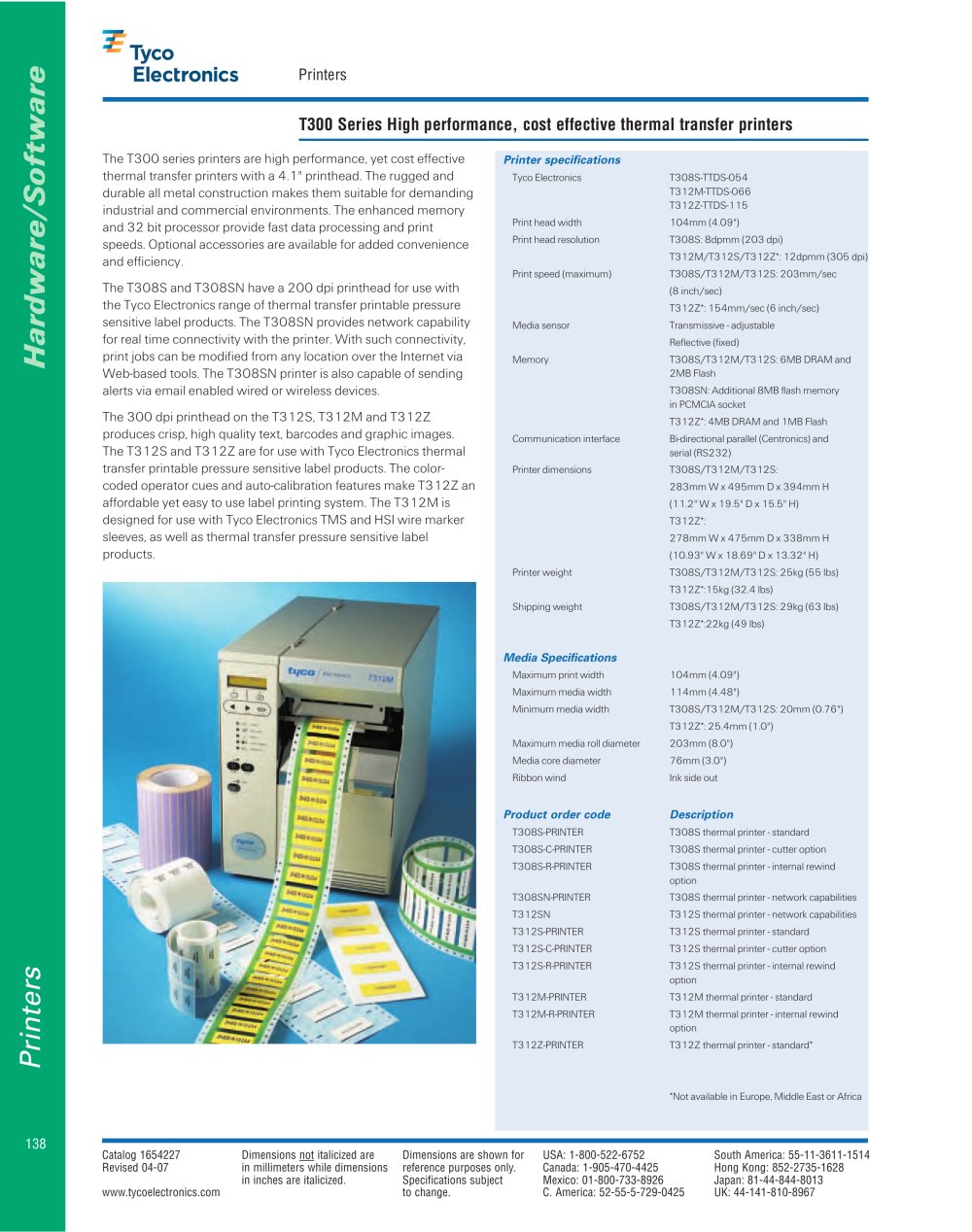

T300 Series High performance, cost effective thermal transfer printers
Printer specifications
Tyco Electronics
T308S-TTDS-054
T312M-TTDS-066
T312Z-TTDS-115
Print head width
104mm (4.09")
Print head resolution
T308S: 8dpmm (203 dpi)
T312M/T312S/T312Z*: 12dpmm (305 dpi)
Print speed (maximum)
T308S/T312M/T312S: 203mm/sec
(8 inch/sec)
T312Z*: 154mm/sec (6 inch/sec)
Media sensor
Transmissive - adjustable
Reflective (fixed)
Memory
T308S/T312M/T312S: 6MB DRAM and
2MB Flash
T308SN: Additional 8MB flash memory
in PCMCIA socket
T312Z*: 4MB DRAM and 1MB Flash
Communication interface
Bi-directional parallel (Centronics) and
serial (RS232)
Printer dimensions
T308S/T312M/T312S:
283mm W x 495mm D x 394mm H
(11.2" W x 19.5" D x 15.5" H)
T312Z*:
278mm W x 475mm D x 338mm H
(10.93" W x 18.69" D x 13.32" H)
Printer weight
T308S/T312M/T312S: 25kg (55 lbs)
T312Z*:15kg (32.4 lbs)
Shipping weight
T308S/T312M/T312S: 29kg (63 lbs)
T312Z*:22kg (49 lbs)
Media Specifications
Maximum print width
104mm (4.09")
Maximum media width
114mm (4.48")
Minimum media width
T308S/T312M/T312S: 20mm (0.76")
T312Z*: 25.4mm (1.0")
Maximum media roll diameter
203mm (8.0")
Media core diameter
76mm (3.0")
Ribbon wind
Ink side out
Product order code
Description
T308S-PRINTER
T308S thermal printer - standard
T308S-C-PRINTER
T308S thermal printer - cutter option
T308S-R-PRINTER
T308S thermal printer - internal rewind
option
T308SN-PRINTER
T308S thermal printer - network capabilities
T312SN
T312S thermal printer - network capabilities
T312S-PRINTER
T312S thermal printer - standard
T312S-C-PRINTER
T312S thermal printer - cutter option
T312S-R-PRINTER
T312S thermal printer - internal rewind
option
T312M-PRINTER
T312M thermal printer - standard
T312M-R-PRINTER
T312M thermal printer - internal rewind
option
T312Z-PRINTER
T312Z thermal printer - standard*
*Not available in Europe, Middle East or Africa
The T300 series printers are high performance, yet cost effective thermal transfer printers with a 4.1" printhead. The rugged and durable all metal construction makes them suitable for demanding industrial and commercial environments. The enhanced memory and 32 bit processor provide fast data processing and print speeds. Optional accessories are available for added convenience and efficiency.
The T308S and T308SN have a 200 dpi printhead for use with the Tyco Electronics range of thermal transfer printable pressure sensitive label products. The T308SN provides network capability for real time connectivity with the printer. With such connectivity, print jobs can be modified from any location over the Internet via Web-based tools. The T308SN printer is also capable of sending alerts via email enabled wired or wireless devices.
The 300 dpi printhead on the T312S, T312M and T312Z produces crisp, high quality text, barcodes and graphic images. The T312S and T312Z are for use with Tyco Electronics thermal transfer printable pressure sensitive label products. The color-coded operator cues and auto-calibration features make T312Z an affordable yet easy to use label printing system. The T312M is designed for use with Tyco Electronics TMS and HSI wire marker sleeves, as well as thermal transfer pressure sensitive label products.
Dimensions are shown for reference purposes only. Specifications subject to change.
South America: 55-11-3611-1514 Hong Kong: 852-2735-1628 Japan: 81-44-844-8013 UK: 44-141-810-8967
Catalog 1654227 Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are in millimeters while dimensions in inches are italicized.
USA: 1-800-522-6752 Canada: 1-905-470-4425 Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
