Single Pad Adapters - Twin Disc - #2

For nearly a century, we've been putting horsepower to work by designing, engineering and manufacturing rugged-duty industrial products. Our products and our reputation are bolted to the most renowned engine manufacturers and equipment OEMs in the world. Our mission is to make your machines and vehicles more productive, more durable, more operator-friendly, more cost-effective. From design and installation consultation through after­sale support, Twin Disc and its distributors are committed to your business. No one knows more about managing horsepower in more ways than Twin Disc.

TRANSMISSIONS • CLUTCHES • PTOS PUMP DRIVES • TORQUE CONVERTERS GEARBOXES • HYDRAULIC PTO PRODUCTS

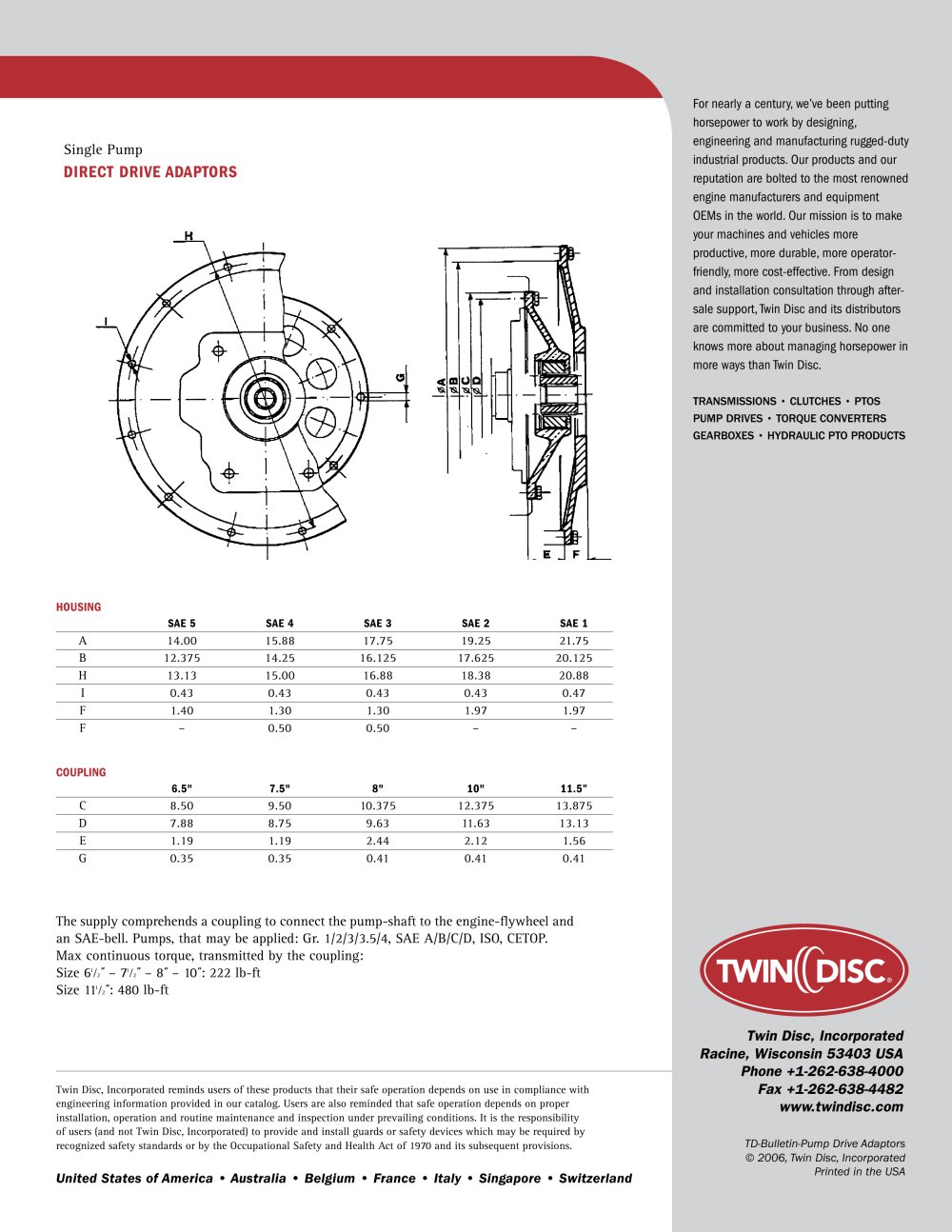

Single Pump

kinilCINft

The supply comprehends a coupling to connect the pump-shaft to the engine-flywheel and an SAE-bell. Pumps, that may be applied: Gr. 1/2/3/3.5/4, SAE A/B/C/D, ISO, CETOP. Max continuous torque, transmitted by the coupling: Size 672" - 772" - 8" - 10": 222 lb-ft Size ir/2": 480 lb-ft

Twin Disc, Incorporated reminds users of these products that their safe operation depends on use in compliance with Fax +1-262-638-4482

engineering information provided in our catalog. Users are also reminded that safe operation depends on proper www twindisc com

installation, operation and routine maintenance and inspection under prevailing conditions. It is the responsibility of users (and not Twin Disc, Incorporated) to provide and install guards or safety devices which may be required by

recognized safety standards or by the Occupational Safety and Health Act of 1970 and its subsequent provisions. TD-Bulletin-Pump Drive Adaptors
