Twin Disc Power Take-Offs

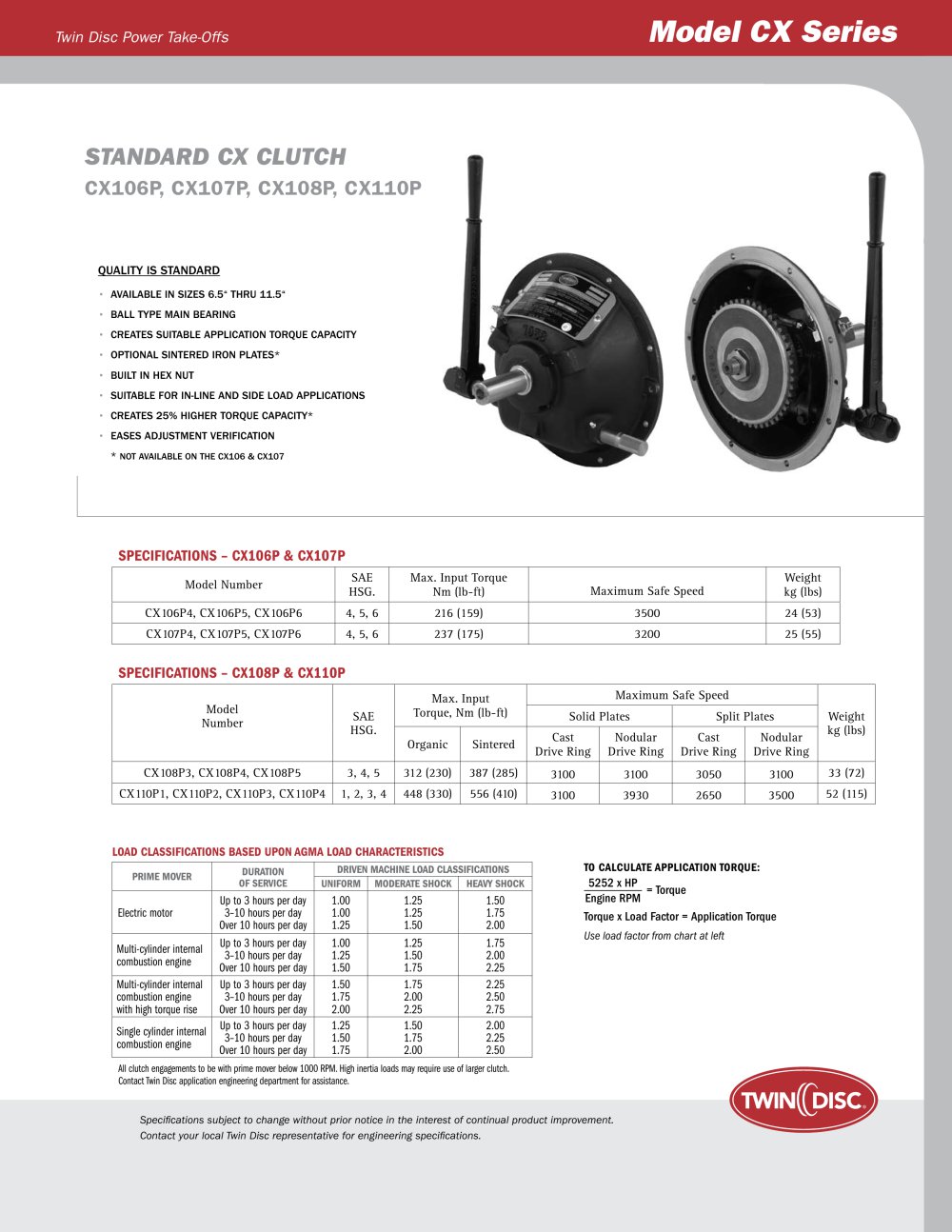

CX CLUTCH - 16941 Model CX Series STANDARD CX CLUTCH

CX106P, CX107P, CX108P, CX110P

QUALITY IS STANDARD

• AVAILABLE IN SIZES 6.5“ THRU 11.5“ • BALL TYPE MAIN BEARING • CREATES SUITABLE APPLICATION TORQUE CAPACITY • OPTIONAL SINTERED IRON PLATES* • BUILT IN HEX NUT • SUITABLE FOR IN-LINE AND SIDE LOAD APPLICATIONS • CREATES 25% HIGHER TORQUE CAPACITY* • EASES ADJUSTMENT VERIFICATION *
NOT AVAILABLE ON THE CX106 & CX107

SPECIFICATIONS – CX106P & CX107P

Model NumberSAEHSG.Max. Input TorqueNm (lb-ft)Maximum Safe SpeedWeightkg (lbs)CX106P4, CX106P5, CX106P64, 5, 6216 (159)350024 (53)CX107P4, CX107P5, CX107P64, 5, 6237 (175)320025 (55)

SPECIFICATIONS – CX108P & CX110P

ModelNumberSAEHSG.Max. InputTorque, Nm (lb-ft)Maximum Safe SpeedWeightkg (lbs)Solid PlatesSplit PlatesOrganicSinteredCastDrive RingNodularDrive RingCastDrive RingNodularDrive RingCX108P3, CX108P4, CX108P53, 4, 5312 (230)387 (285)310031003050310033 (72)CX110P1, CX110P2, CX110P3, CX110P41, 2, 3, 4448 (330)556 (410)310039302650350052 (115) LOAD CLASSIFICATIONS BASED UPON AGMA LOAD CHARACTERISTICS

TO CALCULATE APPLICATION TORQUE:

PRIME MOVERDURATIONOF SERVICEDRIVEN MACHINE LOAD CLASSIFICATIONSUNIFORMMODERATE SHOCKHEAVY SHOCK

5252 x HPEngine RPM = Torque Electric motorUp to 3 hours per day 3–10 hours per day Over 10 hours per day1.00 1.00 1.251.25 1.25 1.501.50 1.75 2.00Multi-cylinder internal combustion engineUp to 3 hours per day 3–10 hours per day Over 10 hours per day1.00 1.25 1.501.25 1.50 1.751.75 2.00 2.25Multi-cylinder internal combustion engine with high torque riseUp to 3 hours per day 3–10 hours per day Over 10 hours per day1.50 1.75 2.001.75 2.00 2.252.25 2.50 2.75Single cylinder internal combustion engineUp to 3 hours per day 3–10 hours per day Over 10 hours per day1.25 1.50 1.751.50 1.75 2.002.00 2.25 2.50 Torque x Load Factor = Application Torque

Use load factor from chart at left

All clutch engagements to be with prime mover below 1000 RPM. High inertia loads may require use of larger clutch. Contact Twin Disc application engineering department for assistance. Specifications subject to change without prior notice in the interest of continual product improvement.Contact your local Twin Disc representative for engineering specifications.
