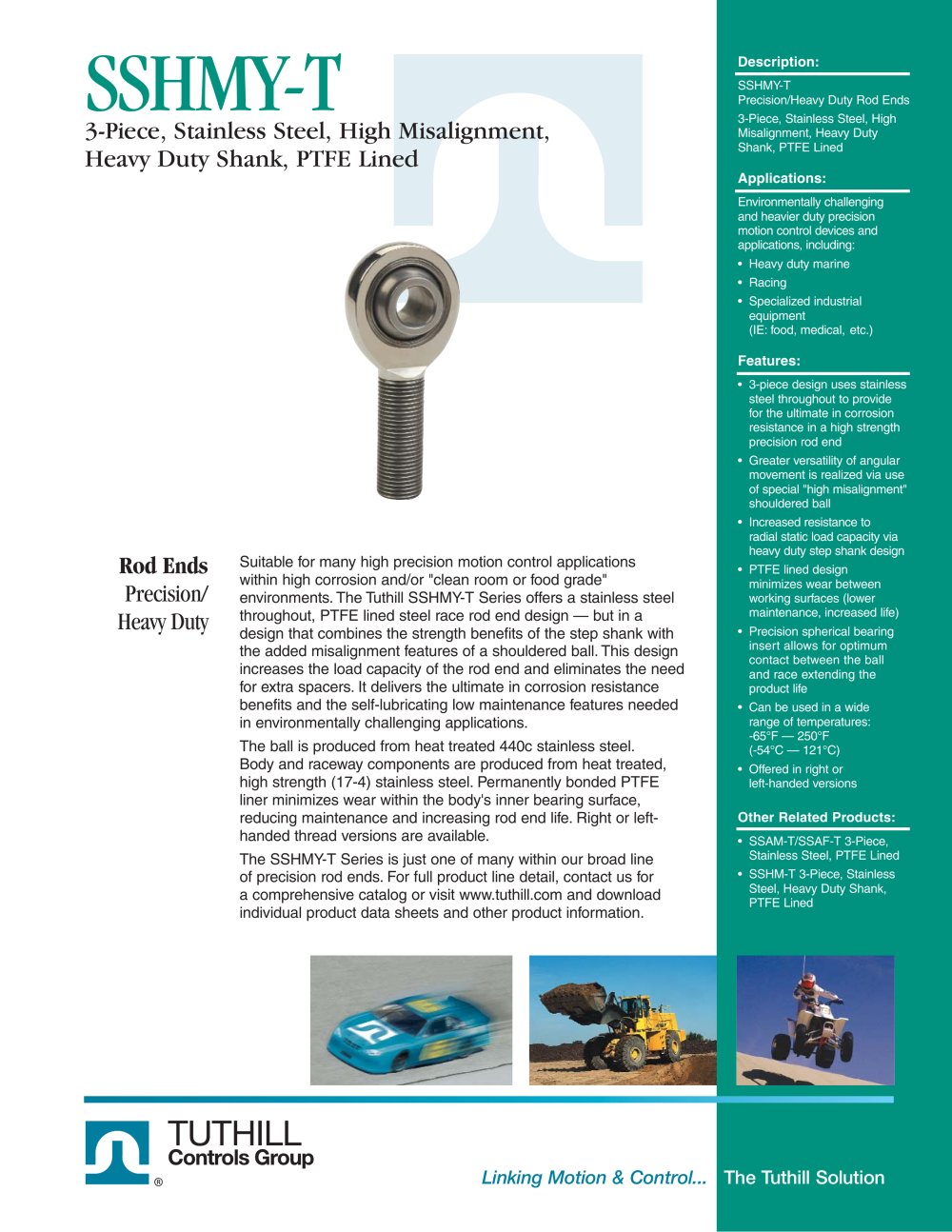

3-Piece, Stainless Steel, High Misalignment,Heavy Duty Shank, PTFE Lined SSHMY-T
Description:
SSHMY-T Precision/Heavy Duty Rod Ends3-Piece, Stainless Steel, HighMisalignment, Heavy Duty
Shank, PTFE Lined
Applications:
Environmentally challenging and heavier duty precision
motion control devices and
applications, including:•Heavy duty marine
•Racing
•Specialized
industrial equipment (IE:food, medical, etc.)
Features:
• 3-piece design uses stainless steel throughout to provide for the ultimate in corrosion resistance in a high strength precision rod end•Greater versatility of angular movement is realized via use
of special "high misalignment"
shouldered ball•Increased resistance to radial static load capacity via heavy duty step shank design•PTFE lined design minimizes wear between working surfaces (lower maintenance, increased life)•Precision
spherical bearing insert allows for optimum contact between the ball and race extending the
product life•Can be used in a wide range of temperatures:
-65°F — 250°F (-54°C — 121°C)•Offered in right or left-handed versions
Suitable for many high precision motion control applications within high corrosion and/or "clean room or food grade" environments.The Tuthill SSHMY-T Series offers a stainless steel
throughout, PTFE lined steel race rod end design — but in a
design that combines the strength benefits of the step shank with
the added misalignment features of a shouldered ball.This design
increases the load capacity of the rod end and eliminates the need
for extra spacers.It delivers the ultimate in corrosion resistance benefits and the self-lubricating low maintenance features needed
in environmentally challenging applications.The ball is produced from heat treated 440c stainless steel.Body and raceway components are produced from heat treated, high strength (17-4) stainless steel.Permanently bonded PTFE
liner minimizes wear within the body's inner bearing surface,
reducing maintenance and increasing rod end life.Right or left-
handed thread versions are available.The SSHMY-T Series is just one of many within our broad line of precision rod ends.For full product line detail, contact us for a comprehensive catalog or visit www.tuthill.com and download
individual product data sheets and other product information.
Precision/Heavy Duty
Other Related Products:
•SSAM-T/SSAF-T 3-Piece, Stainless Steel, PTFE Lined•SSHM-T 3-Piece, Stainless Steel, Heavy Duty Shank, PTFE Lined
