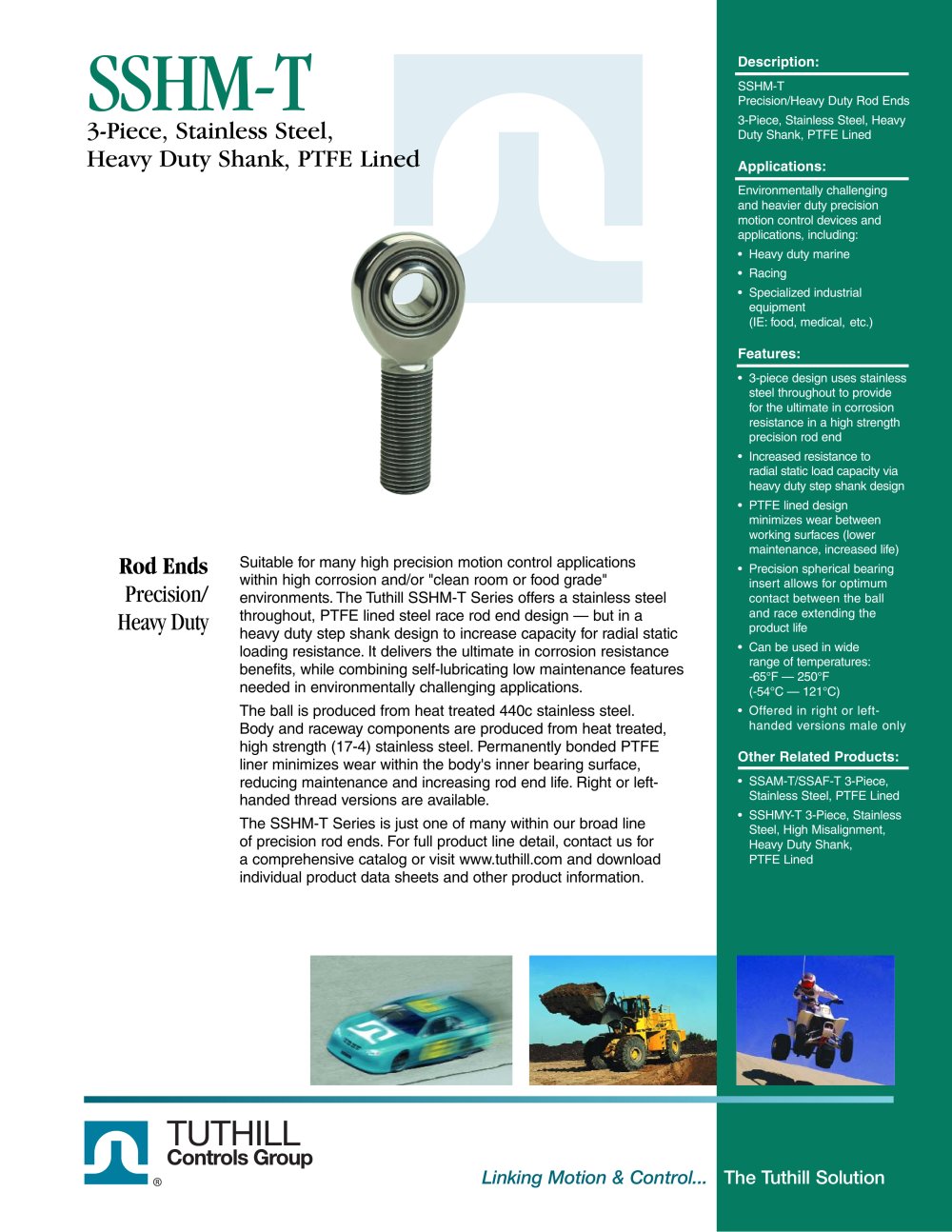

3-Piece, Stainless Steel, Heavy Duty Shank, PTFE Lined
SSHM-T
Description:
SSHM-T Precision/Heavy Duty Rod Ends3-Piece, Stainless Steel, HeavyDuty Shank, PTFE Lined
Applications:
Environmentally challenging
and heavier duty precision
motion control devices and
applications, including:•Heavy duty marine
•Racing
•Specialized
industrial equipment (IE:food, medical, etc.)
Features:
•3-piece design uses stainless steel throughout to provide for the ultimate in corrosion resistance in a high strength precision rod end•Increased resistance to radial static load capacity via heavy duty step shank design•PTFE lined design minimizes wear between working surfaces (lower maintenance, increased life)•Precision
spherical bearing manufacturer insert allows for optimum contact between the ball and race extending the
product life•Can be used in wide range of temperatures:
-65°F — 250°F (-54°C — 121°C)•Offered in right or left-handed versions male only
Suitable for many high precision motion control applications within high corrosion and/or "clean room or food grade" environments.The Tuthill SSHM-T Series offers a stainless steel
throughout, PTFE lined steel race rod end design — but in a
heavy duty step shank design to increase capacity for radial static loading resistance.It delivers the ultimate in corrosion resistance
benefits, while combining self-lubricating low maintenance features
needed in environmentally challenging applications.The ball is produced from heat treated 440c stainless steel.Body and raceway components are produced from heat treated,
high strength (17-4) stainless steel.Permanently bonded PTFE
liner minimizes wear within the body's inner bearing surface, reducing maintenance and increasing rod end life.Right or left-
handed thread versions are available.The SSHM-T Series is just one of many within our broad line of precision rod ends.For full product line detail, contact us for a comprehensive catalog or visit www.tuthill.com and download individual product data sheets and other product information.
Precision/Heavy Duty
Other Related Products:
•SSAM-T/SSAF-T 3-Piece, Stainless Steel, PTFE Lined•SSHMY-T 3-Piece, StainlessSteel, High Misalignment, Heavy Duty Shank,
PTFE Lined
