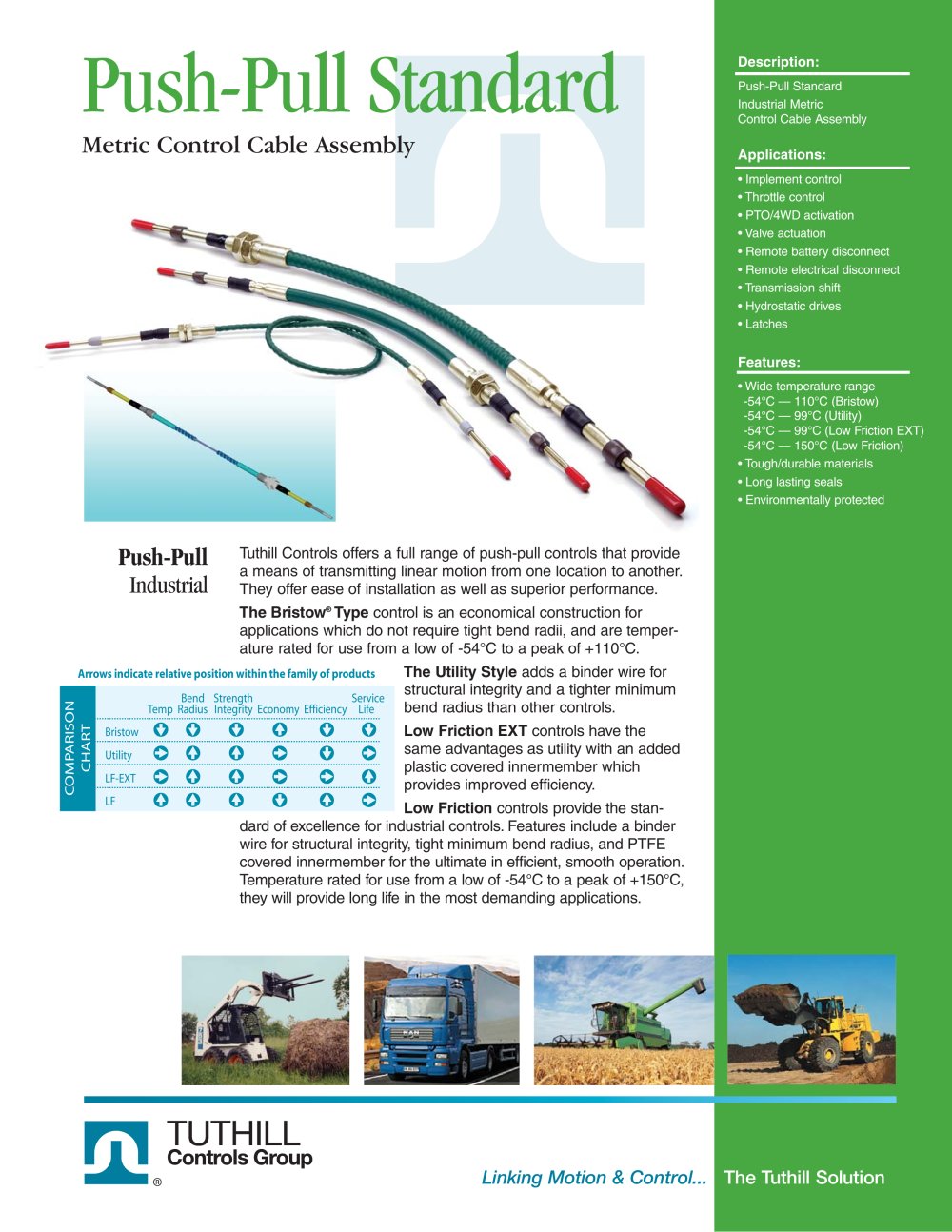

Push-Pull Standard
Description: Push-Pull Standard Industrial MetricControl Cable Assembly Applications: • Implement control• Throttle control
• PTO/4WD activation
• Valve actuation• Remote battery disconnect• Remote electrical disconnect
• Transmission shift
• Hydrostatic drives
• Latches Features: • Wide temperature range-54°C — 110°C (Bristow)
-54°C — 99°C (Utility)
-54°C — 99°C (Low Friction EXT)
-54°C — 150°C (Low Friction)• Tough/durable materials
• Long lasting seals
• Environmentally protected Push-Pull
Tuthill Controls offers a full range of push-pull controls that providea means of transmitting
linear motion from one location to another.
They offer ease of installation as well as superior performance.
Industrial
The Bristow
® Type control is an economical construction for applications which do not require tight bend radii, and are temper-
ature rated for use from a low of -54°C to a peak of +110°C. The Utility Style adds a binder wire forstructural integrity and a tighter minimum
bend radius than other controls. Low Friction EXT
Arrows indicate relative position within the family of products Low Friction controls provide the stan-dard of excellence for industrial controls.Features include a binder
wire for structural integrity, tight minimum bend radius, and PTFE
covered innermember for the ultimate in efficient, smooth operation.
Temperature rated for use from a low of -54°C to a peak of +150°C,
they will provide long life in the most demanding applications. controls have thesame advantages as utility with an added
plastic covered innermember which provides improved efficiency.
Bend Strength Service Temp Radius Integrity Economy Efficiency Life Bristow Utility
LF-EXT
LF COMPARISON CHART Linking Motion & Control... The Tuthill Solution
