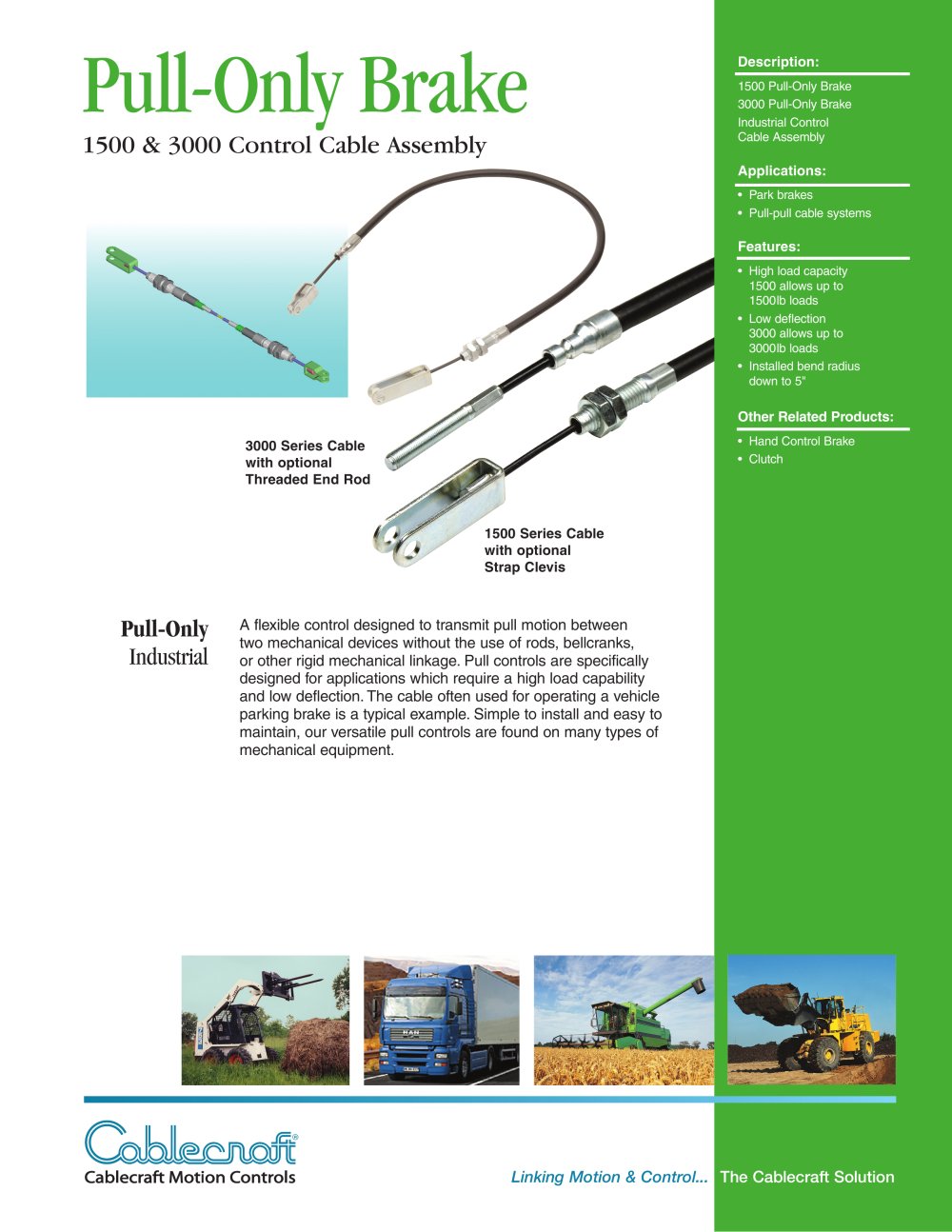

Pull-Only Brake 1500 & 3000 Control Cable Assembly Description: 1500 Pull-Only Brake 3000 Pull-Only Brake Industrial Control Cable Assembly Applications: • Park brakes • Pull-pull cable systems Features: • High load capacity 1500 allows up to 1500lb loads • Low deflection 3000 allows up to 3000lb loads • Installed bend radius down to 5" Other Related Products: • Hand Control Brake • Clutch 3000 Series Cable with optional Threaded End Rod 1500 Series Cable with optional Strap Clevis Pull-Only Industrial A flexible control designed to transmit pull motion between two mechanical devices without the use of rods, bellcranks, or other rigid mechanical linkage. Pull controls are specifically designed for applications which require a high load capability and low deflection. The cable often used for operating a vehicle parking brake is a typical example. Simple to install and easy to maintain, our versatile pull controls are found on many types of mechanical equipment. Linking Motion & Control... The Cablecraft Solution

Pull-Only Brake 1500lb Series L DIMENSION A DIMENSION CONDUIT END FITTING Ultimate Load: 1500lb Minimum Bend Radius: 5؆ .17 DIA OVER COVER CONDUIT: PLASTIC LINER .48 DIA STEEL FLAT WIRE INTERNAL SEAL PLASTIC COVERED (ALL CONDUIT CAPS) INNERMEMBER: .125 DIA 1x19 STEEL STRAND NYLON COVERED Grooved End Fittings .28 .56 DIA 1.69 .15 1.75 .65 MAX .75 .39 DIA .75 DIA .068 1.37 .50 .17 .50 DIA 2.00 1.13 .51 .30 .65 MAX .17 R x .38 ROOT DIA PART NO. 062 .71 DIA .61 DIA PART NO. 064 MATCHING SNAP RING PART NO. 175-435-025 .65 MAX .38 .65 DIA .50 DIA .49 DIA .44 DIA .61 DIA 1.12 DIA .49 DIA 1.12 PART NO....

Pull-Only Brake Order Code Material Industrial Pull-Only Brake • Carbon Steel and Plastic Suggested End Fittings • All 1500 & 3000lb Brake Cable Fittings • Rod Ends • Clevises To specify a pull-only brake, the following information must be given in the order listed: 1. Left innermember end fitting part number. 2. Left conduit end fitting part number. 3. Length “A” between conduit fitting reference points in inches. 4. Right conduit end fitting part number. 5. Right innermember end fitting part number. Linking Motion & Control... The Cablecraft Solution 6. Length “L” of innermember assembly between...
