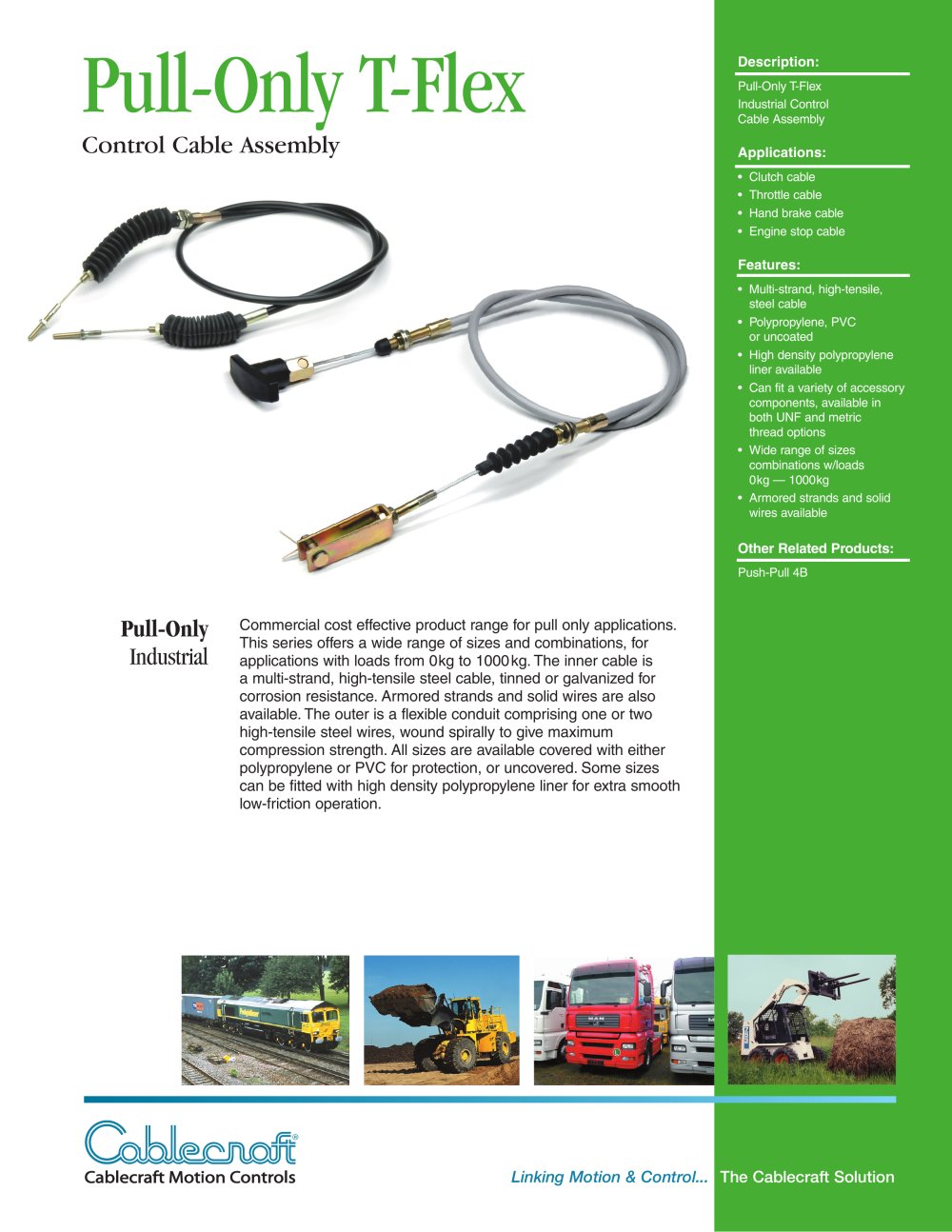

Pull-Only T-Flex
Description:
Pull-Only T-FlexIndustrial Control Cable Assembly >
Applications:
• Clutch cable•Throttle cable
•Hand brake cable
•Engine stop cable >
Features:
• Multi-strand, high-tensile, steel cable•Polypropylene, PVC or uncoated•High density polypropylene liner available•Can fit a variety of accessorycomponents, available in both UNF and metric thread options•Wide range of sizescombinations w/loads 0kg — 1000kg•Armored strands and solid wires available >
Other Related Products:
Push-Pull 4B >
Pull Only
Commercial cost effective product range for pull only applications.This series offers a wide range of sizes and combinations, for
applications with loads from 0kg to 1000kg.The inner cable is a multi-strand, high-tensile steel cable, tinned or galvanized for corrosion resistance.Armored strands and solid wires are also
available.The outer is a flexible conduit comprising one or two
high-tensile steel wires, wound spirally to give maximum compression strength.All sizes are available covered with either
polypropylene or PVC for protection, or uncovered.Some sizes
can be fitted with high density polypropylene liner for extra smooth
low-friction operation.
Industrial
Linking Motion & Control... The Tuthill Solution
